Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- If the location of the emblem/nameplate has not been marked apply tape.
- Warm the pickup box surface with a heat gun J 25070
152 mm (6.0 in) from the surface to a minimum of 21°C (70°F).IMPORTANT: Do not touch the adhesive backing of the emblem/nameplate.
- Remove the backing from the front end of the emblem/nameplate.

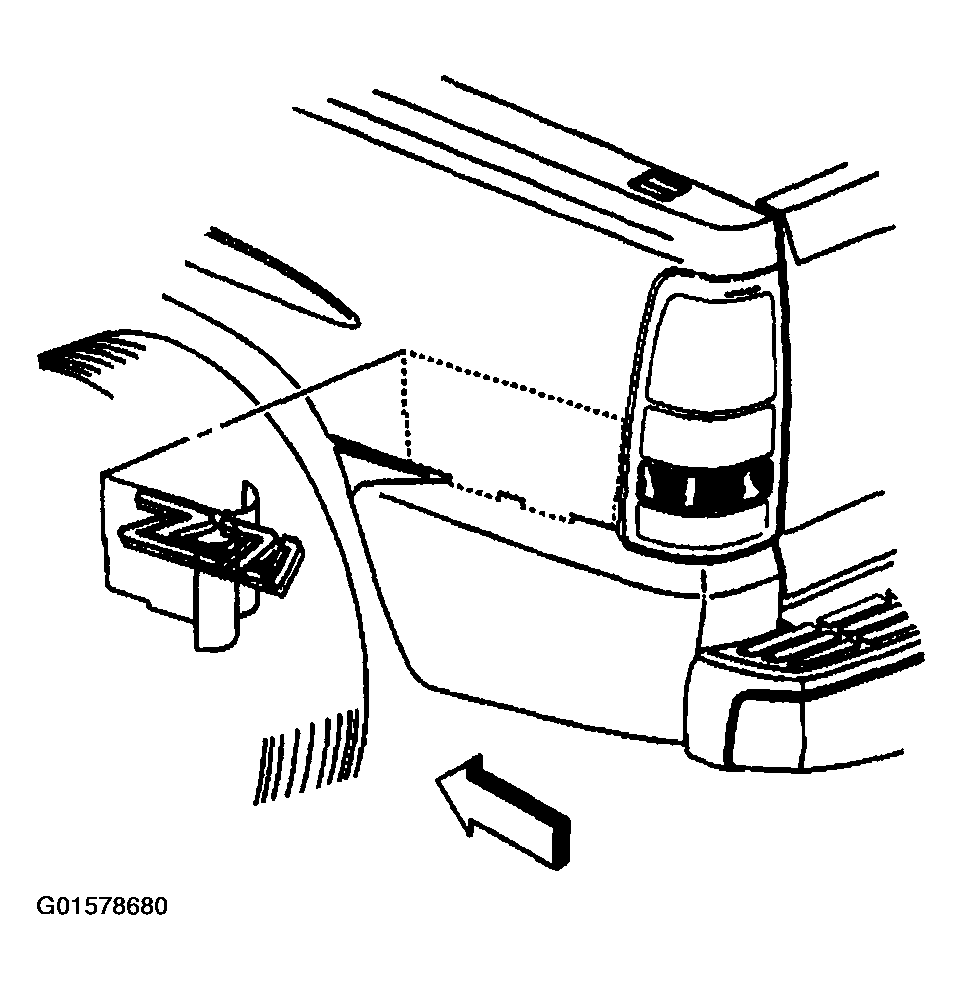

- Press the emblem/nameplate to the pickup box panel surface while continuing to remove the backing.
- Hand roll the emblem/nameplate to the pickup box panel to ensure proper adhesion.
- Inspect the emblem/nameplate for bonding.
- Remove the tape from the area around the pickup box emblem.
