Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Use the tape for protection and alignment marks for alignment of the new emblem.
  1. Apply tape to the area around the endgate emblem.
  2. Heat the emblem/nameplate, using a heat gun J 25070  152 mm (6.0 in) from the surface.
  3. Apply the heat using a circular motion for about 30 seconds.
    NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
  4. Remove the emblem/nameplate from the endgate surface using a plastic, flat-bladed tool.
  5. Remove all adhesive from the endgate panel surface and the back of the emblem/nameplate using 3M™ scotch brite molding adhesion remover disk 3M™ P/N 07501 or equivalent.
  6. Clean the endgate surface using varnish makers and painters (VMP) naptha.

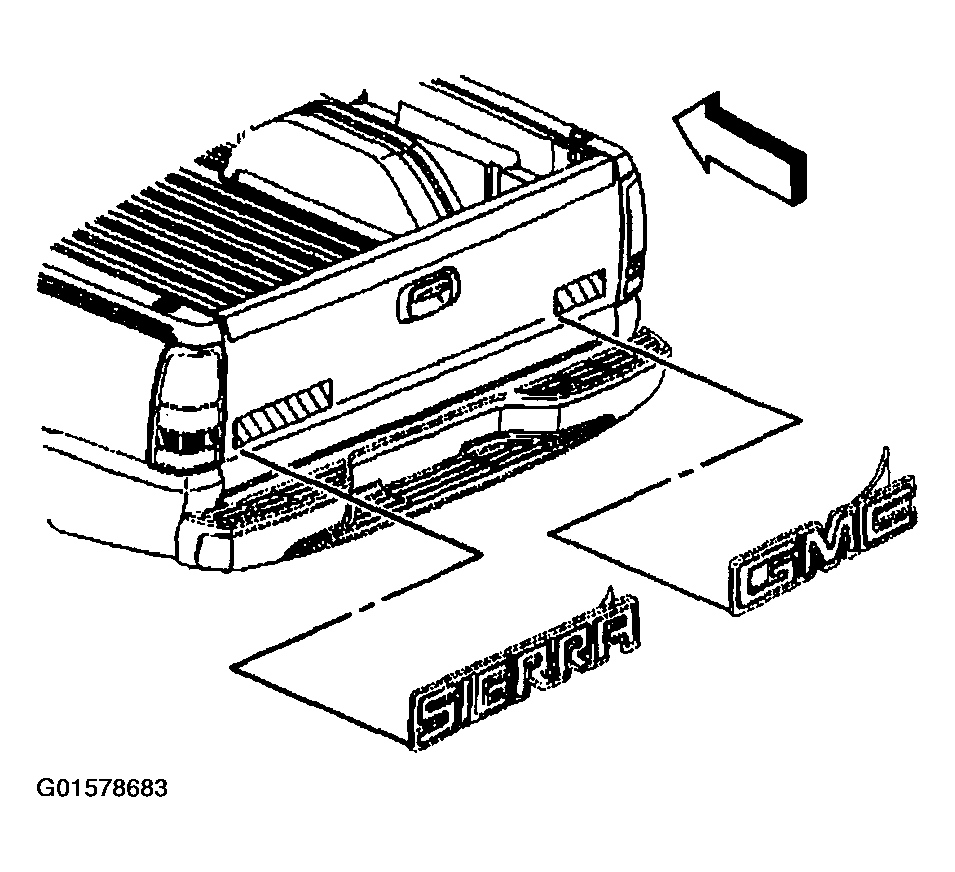

    Fig 1: End Gate Emblem/Nameplate
    G01578683Courtesy of GENERAL MOTORS CORP.
