Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the location of the emblem/nameplate has not been marked apply tape.
  2. Warm the endgate surface with a heat gun J 25070  152 mm (6.0 in) from the surface to a minimum of 21°C (70°F).
    IMPORTANT: Do not touch the adhesion backing of the emblem/nameplate.
  3. Remove the backing from the front end of the emblem/nameplate.
  4. Press the emblem/nameplate to the endgate panel surface while continuing to remove the backing.
  5. Hand roll the emblem/nameplate to the endgate panel to ensure proper adhesion.
  6. Inspect the emblem/nameplate for bonding.
  7. Remove the tape from the area around the endgate emblem.

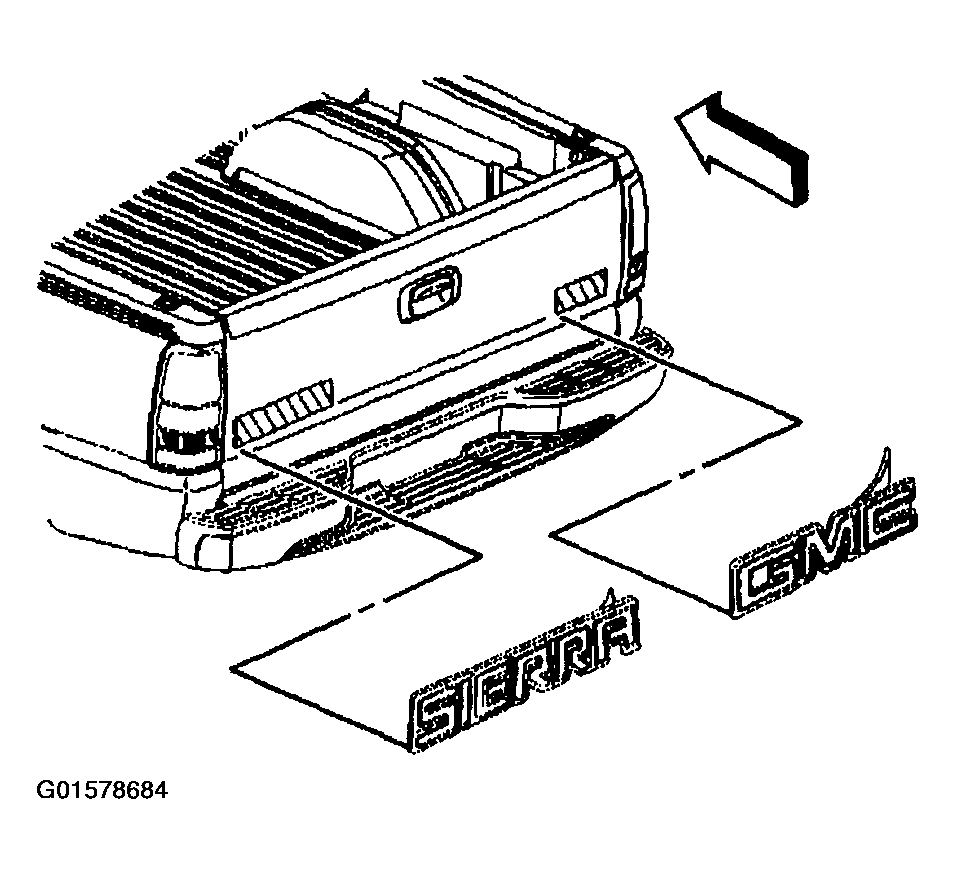

    Fig 1: End Gate Emblem/Nameplate
    G01578684Courtesy of GENERAL MOTORS CORP.
