Theft Deterrent System Schematics

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

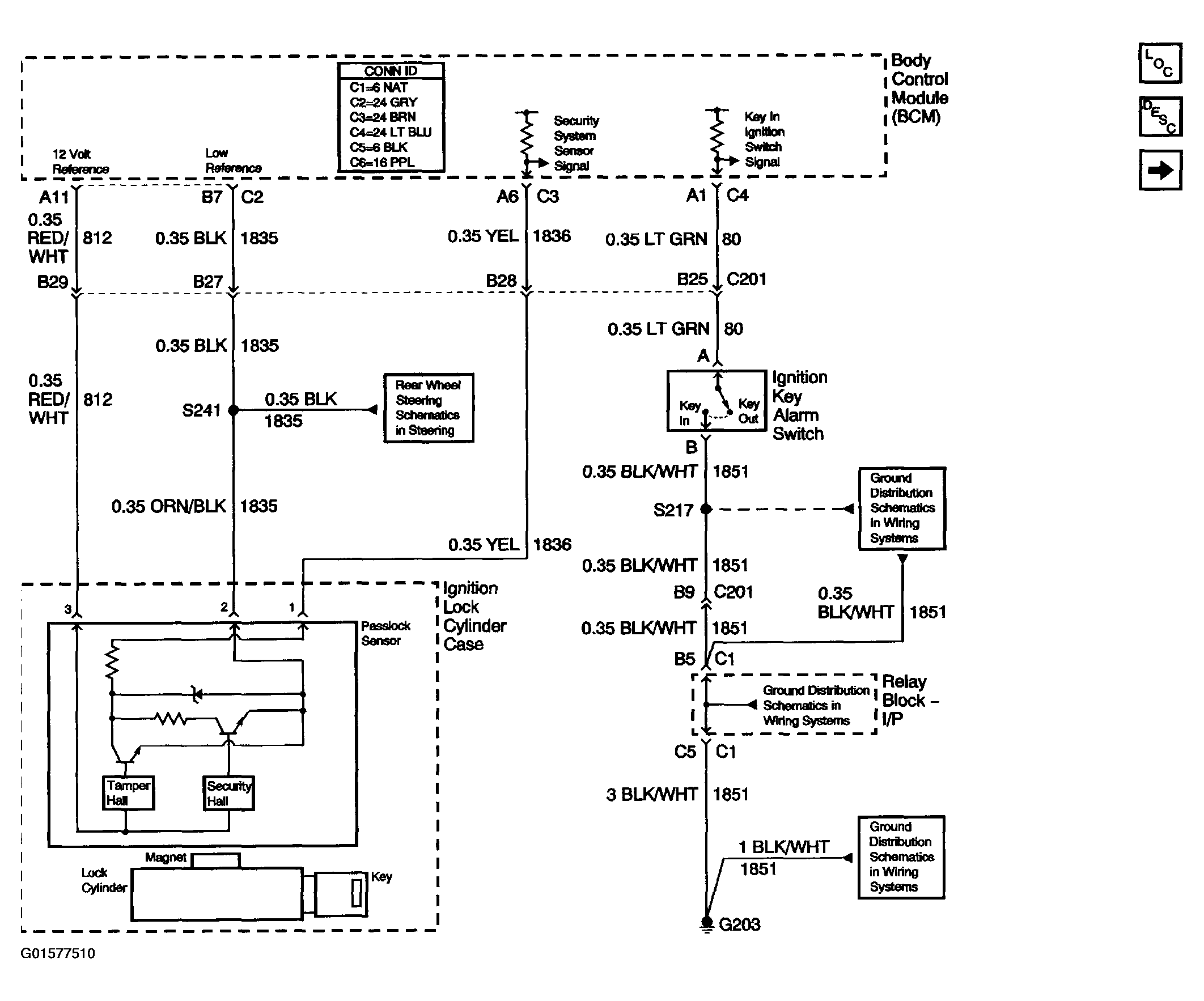

Fig 1: Theft Deterrent System Schematics (Vehicle Theft Deterrent)

Courtesy of GENERAL MOTORS CORP.

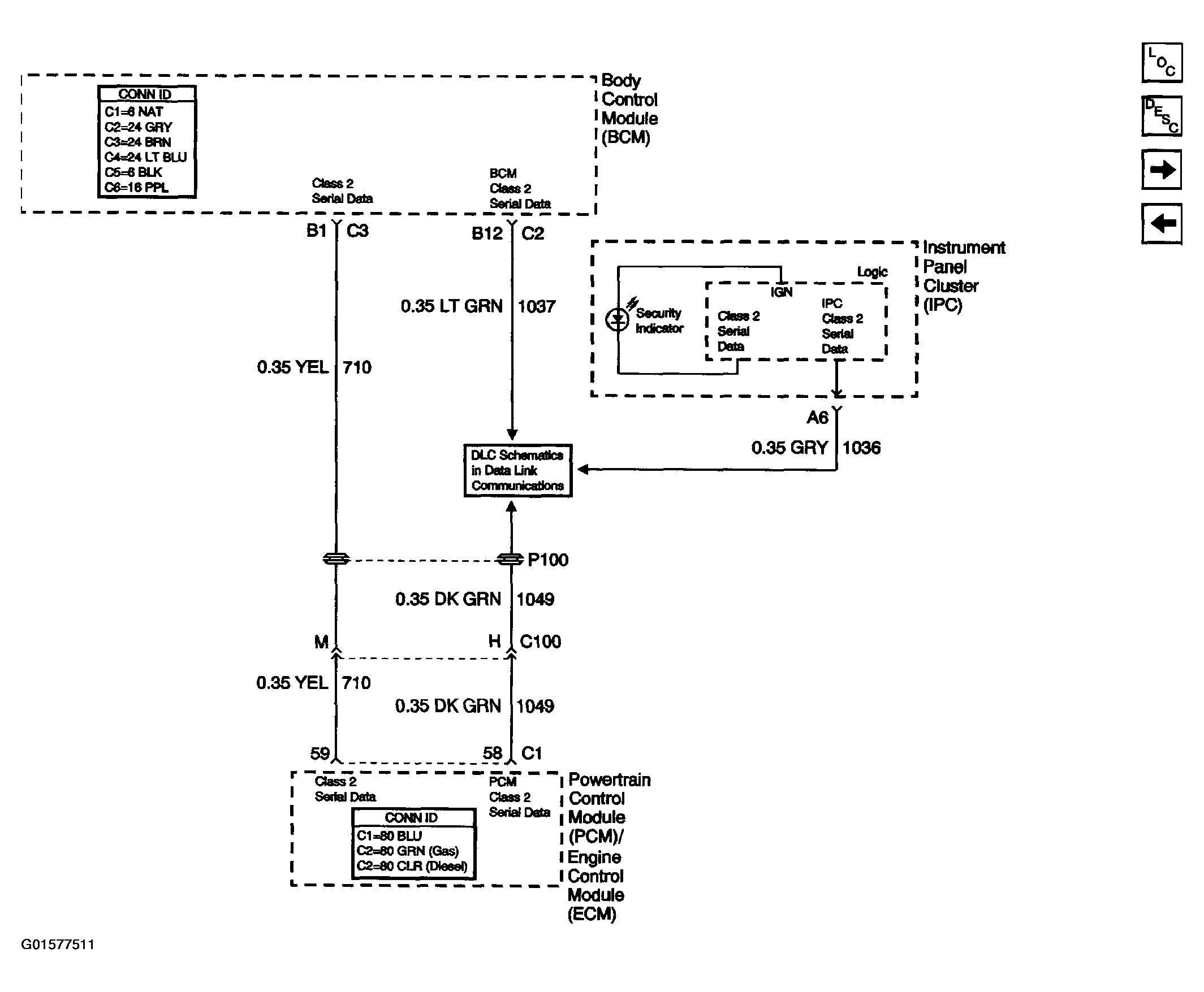

Fig 2: Theft Deterrent System Schematics (Class 2 Communication)

Courtesy of GENERAL MOTORS CORP.

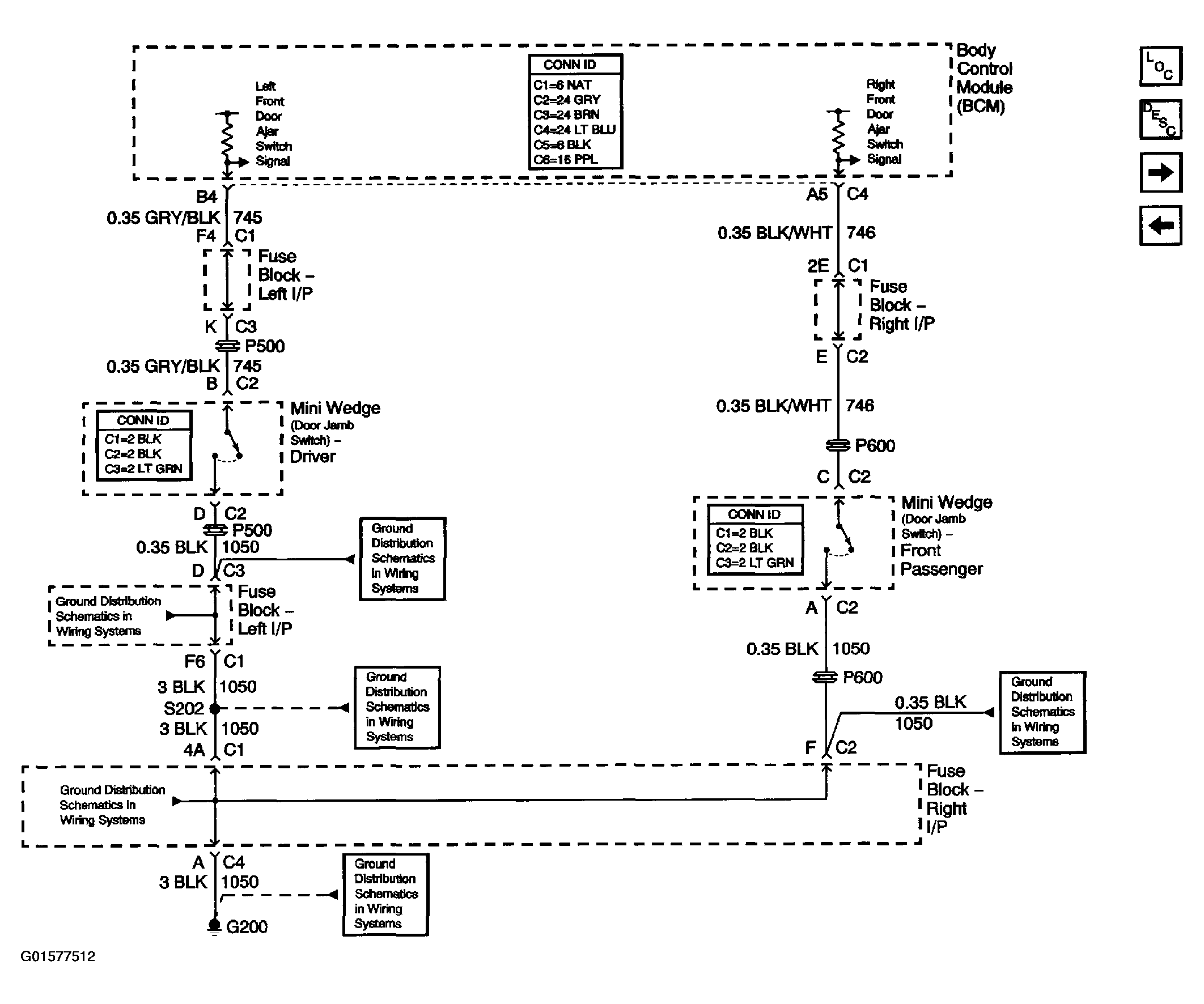

Fig 3: Theft Deterrent System Schematics (Front Door Switches - Base)

Courtesy of GENERAL MOTORS CORP.

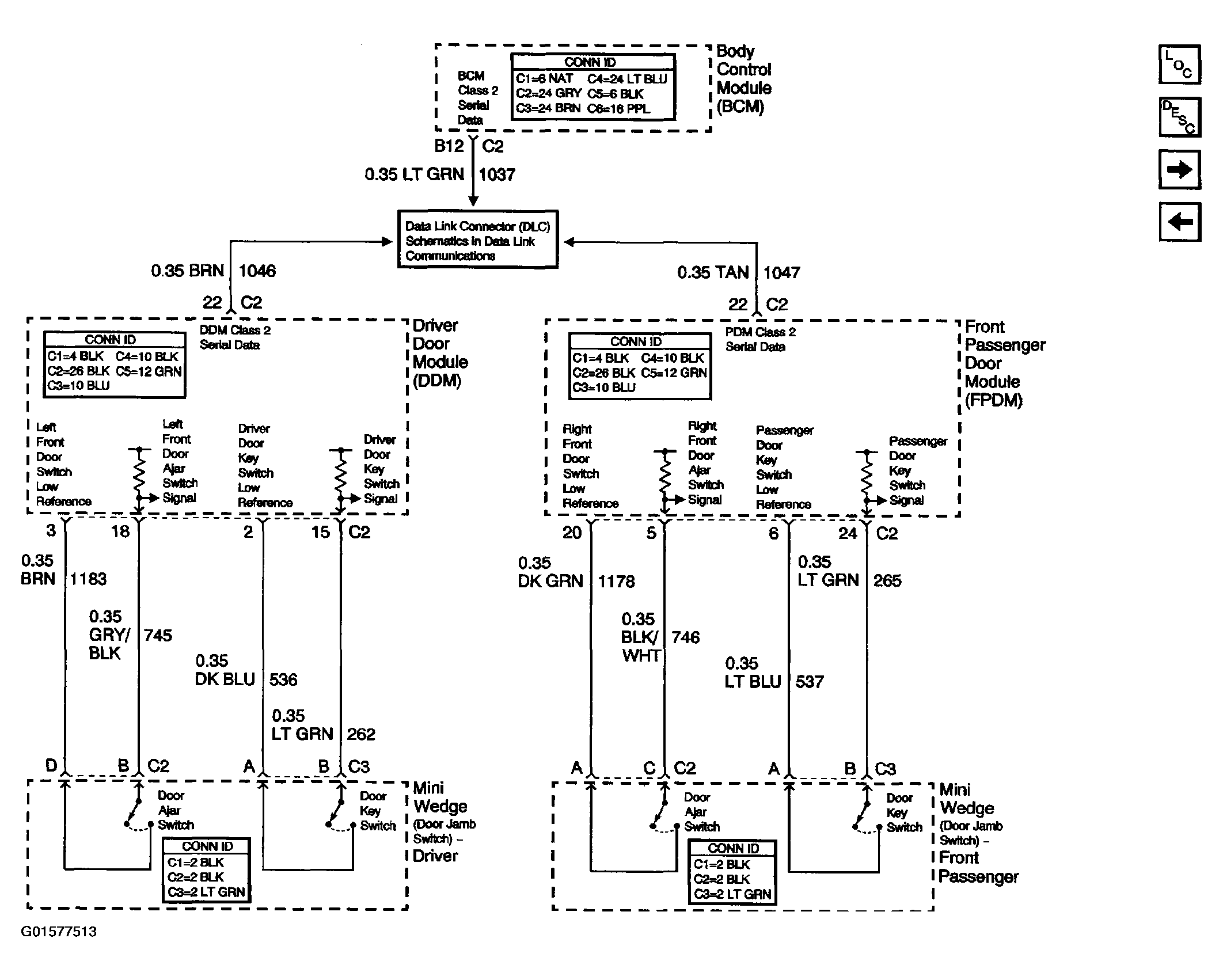

Fig 4: Theft Deterrent System Schematics (Front Door Switches - Uplevel)

Courtesy of GENERAL MOTORS CORP.

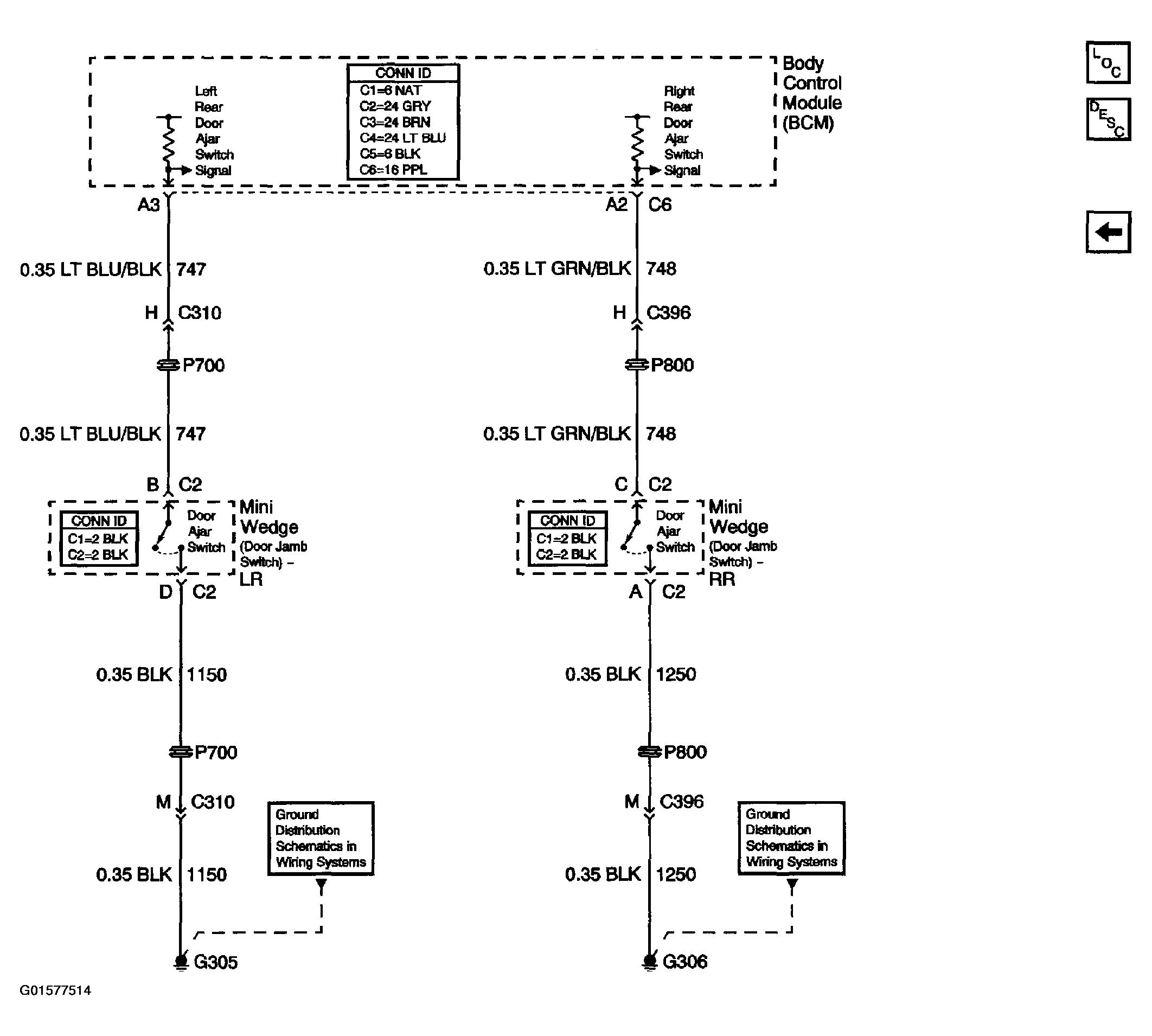

Fig 5: Theft Deterrent System Schematics (Rear Door Switches - Crew Cab)

Courtesy of GENERAL MOTORS CORP.
