Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. Verifies that DTC B2947 is a current DTC.

3. Tests for a short to ground in the Passlock™ sensor or the pigtail harness.

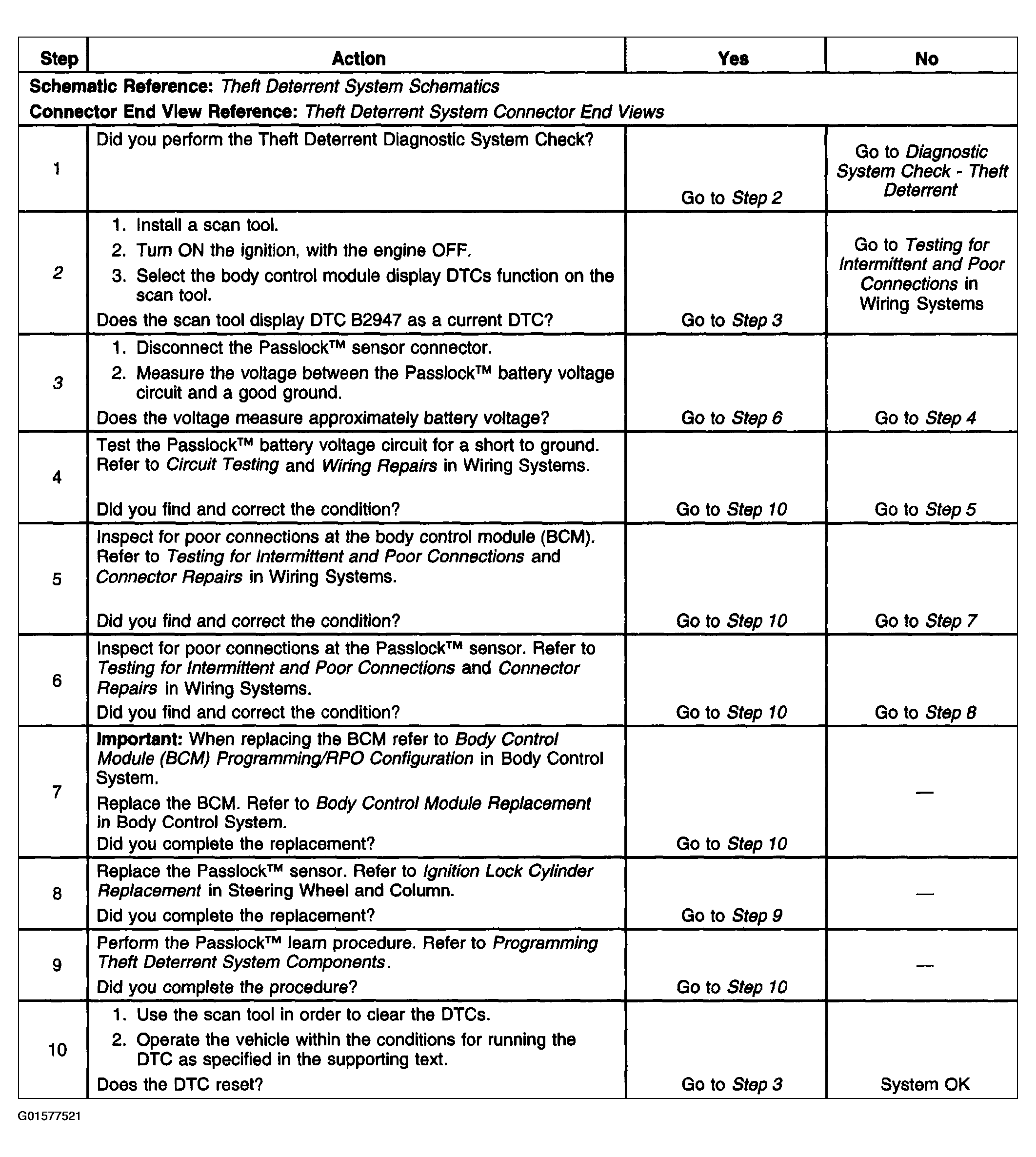

Fig 1: DTC B2947
G01577521Courtesy of GENERAL MOTORS CORP.
