Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (1) to the ambient light sensor on the underside of the trim panel.
    Fig 1: Connecting Electrical Connector
    G01579411Courtesy of GENERAL MOTORS CORP.
  2. Install the trim panel to the IP assembly.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the trim panel retaining screws.

    Tighten

    Tighten the trim panel retaining screws to 2 N.m (18 lb in).

  4. Install the windshield pillar garnish moldings. Refer to GARNISH MOLDING REPLACEMENT-WINDSHIELD PILLAR .

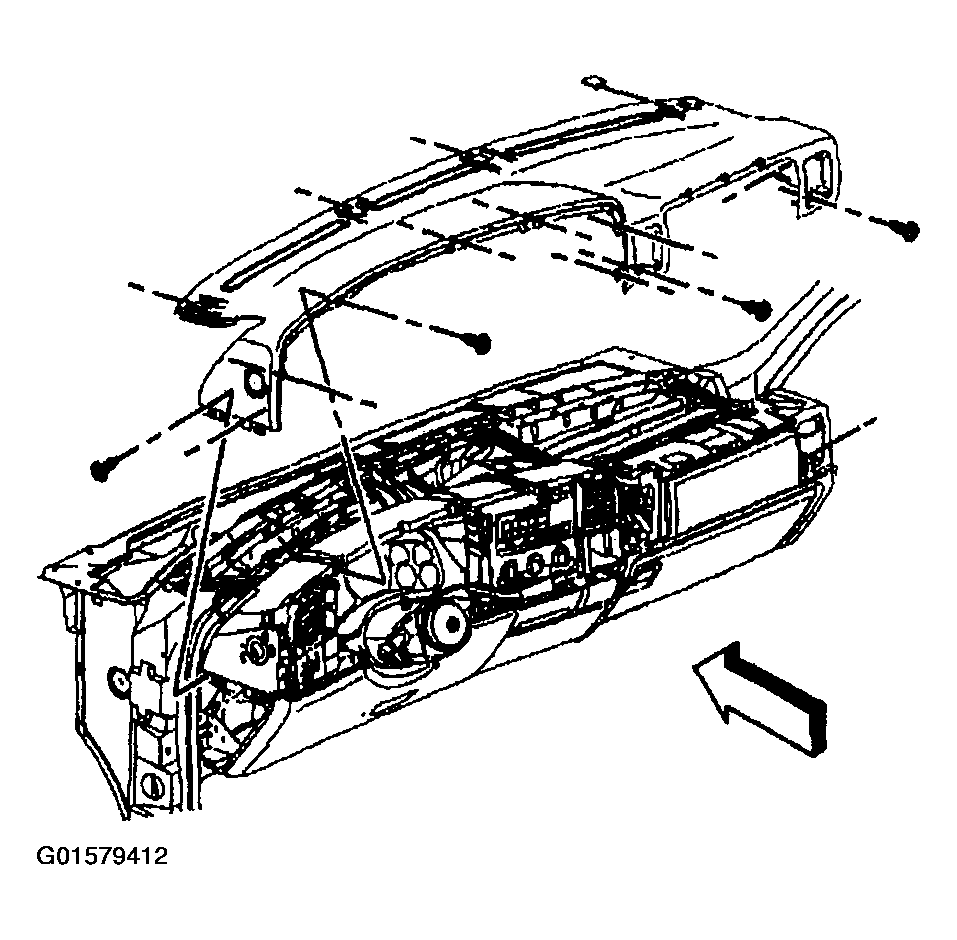

    Fig 2: Installing Trim Panel Retaining Screws
    G01579412Courtesy of GENERAL MOTORS CORP.
  5. Align the assist handle with the holes in the IP assembly. Push the handle in order to engage the retaining tabs.
  6. Install the right side air outlets.
    Fig 3: Aligning Assist Handle
    G01579413Courtesy of GENERAL MOTORS CORP.
  7. Install the end panels. The left panel is shown, and the right panel is similar.
  8. Install the IP cluster trim plate bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster   .
  9. Tilt the steering wheel to the normal driving position.
  10. If the transmission is automatic, move the shift lever to the park position.
  11. Disengage the parking brake.

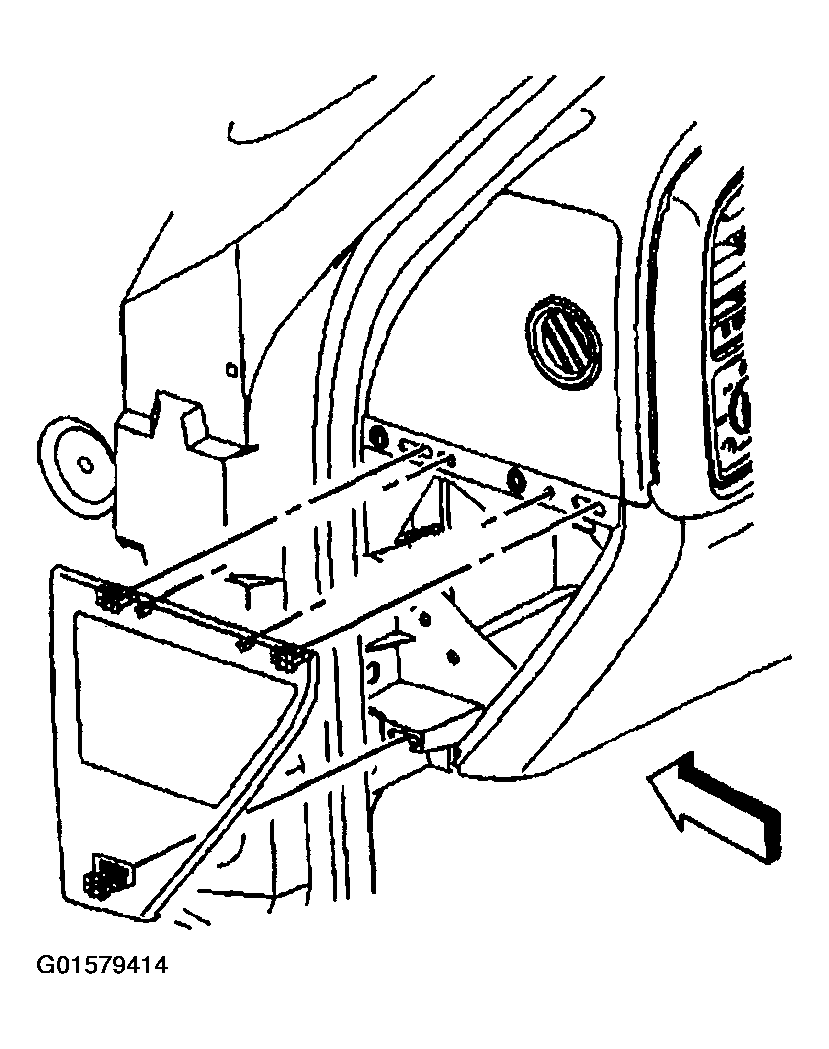

    Fig 4: Installing End Panels
    G01579414Courtesy of GENERAL MOTORS CORP.
