Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cupholder assembly. Refer to Cupholder Replacement (Luxury)   or  Cupholder Replacement (Non-Luxury)   or  Cupholder Replacement (Rear)   or  Cupholder Replacement (Pro)   .
    IMPORTANT: Observe the orientation of the switches. The red lights points towards the rear of the vehicle.
  2. Disconnect the wire connectors from the 2 switches.
    • Switch 1 is the power switch.
    • Switch 2 is the hot and cold switch.

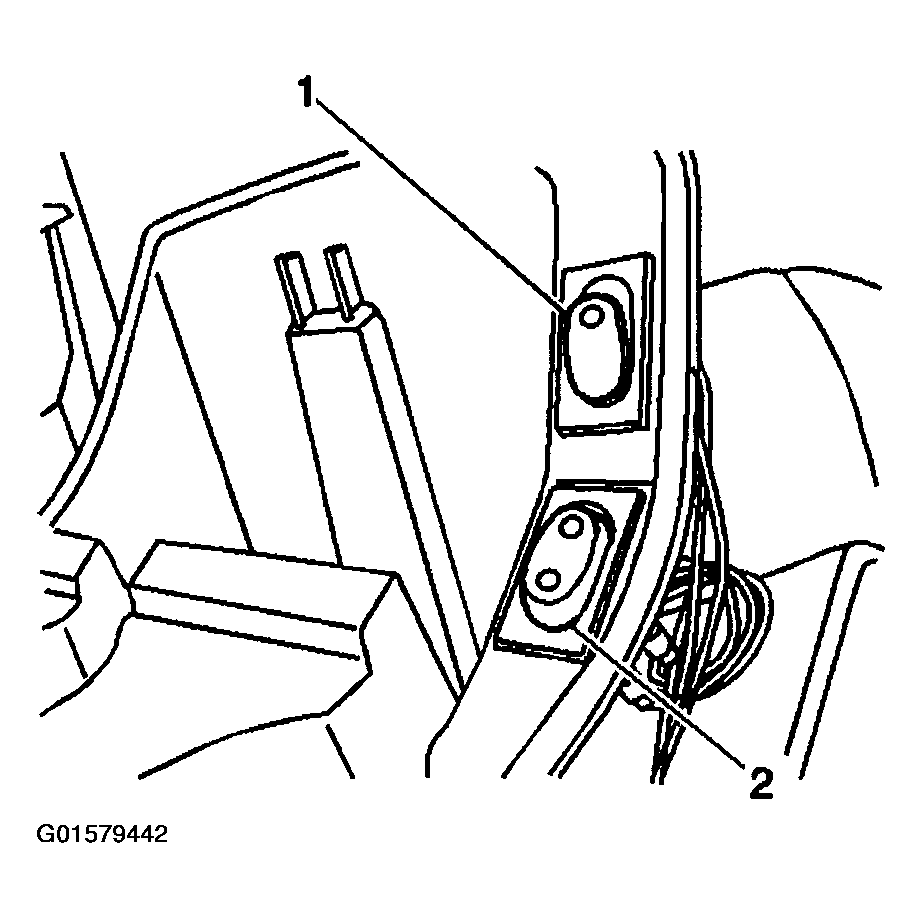

    Fig 1: Identifying Power Switch & Hot & Cold Switch
    G01579442Courtesy of GENERAL MOTORS CORP.
  3. Remove the defective switch by pushing in the retaining tabs (1) while pushing the switch outwards.

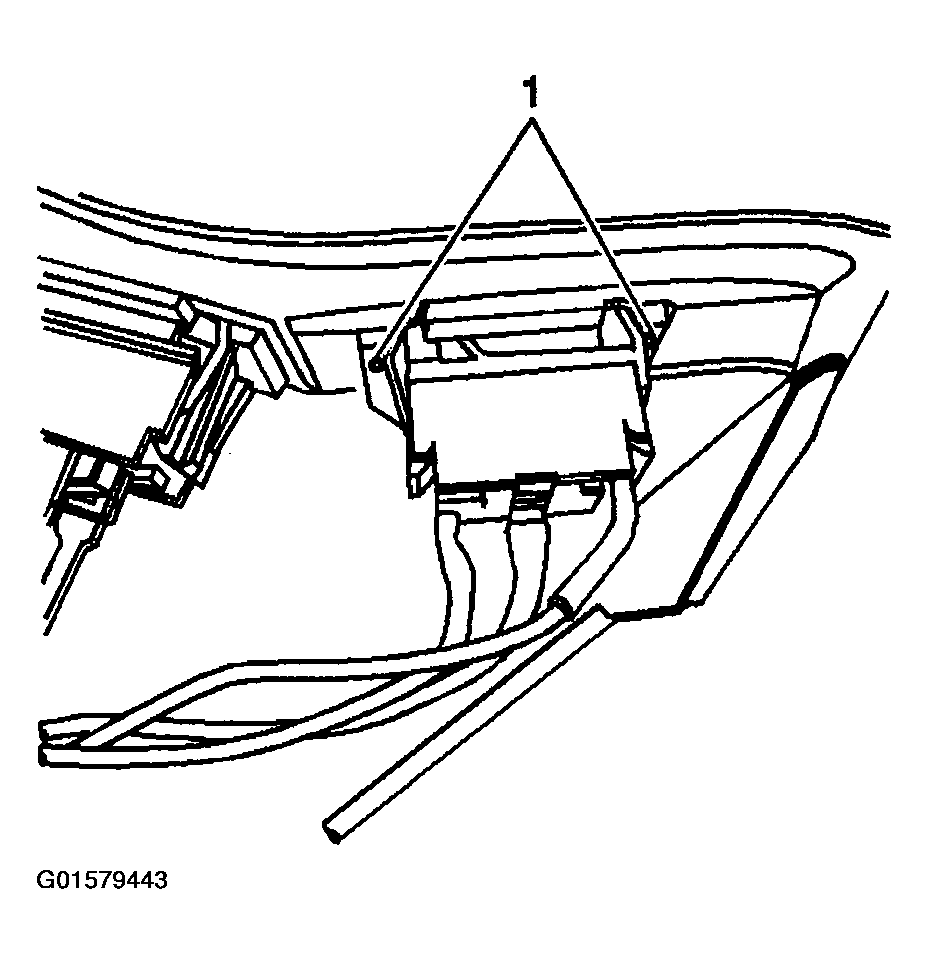

    Fig 2: Removing Defective Switch By Pushing In Retaining Tabs
    G01579443Courtesy of GENERAL MOTORS CORP.
