Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P cluster trim plate bezel. Refer to Bezel Replacement-Instrument Panel (I/P) Cluster   .

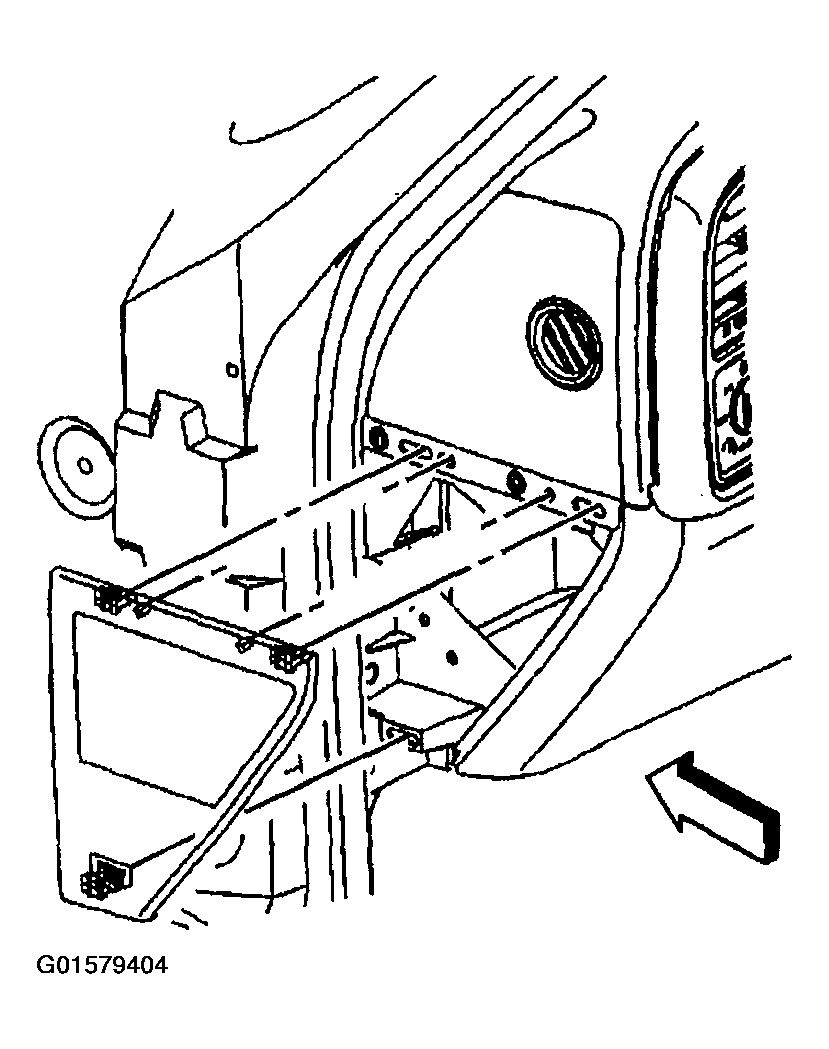

    Fig 1: Removing I/P Cluster Trim Plate Bezel
    G01579404Courtesy of GENERAL MOTORS CORP.
  2. Remove the knee bolster screws.
  3. Unsnap the top of the knee bolster from the I/P assembly.

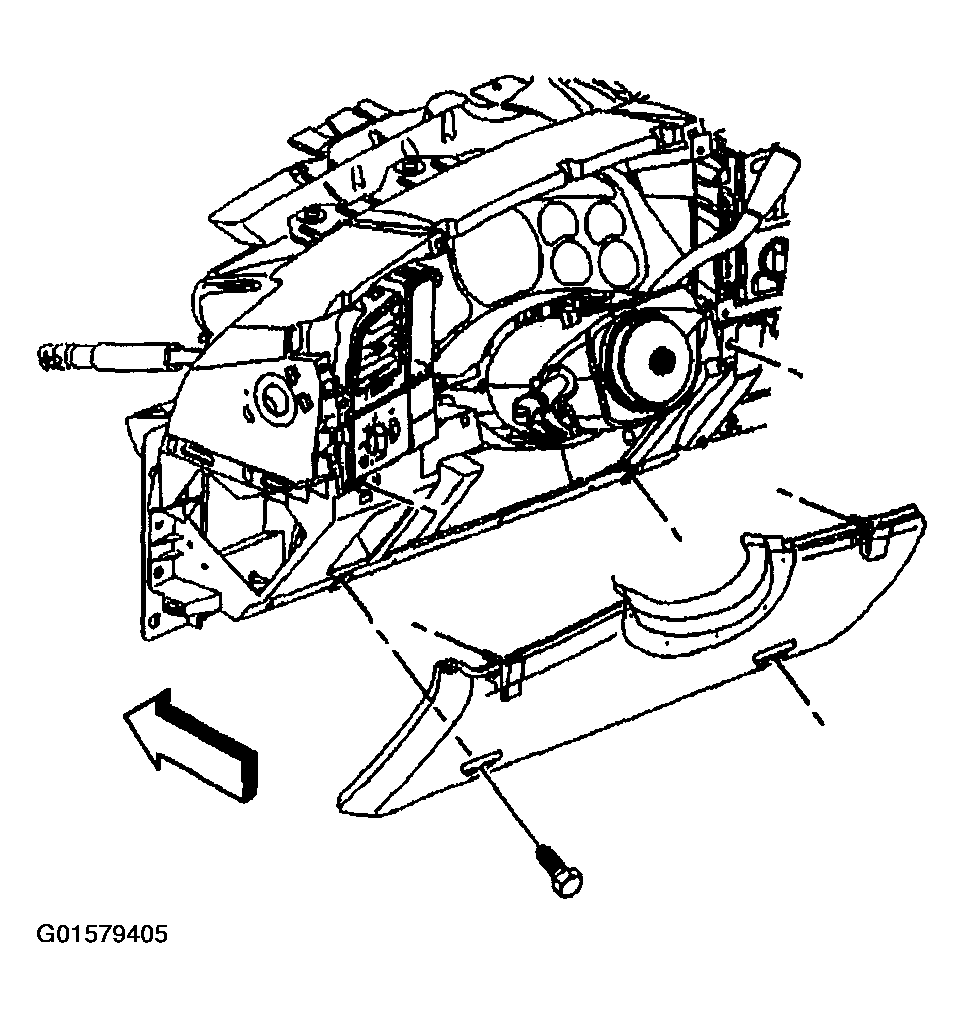

    Fig 2: Removing Knee Bolster Screws
    G01579405Courtesy of GENERAL MOTORS CORP.
