Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the top of the knee bolster into the I/P assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the knee bolster screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the I/P cluster trim plate bezel. Refer to Bezel Replacement-Instrument Panel (I/P) Cluster   .

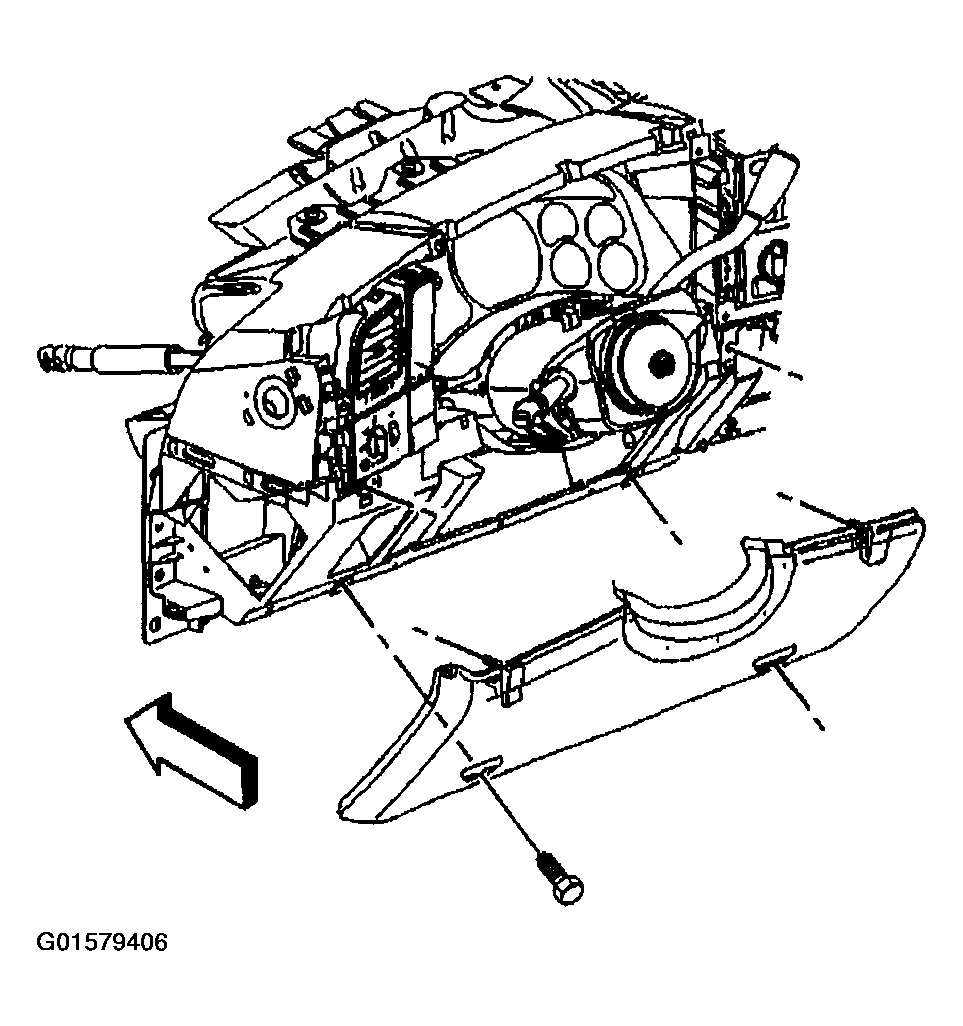

    Fig 1: Installing Knee Bolster Screws
    G01579406Courtesy of GENERAL MOTORS CORP.
