Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the retaining bolts.
  2. Remove the insulator (1) from the HVAC module by pulling downwards.

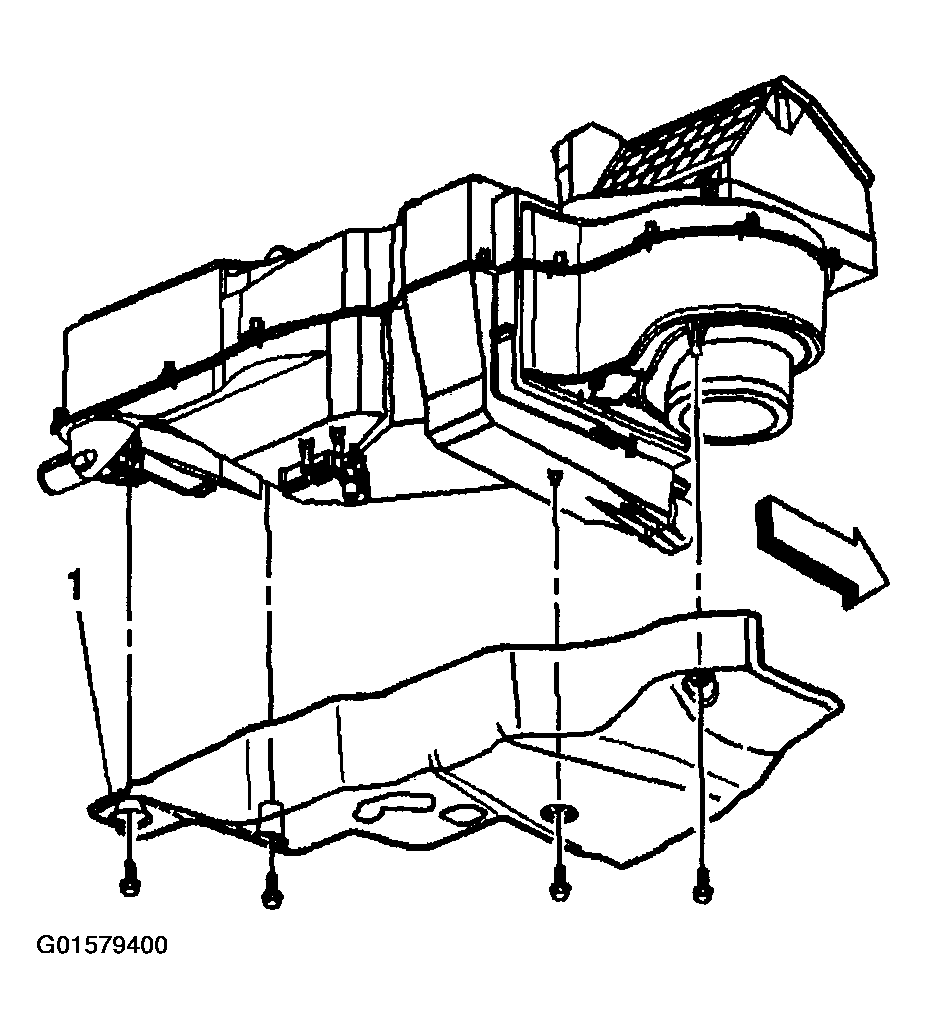

    Fig 1: Instrument Panel (I/P) Insulator
    G01579400Courtesy of GENERAL MOTORS CORP.
