Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster trim plate bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster   .
  2. Remove the screws that retain the I/P cluster to the I/P assembly.

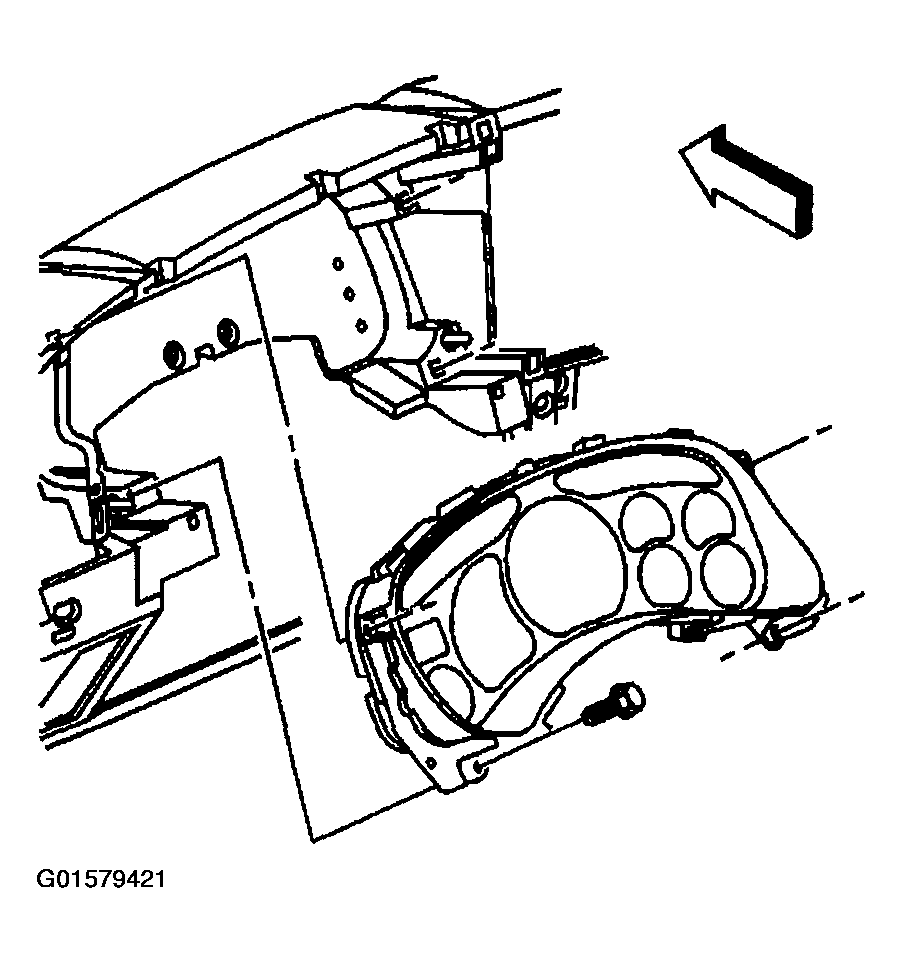

    Fig 1: Removing Screws Retaining I/P Cluster To I/P Assembly
    G01579421Courtesy of GENERAL MOTORS CORP.
  3. Remove the I/P cluster (2) from the vehicle by tilting the bottom of the cluster outward.
  4. Disconnect the I/P cluster harness (1) from the I/P cluster.

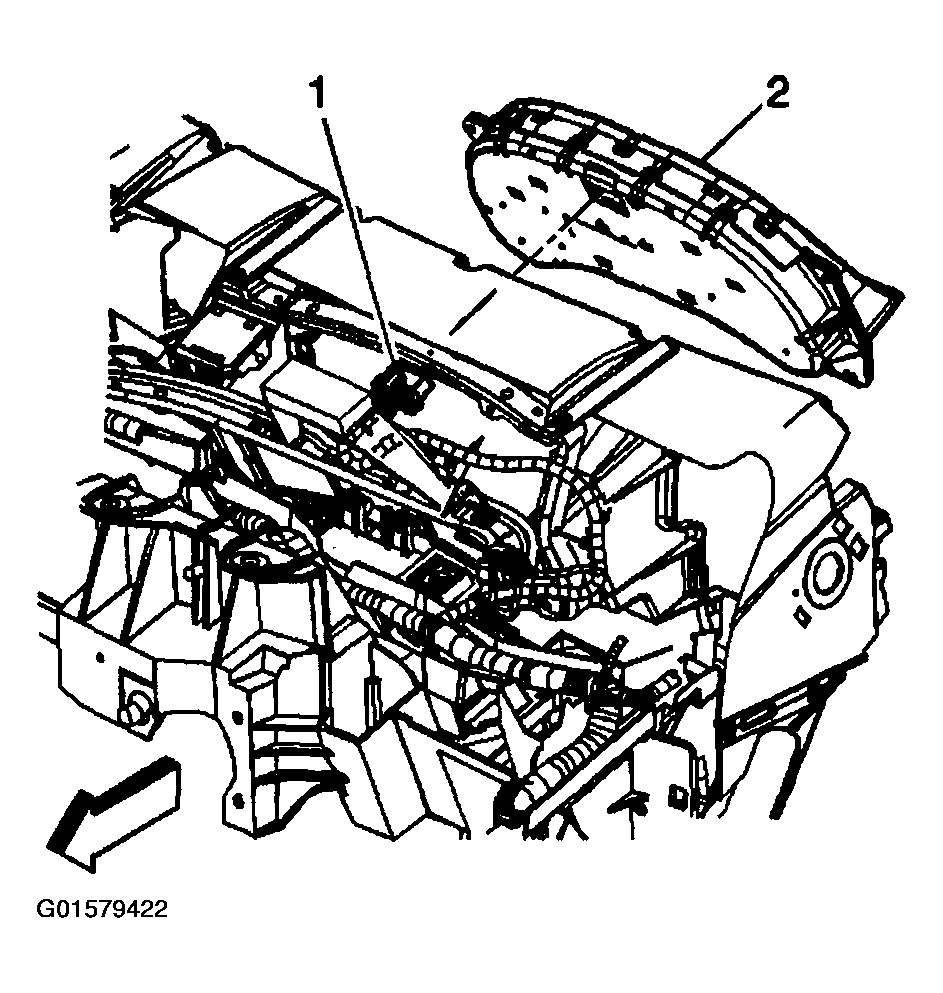

    Fig 2: Removing I/P Cluster
    G01579422Courtesy of GENERAL MOTORS CORP.
