Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the I/P cluster harness (1) to the I/P cluster (2).

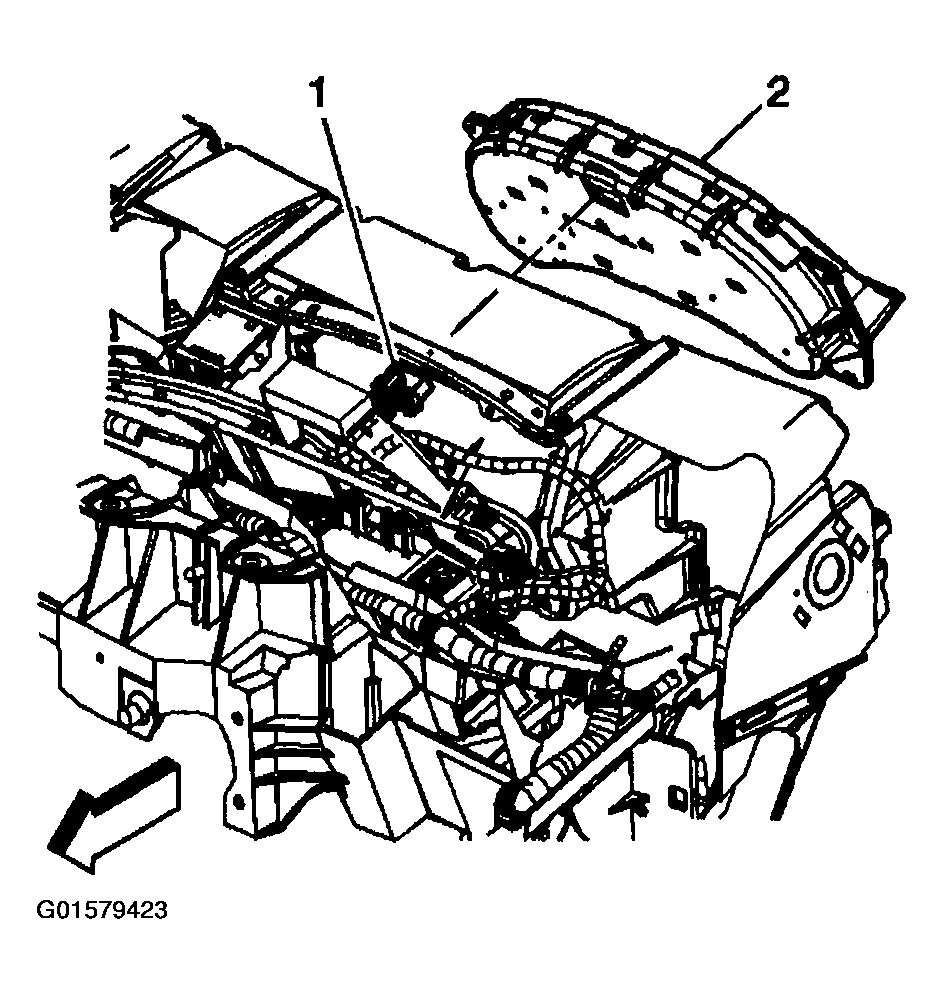

    Fig 1: Connecting I/P Cluster Harness To I/P Cluster
    G01579423Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P cluster onto the I/P with the screws. Tilt the top of the cluster into the retainer first to avoid damaging the flexible circuit connections.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws that retain the I/P cluster to the I/P assembly.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the I/P cluster trim plate bezel. Refer to Bezel Replacement-Instrument Panel (I/P) Cluster   .

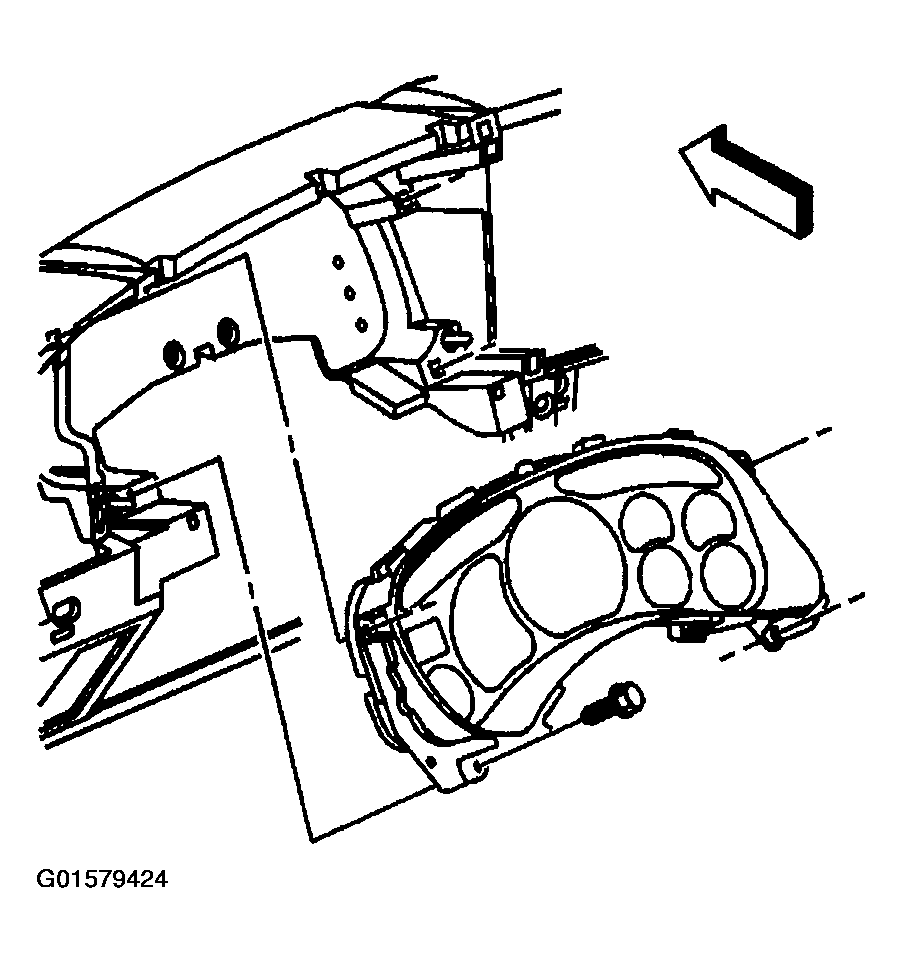

    Fig 2: Installing Screws To Retain I/P Cluster To I/P Assembly
    G01579424Courtesy of GENERAL MOTORS CORP.
