Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster trim bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster   .
  2. Remove the center console, if equipped. Refer to Console Replacement (Except Pro)   or  Console Replacement (Pro)   .
  3. Open the I/P compartment door.
  4. Remove the bolts retaining the lower trim panel to the I/P assembly.

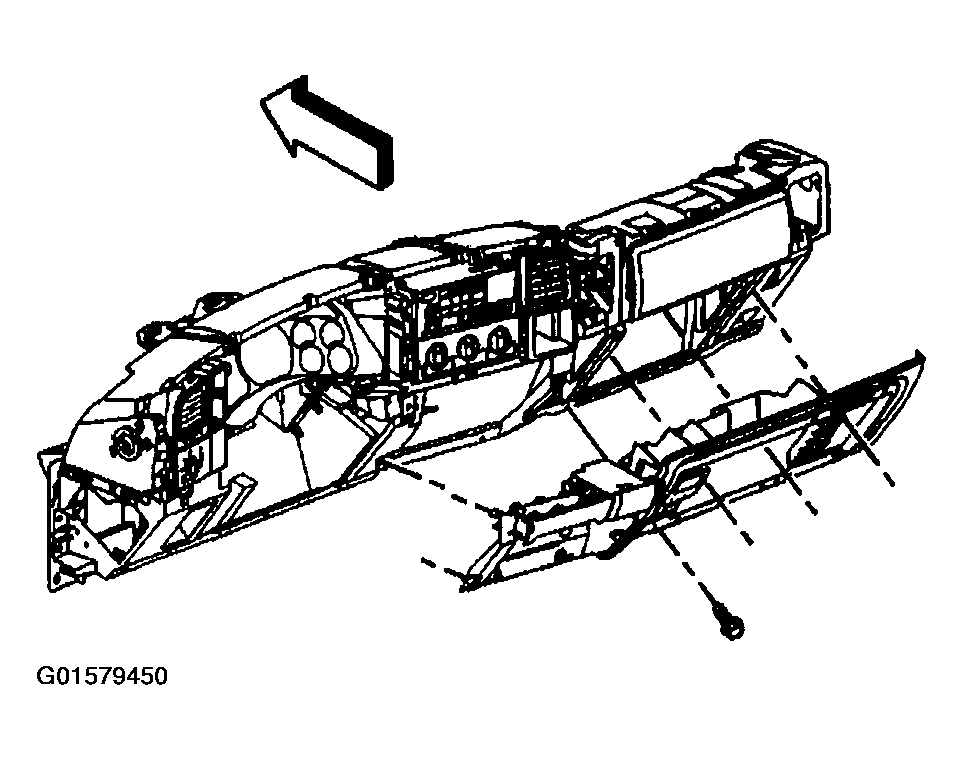

    Fig 1: Removing Bolts Retaining Lower Trim Panel To I/P Assembly
    G01579450Courtesy of GENERAL MOTORS CORP.
  5. Disconnect all of the electrical connectors.
  6. Remove the lower trim panel from the I/P assembly.

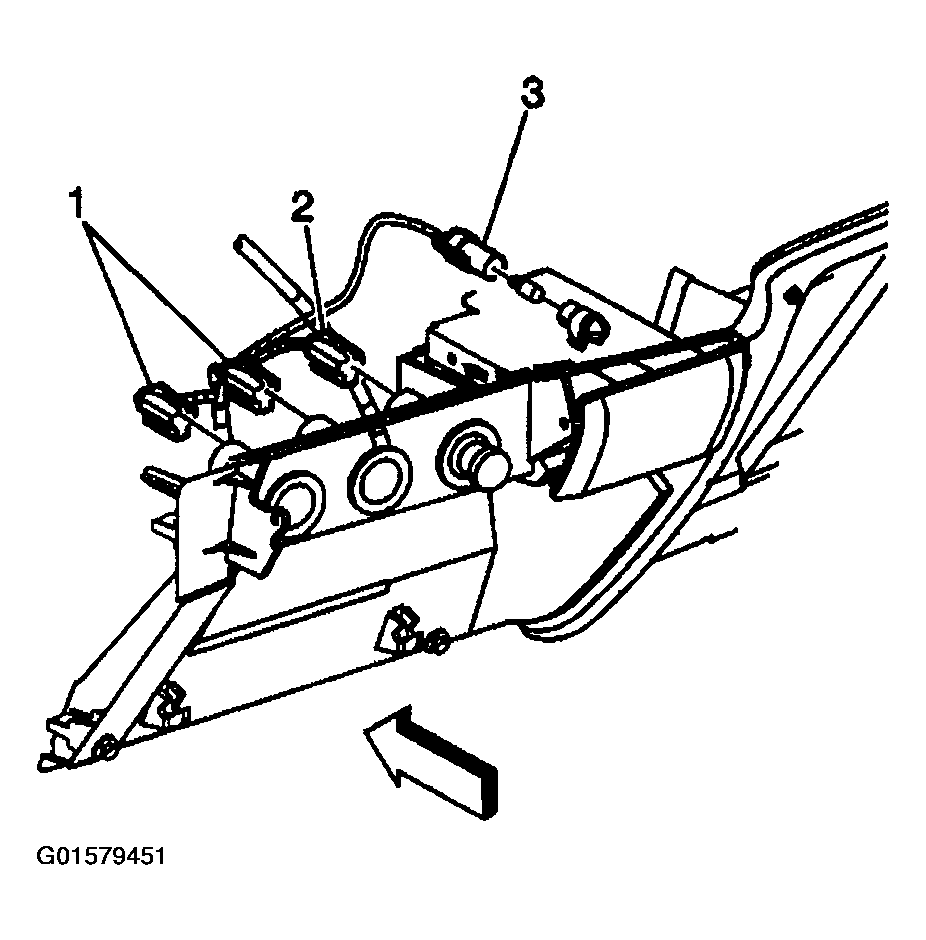

    Fig 2: Disconnecting Electrical Connectors
    G01579451Courtesy of GENERAL MOTORS CORP.
