Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect all of the electrical connectors.

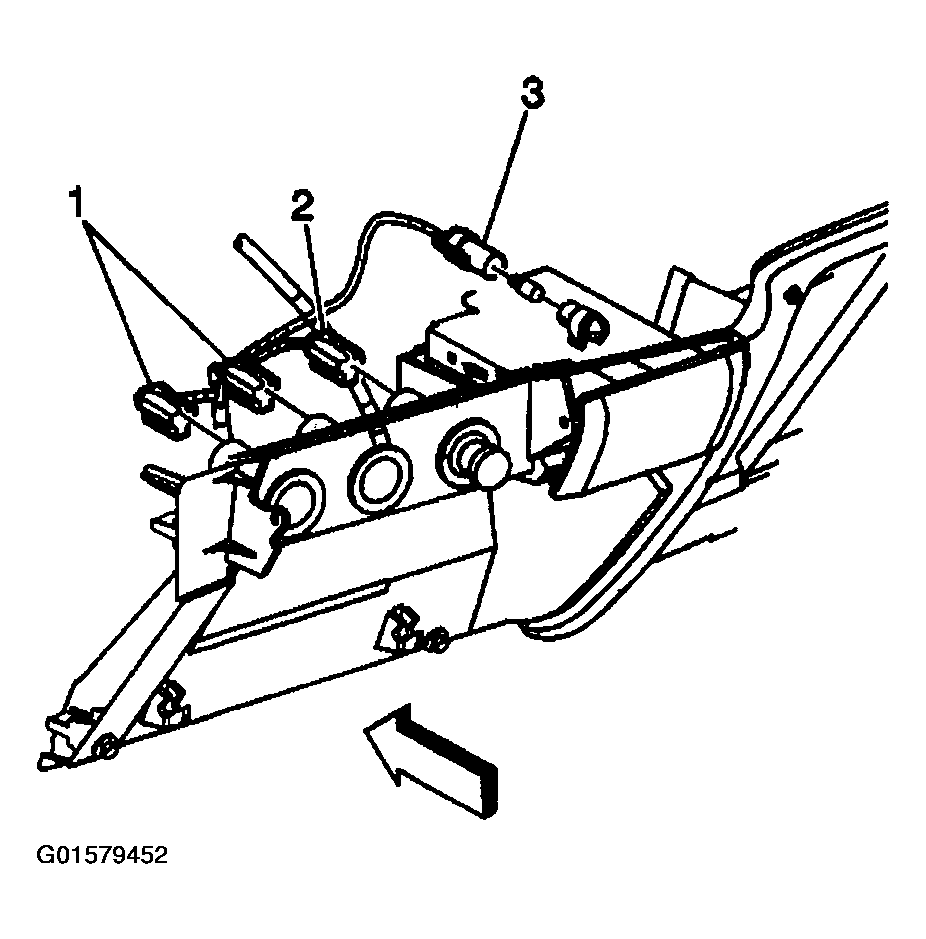

    Fig 1: Connecting Electrical Connectors
    G01579452Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts connecting the lower trim panel to the I/P assembly.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  3. Install the center console, if equipped. Refer to Console Replacement (Except Pro)   or  Console Replacement (Pro)   .
  4. Install the I/P cluster trim bezel. Refer to Instrument Panel Cluster (IPC) Replacement   .

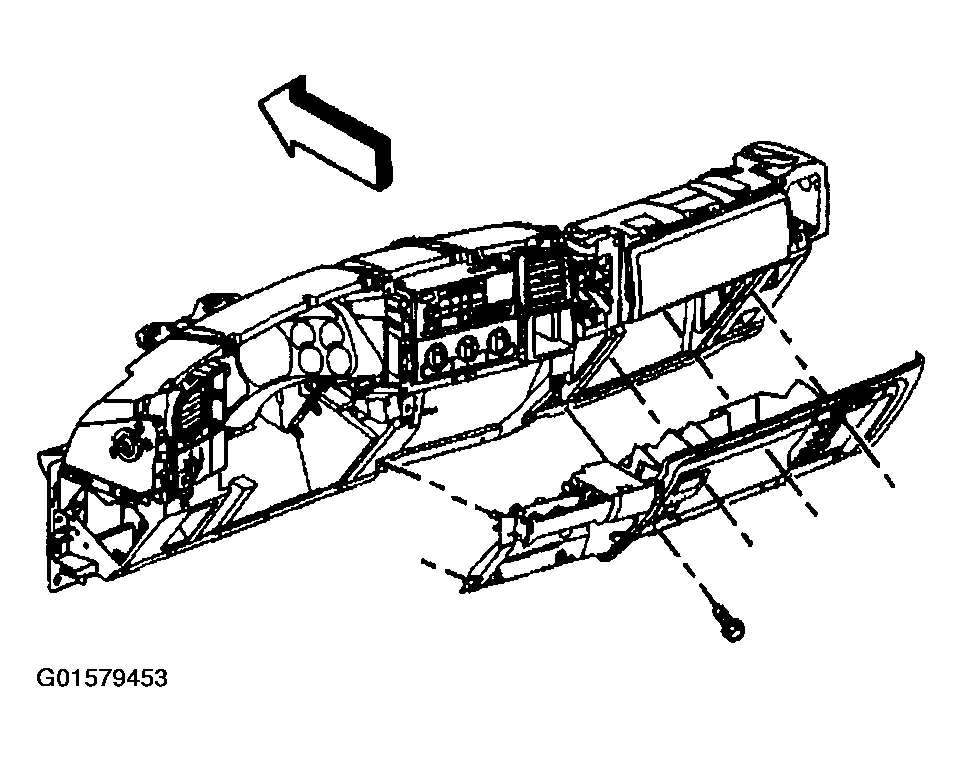

    Fig 2: Installing Bolts Connecting Lower Trim Panel To I/P Assembly
    G01579453Courtesy of GENERAL MOTORS CORP.
