Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P carrier. Refer to Instrument Panel (I/P) Carrier Replacement   .
  2. Remove the driver's side hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT-HINGE PILLAR .
  3. Remove the driver's side seat, if equipped with power. Refer to SEAT REPLACEMENT-FRONT BUCKET .
  4. Disconnect the electrical harness from the underhood electrical center. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT .
  5. Disconnect the wire harness from the hood, if equipped with underhood camp.
  6. Remove the harness grommet from the cowl.
  7. Remove the I/P harness from the vehicle.

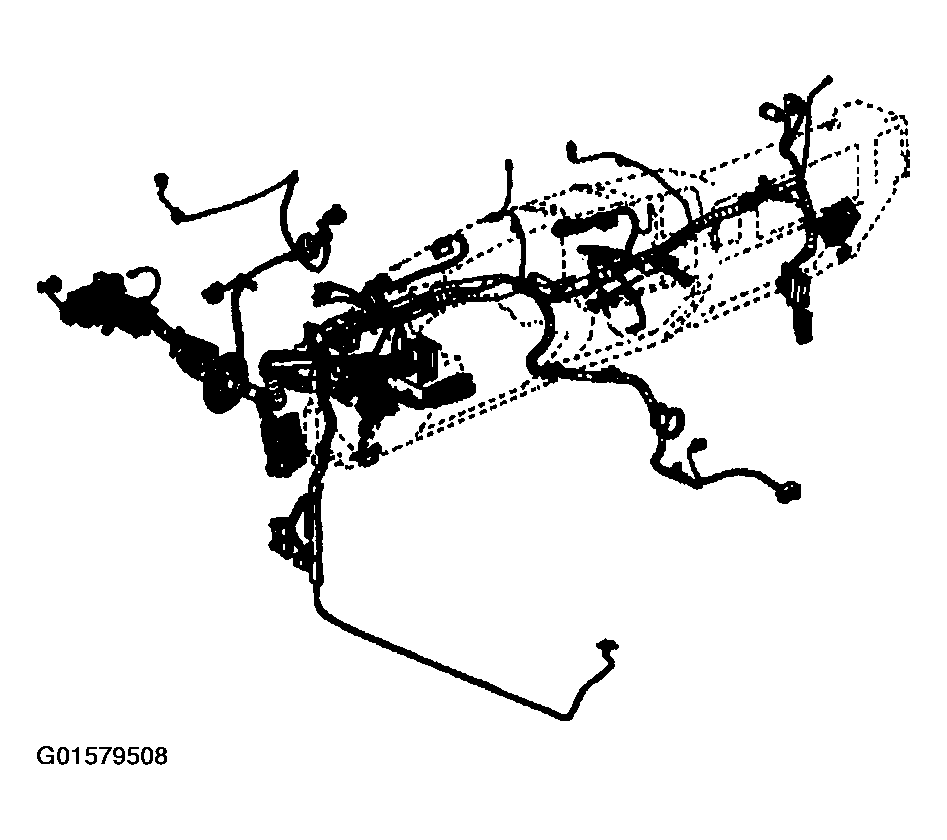

    8. Fig 1: Instrument Panel (I/P) Harness
    G01579508Courtesy of GENERAL MOTORS CORP.
