Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the I/P harness to the vehicle.
  2. Install the harness grommet to the cowl.
  3. Connect the wire harness to the hood, if equipped with underhood camp.
  4. Connect the electrical harness from the underhood electrical center. Refer to UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT .
  5. Install the driver's side seat, if equipped with power. Refer to SEAT REPLACEMENT-FRONT BUCKET .
  6. Install the driver's side hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT-HINGE PILLAR .
  7. Install the I/P carrier. Refer to Instrument Panel (I/P) Carrier Replacement   .

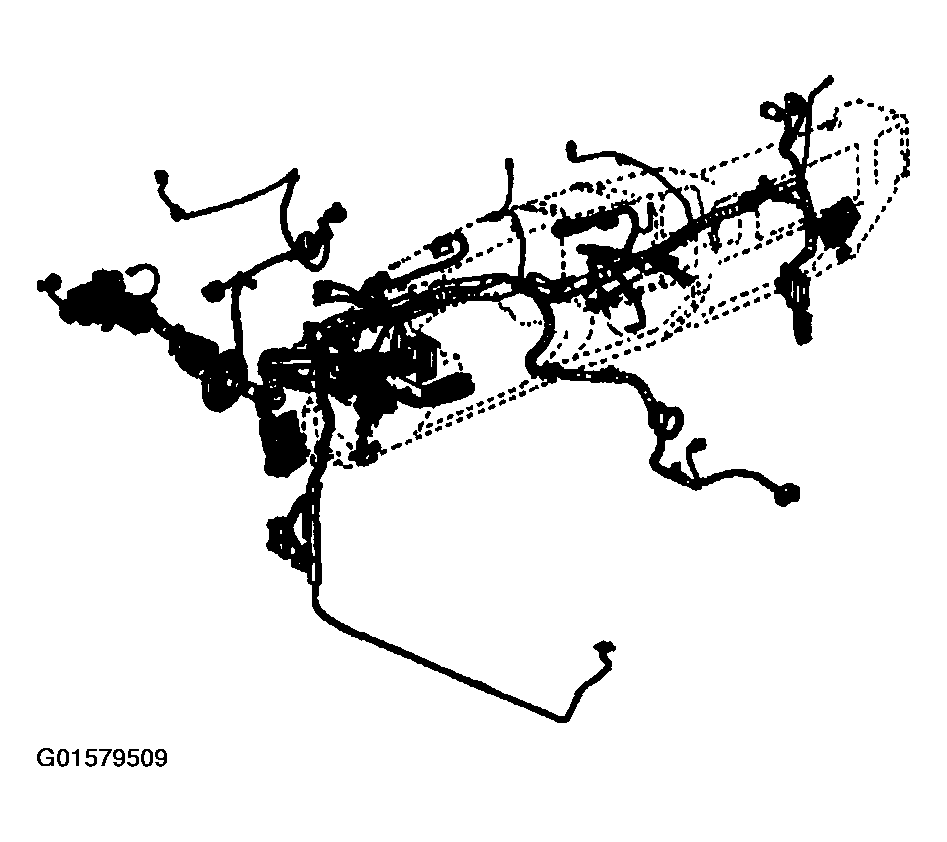

    Fig 1: Instrument Panel (I/P) Harness
    G01579509Courtesy of GENERAL MOTORS CORP.
