Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. From the back of the IP extension remove the 2 retaining bolts from the bracket.
  2. Remove the console assembly from the vehicle. Refer to Console Replacement (Except PRO)   or  Console Replacement (Pro)   .
  3. Place the console assembly on a work bench.
  4. Disconnect the wire connectors.
  5. Remove the 12V power supply. Refer to 12-Volt Power Supply Replacement   .
  6. Remove the screws attaching the console to the front extension.
  7. Remove the IP extension from the console.

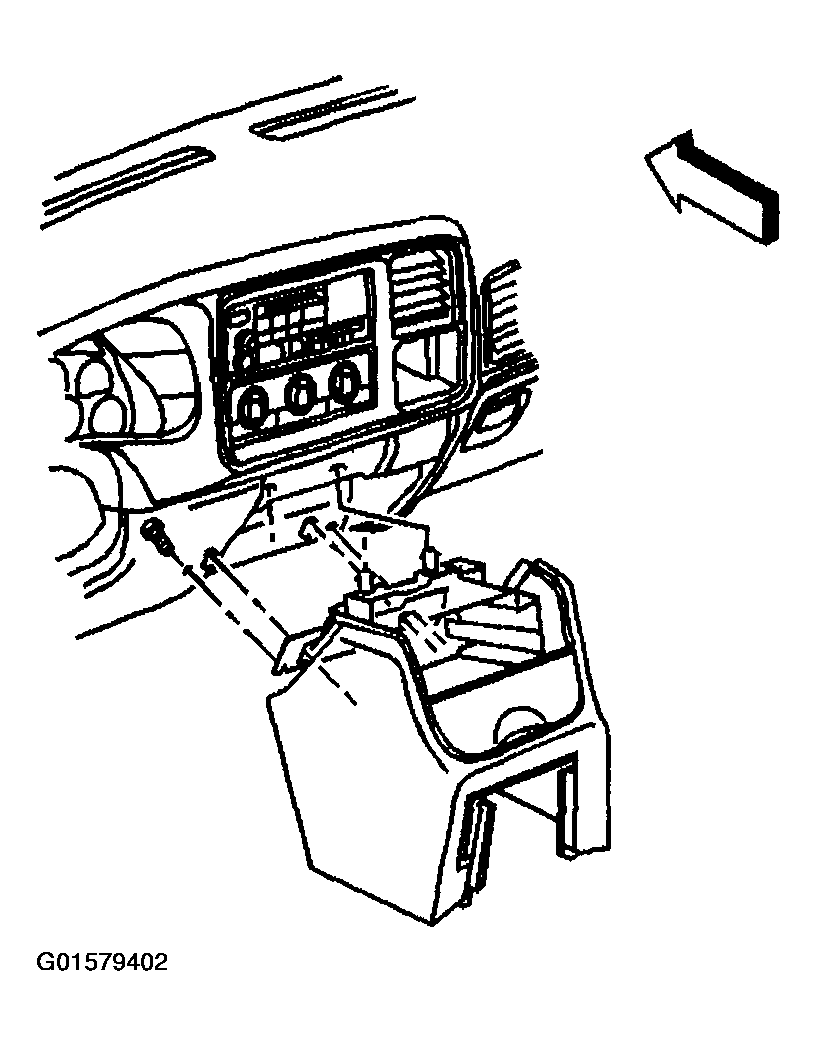

    Fig 1: Instrument Panel (I/P) Extension (Pro)
    G01579402Courtesy of GENERAL MOTORS CORP.
