Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the IP extension to the console.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the retaining screws.

    Tighten

    Tighten the retaining screws to 1.6 N.m (14 lb in).

  3. Install the 12V power supply. Refer to 12-Volt Power Supply Replacement   .
  4. Connect all the wire connectors.
  5. Install the console in the vehicle.
  6. Install the 2 retaining bolts to the bracket.

    Tighten

    Tighten the 2 bolts to 1.6 N.m (14 lb in).

  7. Install the console. Refer to Console Replacement (Except PRO)   or  Console Replacement (PRO)   .

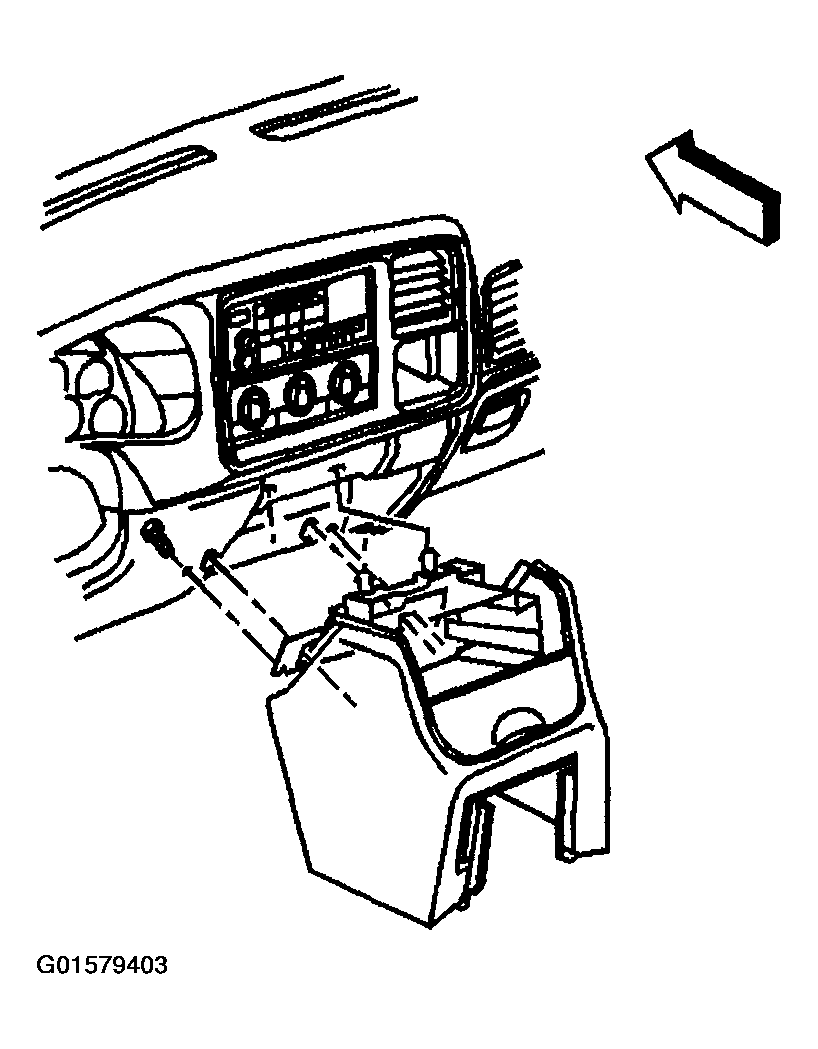

    Fig 1: Instrument Panel (I/P) Extension (Pro)
    G01579403Courtesy of GENERAL MOTORS CORP.
