Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the I/P carrier (1) in the vehicle.

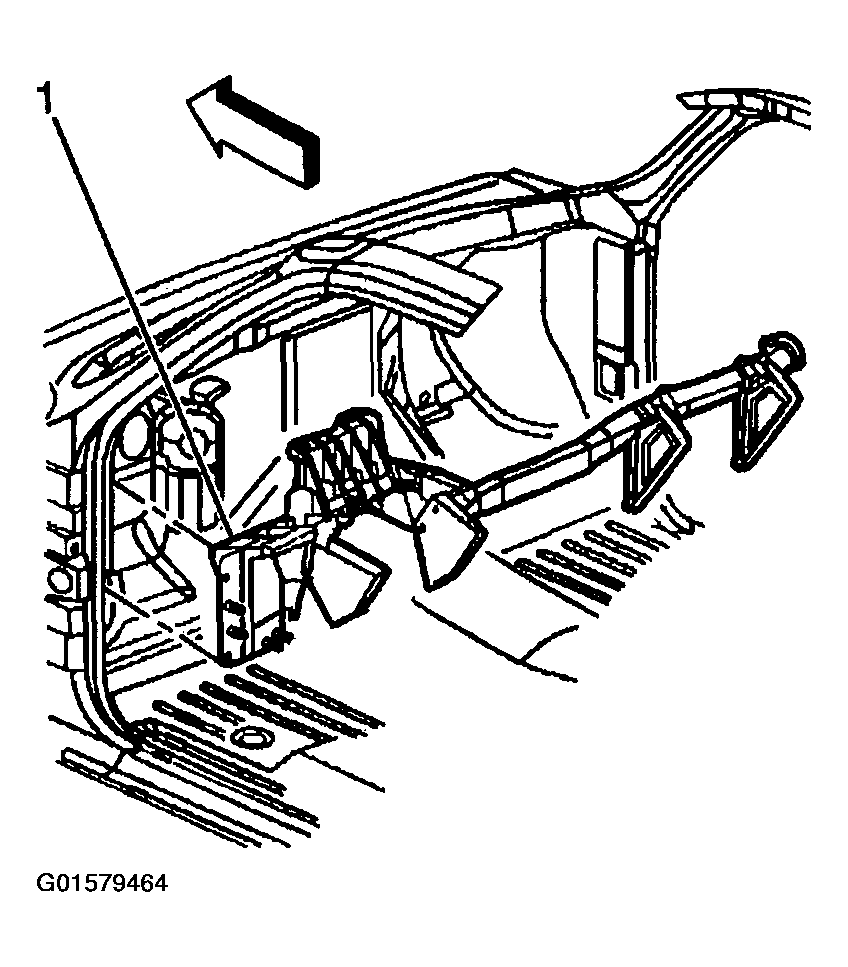

    Fig 1: Positioning I/P Carrier
    G01579464Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the I/P carrier top bolts (1).

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

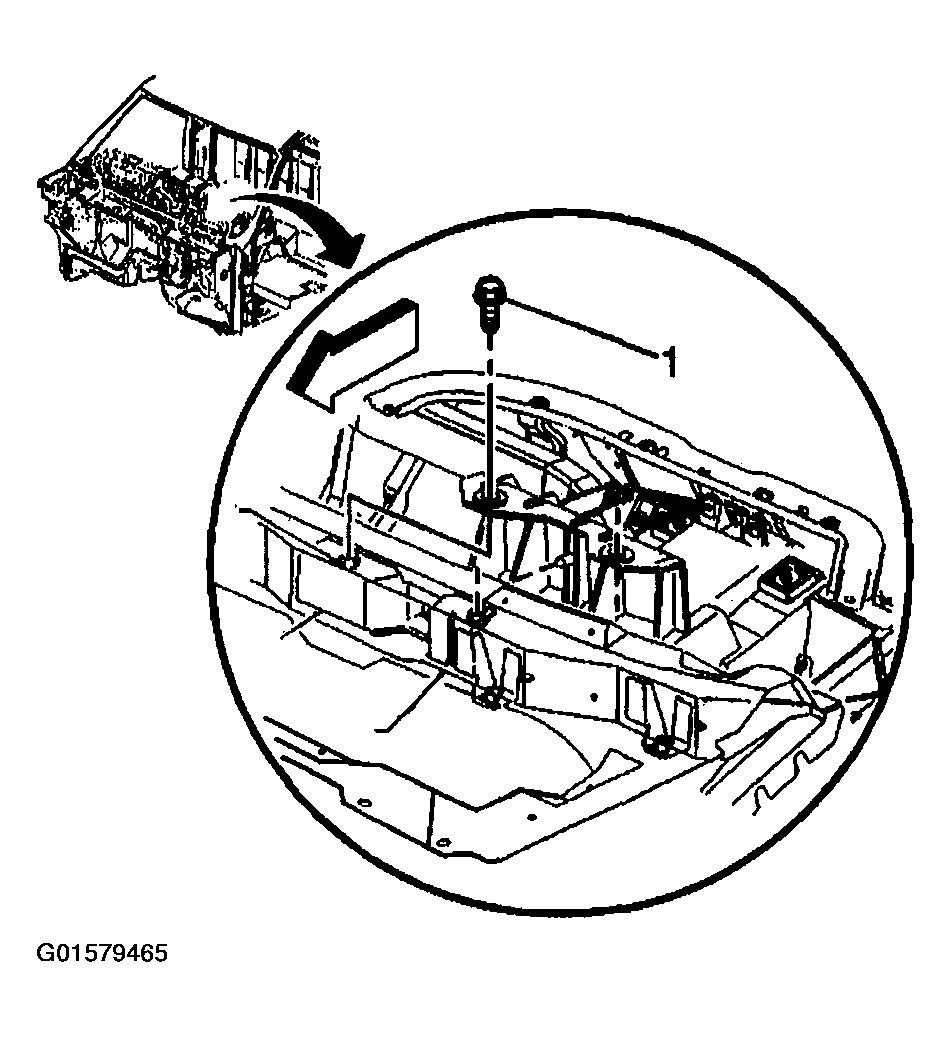

    Fig 2: Installing I/P Carrier Top Bolts
    G01579465Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P carrier retaining bolts.

    The left side is shown, the right is similar.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

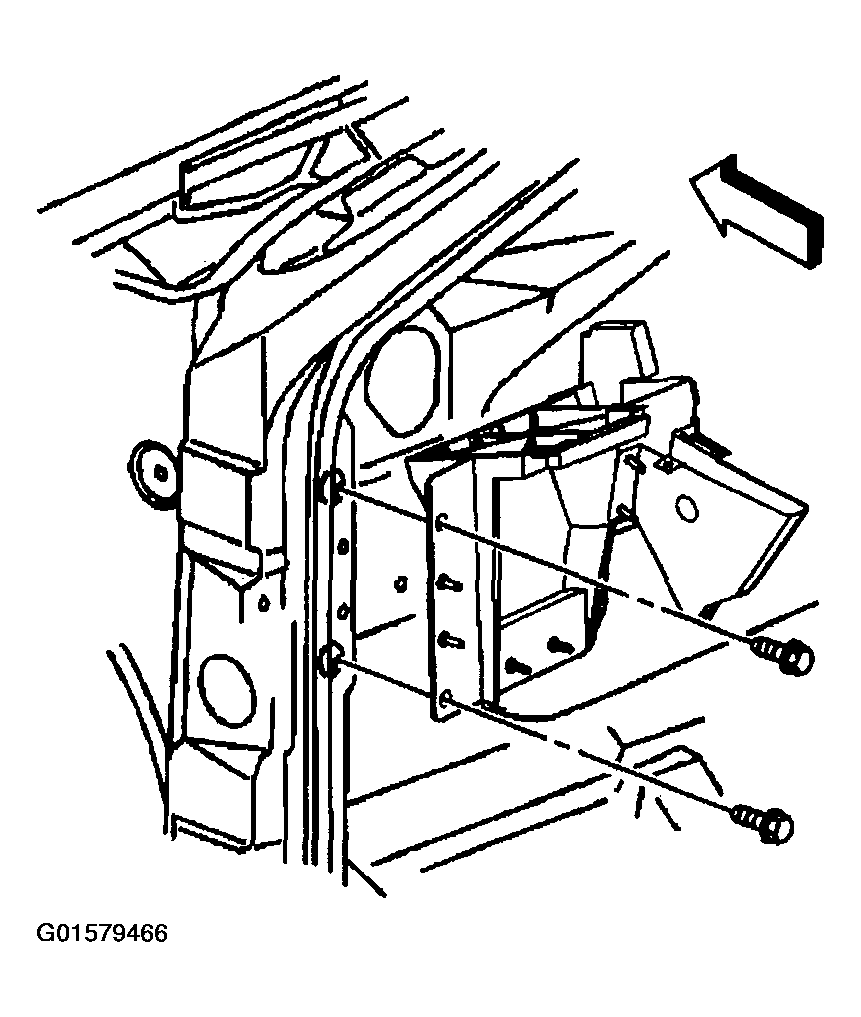

    Fig 3: Installing I/P Carrier Retaining Bolts
    G01579466Courtesy of GENERAL MOTORS CORP.
  4. Install the I/P center support bracket bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

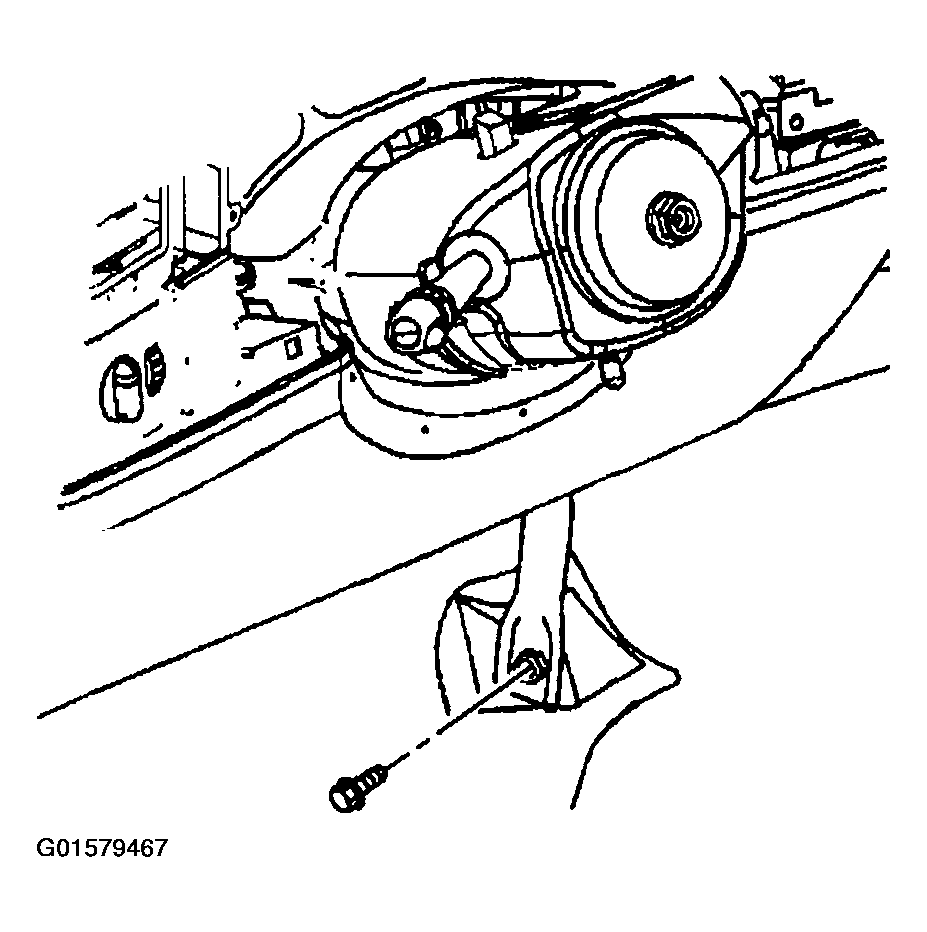

    Fig 4: Installing I/P Center Support Bracket Bolt
    G01579467Courtesy of GENERAL MOTORS CORP.
  5. Install the I/P center support bracket bezel (1).

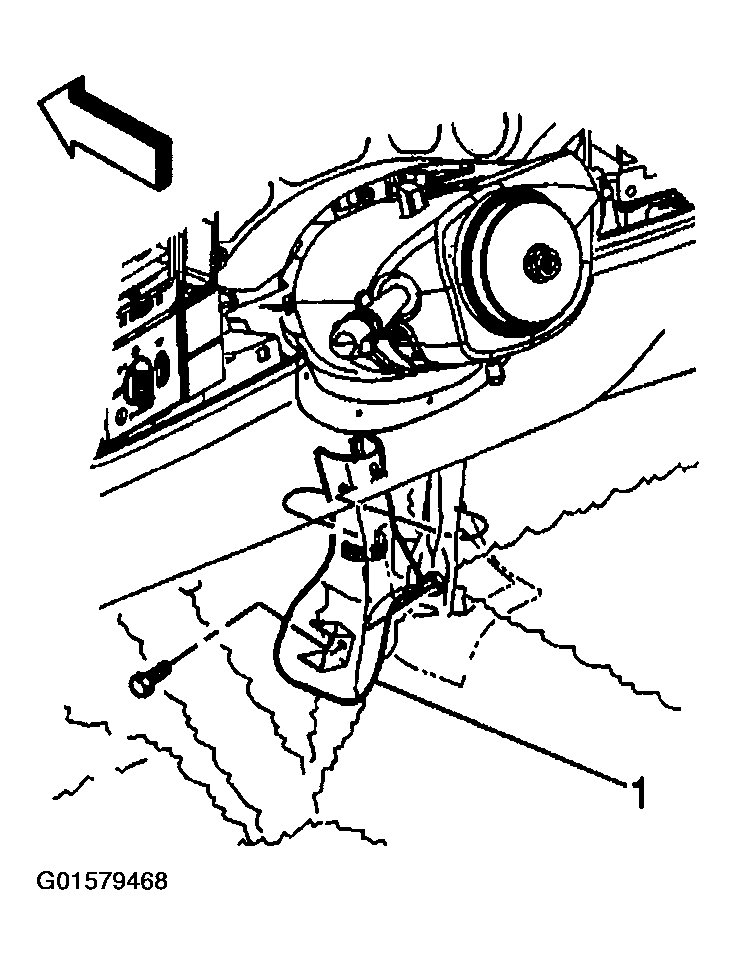

    Fig 5: Installing I/P Center Support Bracket Bezel
    G01579468Courtesy of GENERAL MOTORS CORP.
  6. Install the right side of the carrier to the vehicle, if the HVAC module was removed.

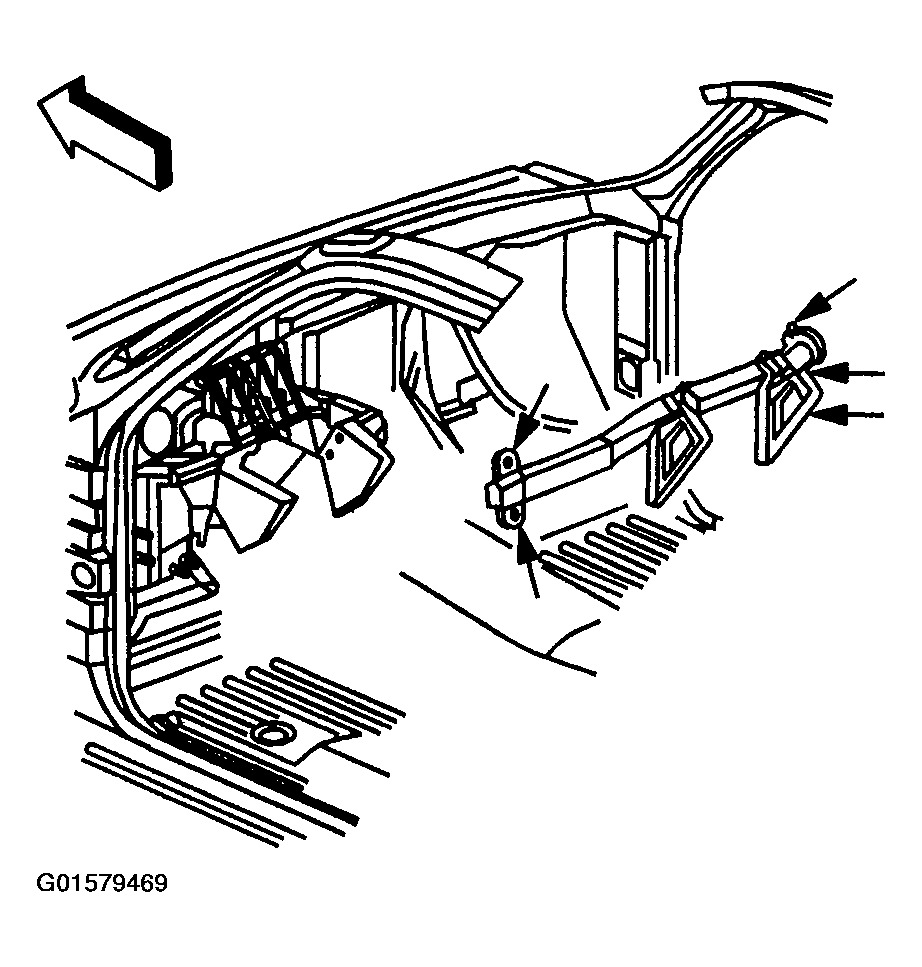

    7. Fig 6: Installing Right Side Of Carrier
    G01579469Courtesy of GENERAL MOTORS CORP.
  7. Install the retaining bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  8. Attach the I/P harness to the carrier.
  9. Install the amplifier, if equipped. Refer to in AMPLIFIER REPLACEMENT .
  10. Install the cross car duct. Refer to AIR DISTRIBUTOR DUCT REPLACEMENT .
  11. Install the antenna cable to the cross car duct.
  12. Install the transfer case control module to the bracket, if equipped. Refer to TRANSFER CASE SHIFT CONTROL MODULE REPLACEMENT .
  13. Connect all of the electrical connectors to the wiring harness junction block. Refer to BODY WIRING HARNESS JUNCTION BLOCK REPLACEMENT .
  14. Install the I/P upper brackets.

    Tighten

    Tighten the retaining bolts to 2 N.m (18 lb in).

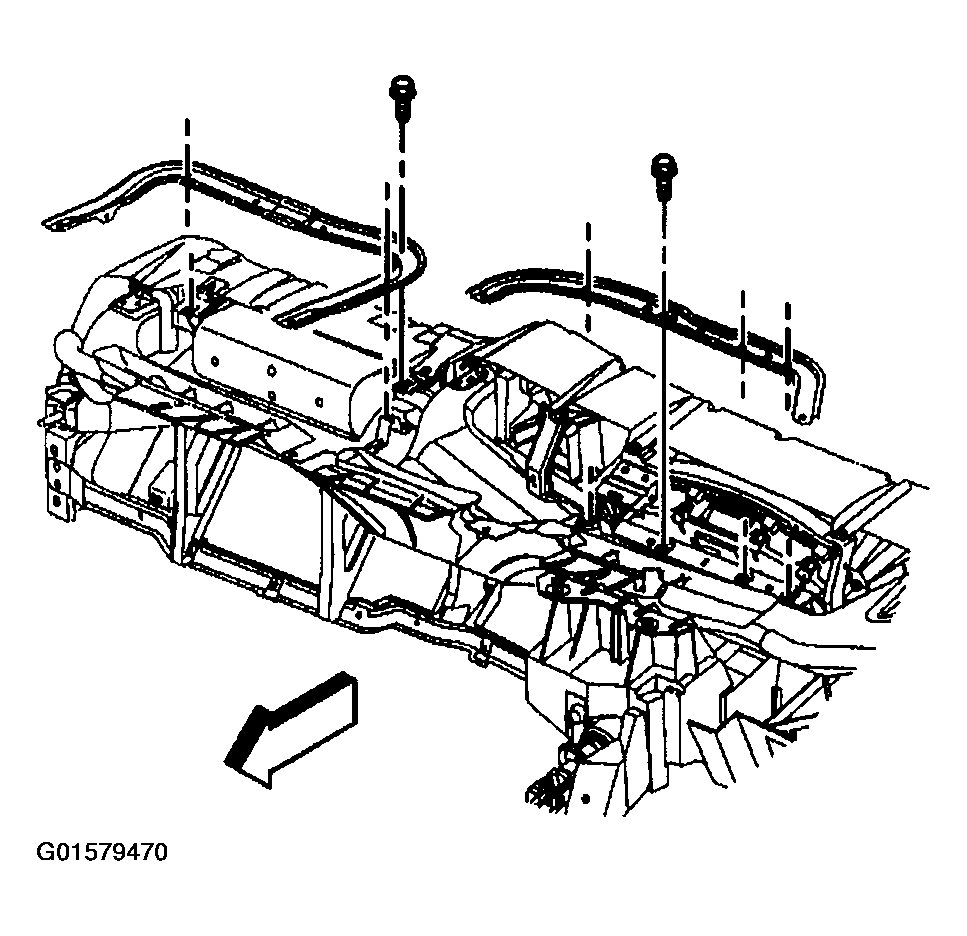

    Fig 7: Installing I/P Upper Brackets & Bolts
    G01579470Courtesy of GENERAL MOTORS CORP.
  15. Install the I/P assembly to the vehicle.
  16. Install the I/P assembly retaining bolts (3) and nuts (4).

    Ensure the wire harness is routed to all of the openings.

    Tighten

    Tighten the retaining bolts and nuts to 9 N.m (80 lb in).

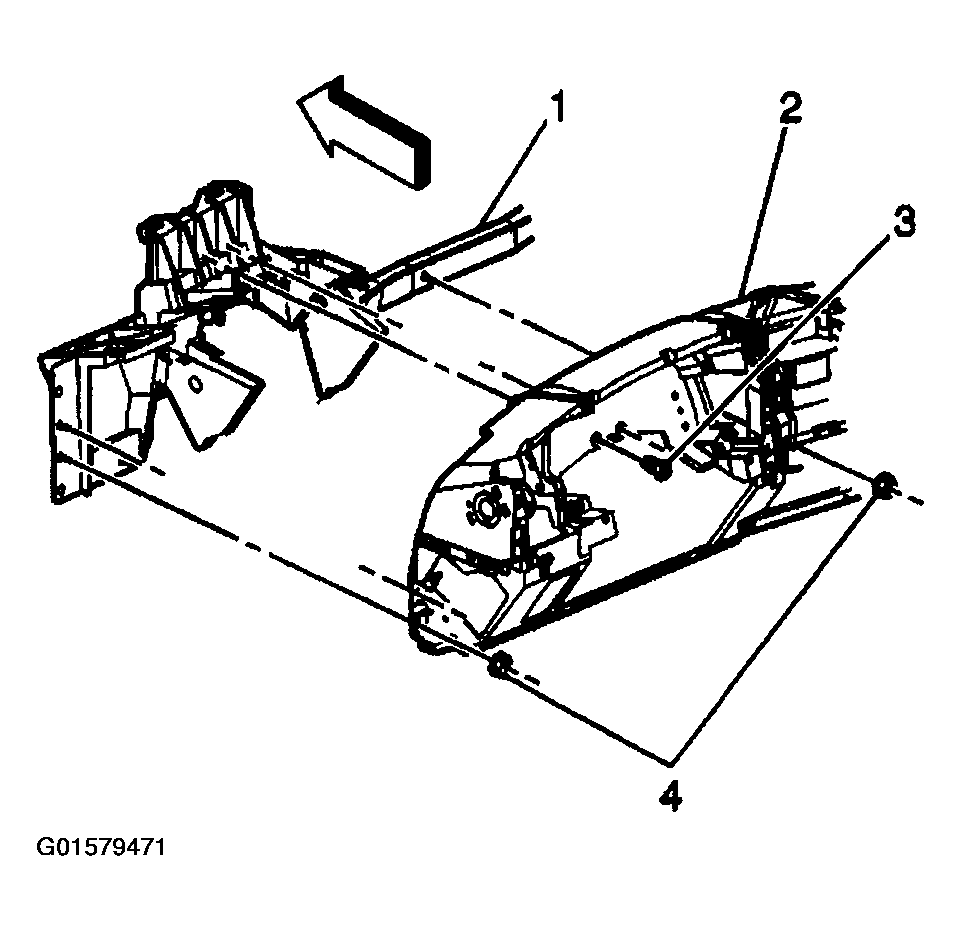

    Fig 8: Installing I/P Assembly Retaining Bolts & Nuts
    G01579471Courtesy of GENERAL MOTORS CORP.
  17. Install the harness hold down retainers to the I/P assembly.
  18. Install the harness to the I/P. Refer to INSTRUMENT PANEL ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT - LEFT or INSTRUMENT PANEL ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT - RIGHT .
  19. Install both front window air duct to the I/P assembly.
  20. Install the I/P cluster assembly. Refer to Instrument Panel Cluster (IPC) Replacement   .
  21. Install the park brake release lever to the I/P. Refer to PARK BRAKE RELEASE HANDLE ASSEMBLY .
  22. Install the data link connector to the I/P. Refer to DATA LINK CONNECTOR REPLACEMENT .
  23. Install the remote control door lock receiver module, if equipped. Refer to REMOTE CONTROL DOOR LOCK RECEIVER REPLACEMENT .
  24. Install the CIM, if equipped. Refer to COMMUNICATION INTERFACE MODULE REPLACEMENT .
  25. Install the steering column. Refer to STEERING COLUMN REPLACEMENT .
  26. Install the left air louver housing. Refer to DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - LEFT .
  27. Install the accessory switch housing. Refer to Accessory Switch Replacement   .
  28. Install the HVAC control. Refer to HVAC CONTROL MODULE REPLACEMENT for Automatic or HVAC CONTROL MODULE REPLACEMENT for Manual.
  29. Install the radio. Refer to RADIO REPLACEMENT (NON-DIGITAL RADIO) or RADIO REPLACEMENT (DIGITAL RADIO) .
  30. Install the passenger side airbag module. Refer to REMOVAL & INSTALLATION (PASSENGER-SIDE) .
  31. Install the lower trim panel. Refer to Instrument Panel (I/P) Trim Panel Replacement-Lower   .
  32. Install the driver side knee bolster. Refer to Knee Bolster Replacement   .
  33. Install the center console, if equipped. Refer to Console Replacement (Except PRO)   or Console Replacement (PRO)   .
  34. Install the I/P trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Upper   .
  35. Connect the negative battery cable.
