Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove both the passenger side air deflector louvers. Refer to DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - RIGHT .
  2. From the air deflector louver opening, press the release tabs on the instrument panel assist handle retainers on both sides.
  3. Pull the assist handle from the instrument panel.

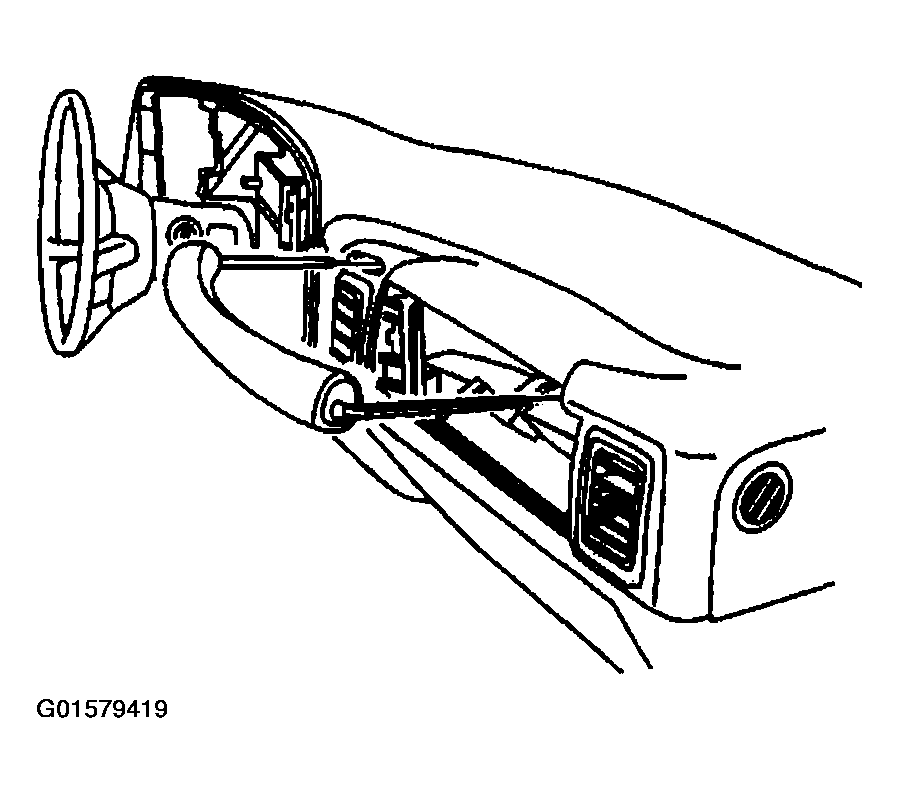

    Fig 1: Instrument Panel (I/P) Assist Handle
    G01579419Courtesy of GENERAL MOTORS CORP.
