Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the instrument panel assist handle by pushing until it locks into place.
  2. Install both the passenger side air deflector louvers. Refer to DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - RIGHT .

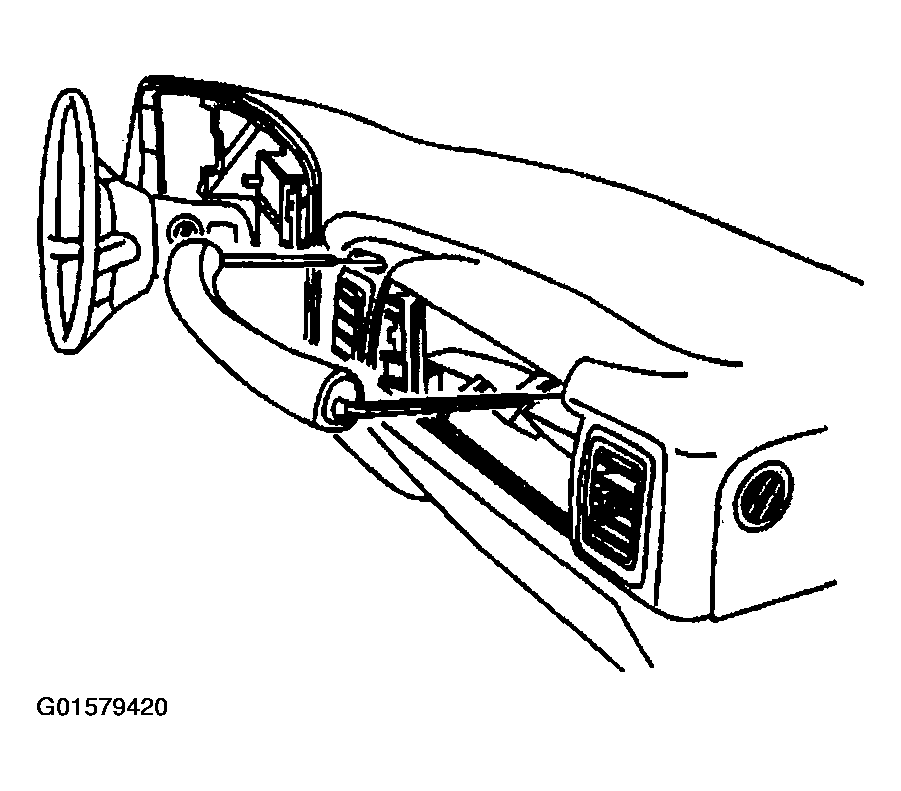

    Fig 1: Instrument Panel (I/P) Assist Handle
    G01579420Courtesy of GENERAL MOTORS CORP.
