Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the console lid and remove the four retaining screws.
  2. Remove the console door from the console.

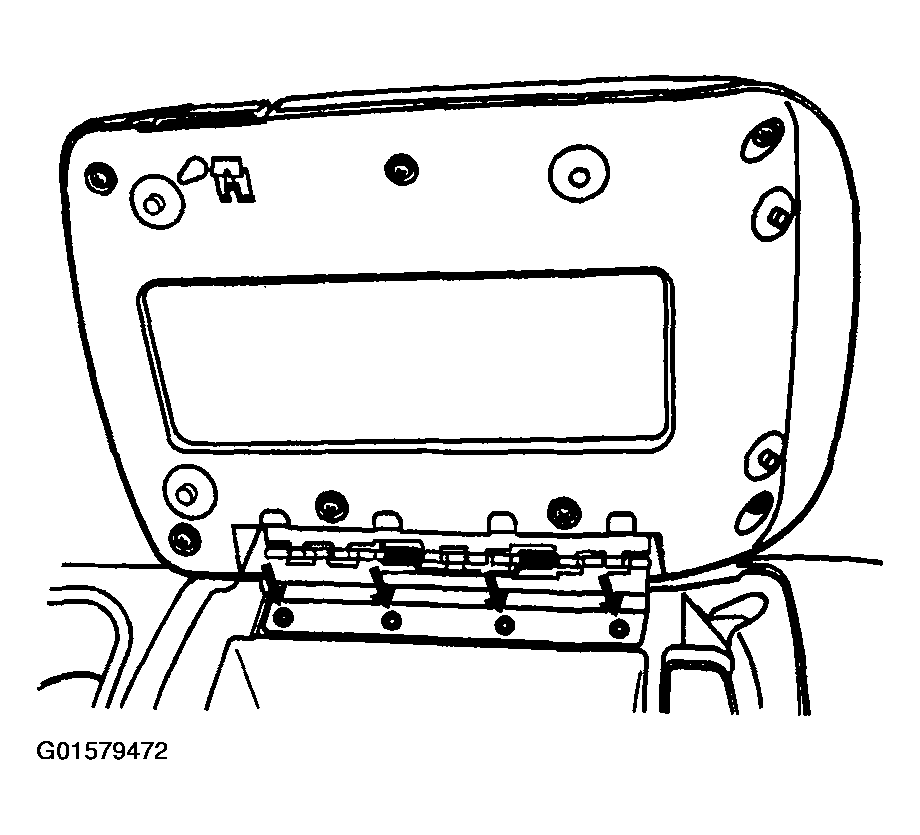

    Fig 1: Door Console Compartment
    G01579472Courtesy of GENERAL MOTORS CORP.
