Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the console door to the console.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the four retaining screws.

    Tighten

    Tighten the four retaining screws to 1.6 N.m (14 lb in).

  3. Close the lid and ensure the lid is properly aligned.

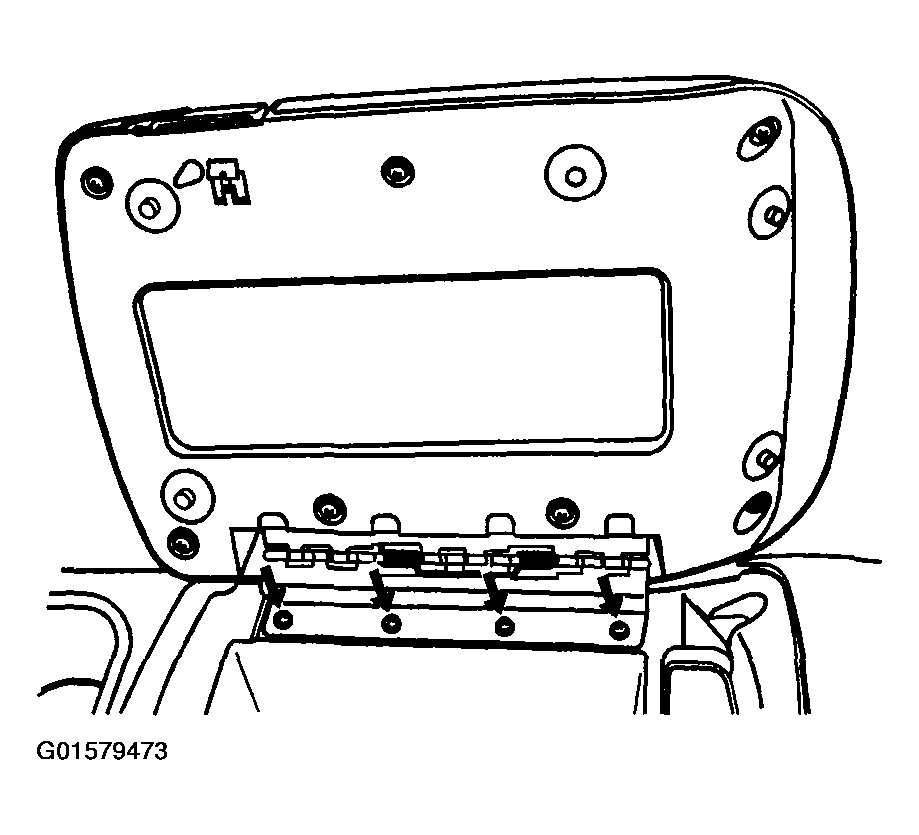

    Fig 1: Door Console Compartment
    G01579473Courtesy of GENERAL MOTORS CORP.
