Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install one of the hinge in the opening in the panel.
  2. Swing the cupholder assembly so that the other hinge can be installed in the other opening.
  3. Inspect for correct operation.

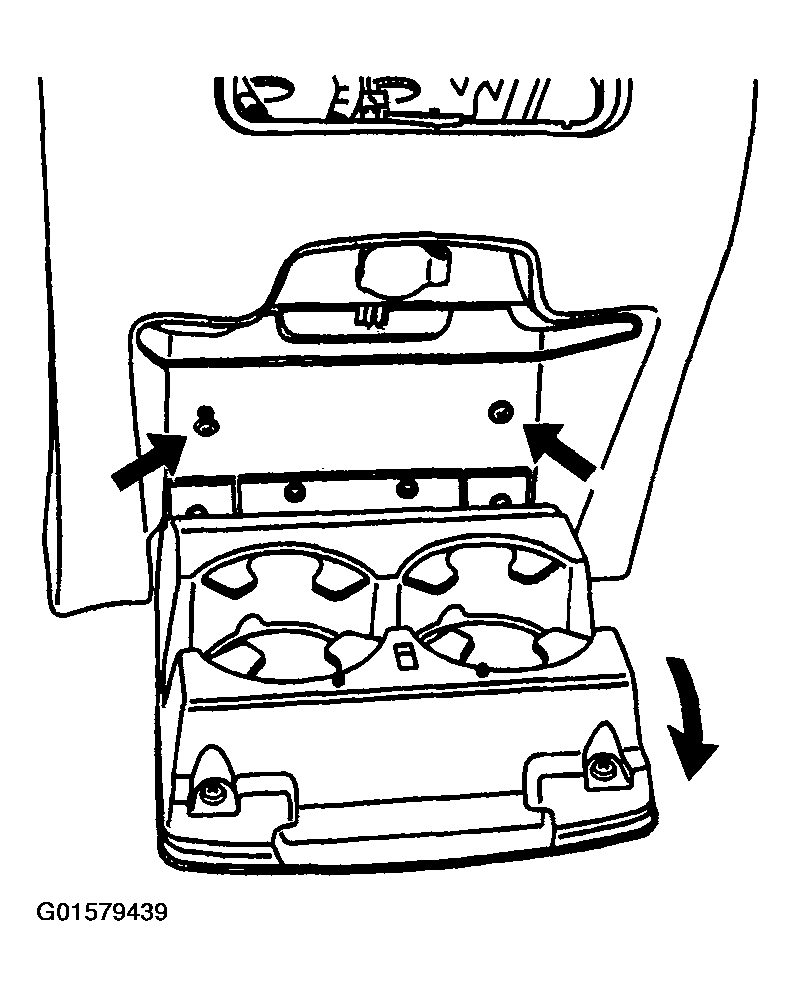

    Fig 1: Rear Cupholder
    G01579439Courtesy of GENERAL MOTORS CORP.
