Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a flat bladed tool between the cupholder and console in order to pry the cupholder assembly out.
  2. Lift the cupholder assembly slightly in order to disconnect the electrical connectors.
  3. Remove the cupholder from the console.
  4. Remove the switches from the cupholder assembly. Refer to Switch Replacement - Hot And Cold Cupholder   .
  5. Remove the screws retaining the beverage-mate to the cupholder.
  6. Remove the beverage-mate.

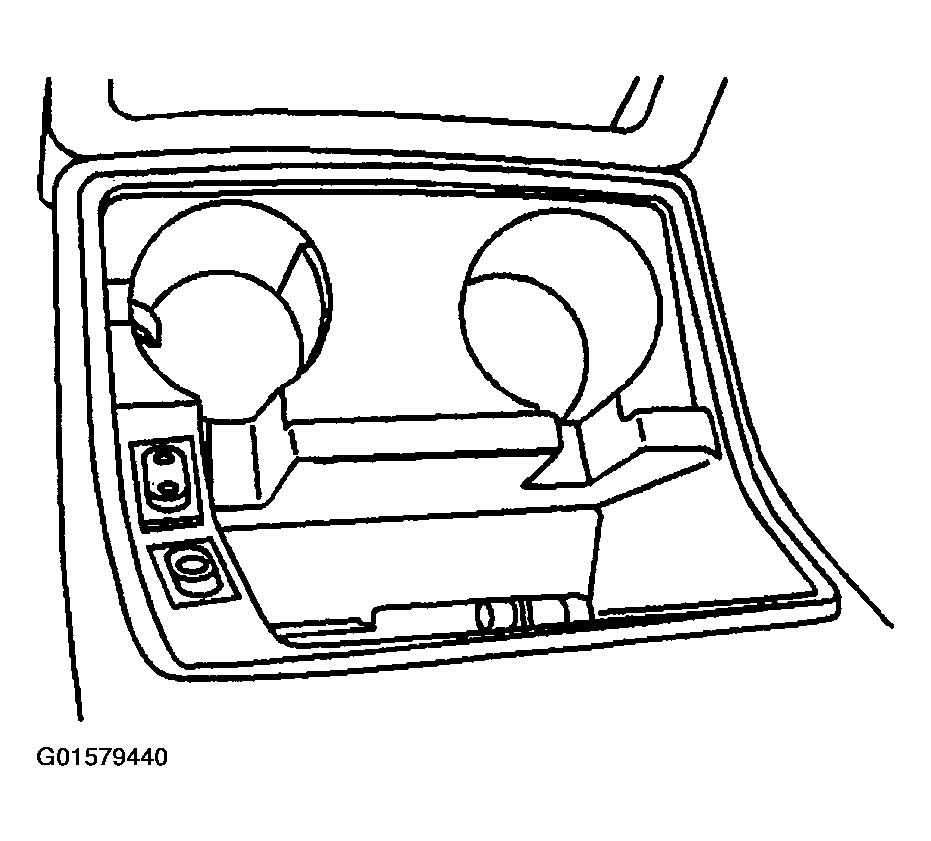

    Fig 1: Pro Cupholder
    G01579440Courtesy of GENERAL MOTORS CORP.
