Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the beverage-mate to the cupholder.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the retaining screws.

    Tighten

    Tighten the retaining screws to 1.6 N.m (14 lb in).

  3. Install the switches to the cupholder assembly. Refer to Switch Replacement - Hot And Cold Cupholder   .
  4. Connect the wire connectors to the switches.
  5. Install the cupholder assembly to the console by pressing downwards until fully seated.

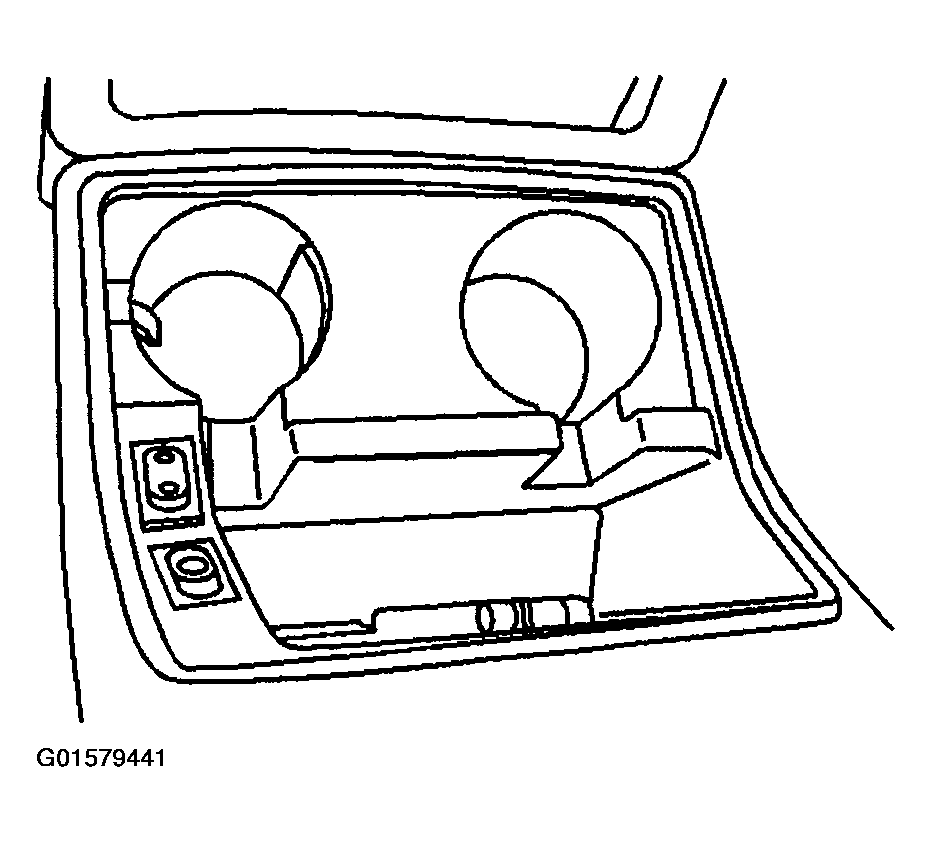

    Fig 1: Pro Cupholder
    G01579441Courtesy of GENERAL MOTORS CORP.
