Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cup holder by pushing inwards till the clips (1) click in place.
  2. Ensure around the corners of the cup holder is seated properly.

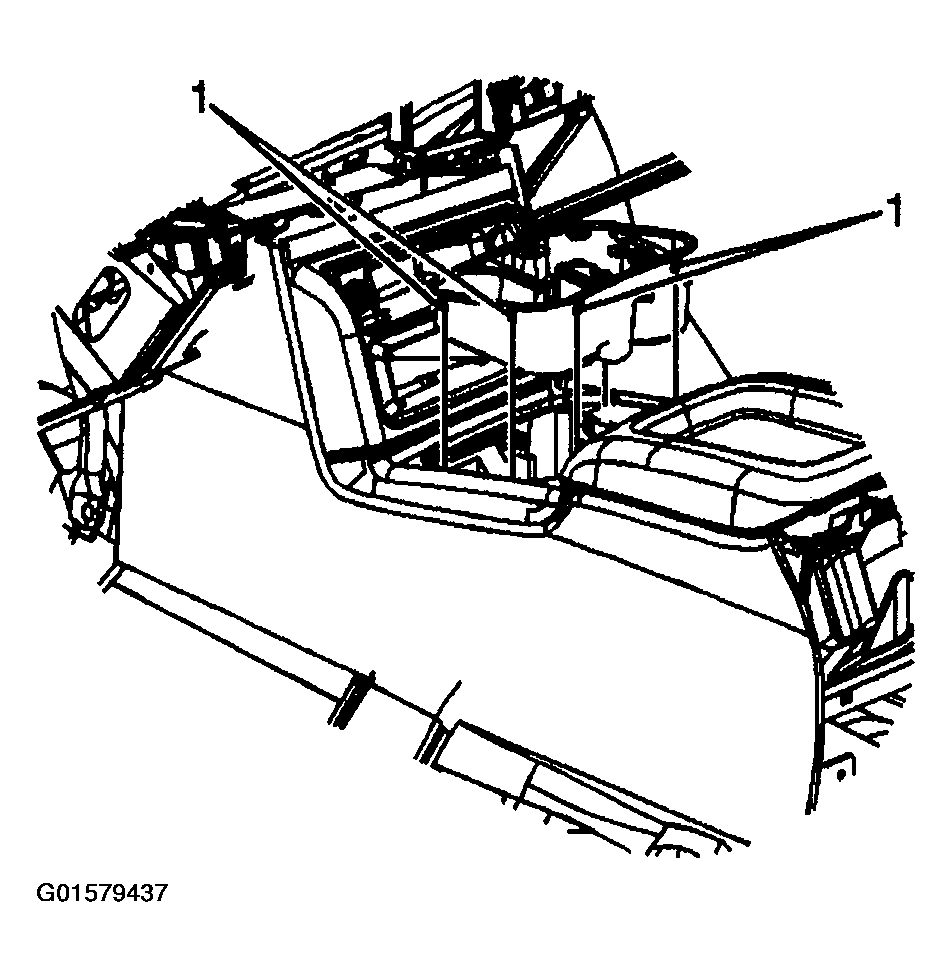

    Fig 1: Non-Luxury Cupholder
    G01579437Courtesy of GENERAL MOTORS CORP.
