Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper trim bezel from the center console. Refer to Bezel Replacement-Floor Console (Non-Luxury Upper)   or  Bezel Replacement - Floor Console (Luxury Upper)   or  Bezel Replacement-Floor Console (Non-Lux Lower)   .
  2. Insert a flat bladed tool between the console and cupholder assembly.
  3. Remove the cupholder assembly by prying the cupholder to release the clips (2).
  4. Remove the wire connector for the cupholder.
  5. Remove the cupholder from the console.

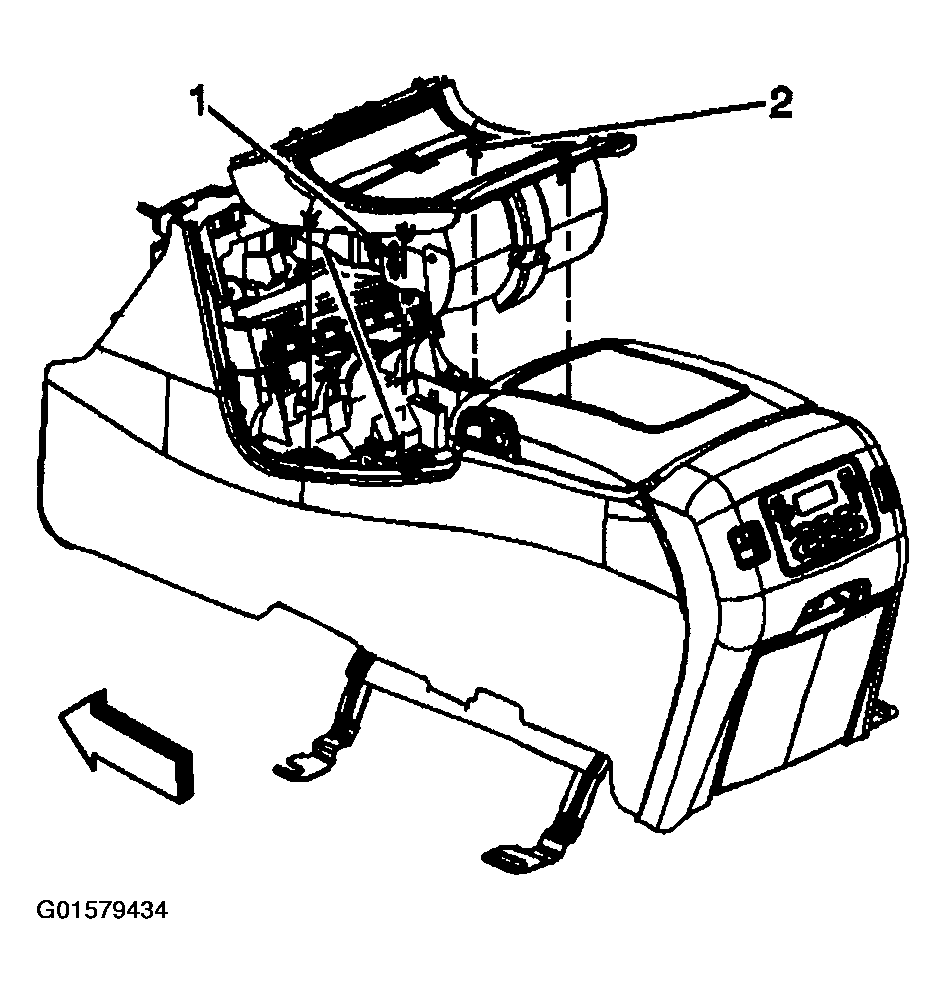

    Fig 1: Luxury Cupholder
    G01579434Courtesy of GENERAL MOTORS CORP.
