Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

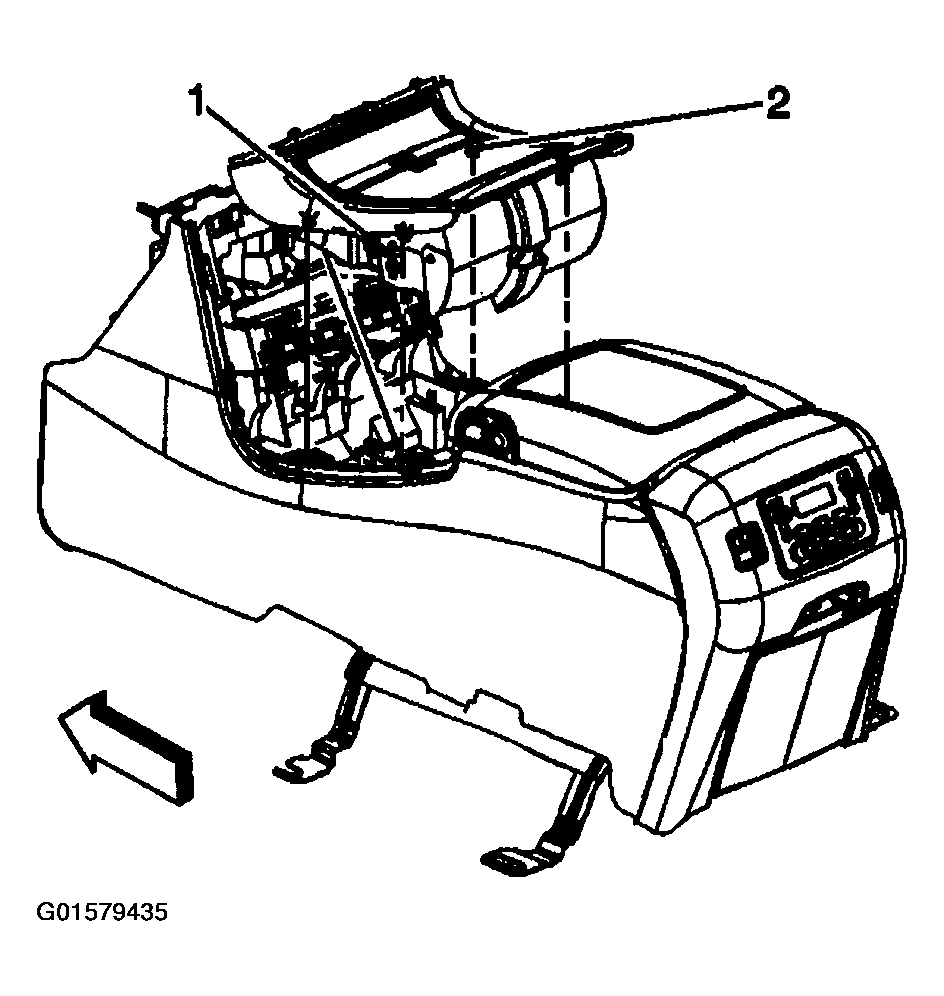

- Place the cupholder assembly over the console.
- Connect the wire connector to the cupholder assembly.
- Push on the corners of the cupholder assembly till all the retaining clips (2) are seated.
- Install the upper trim bezel. Refer to Bezel Replacement - Floor Console (Non-Luxury Upper) or Bezel Replacement - Floor Console (Luxury Upper) or Bezel Replacement - Floor Console (Non-Lux Lower) .
