Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the console bin and lid assembly over the console in order to route the electrical cord to the console bin.
  2. Install the console bin and lid assembly to the console.
    NOTE: Refer to FASTENER NOTICE .
    IMPORTANT: Ensure the rear bolts has the bigger washer.
  3. Install the 4 console bin retaining bolts (1).

    Tighten

    Tighten the 4 bolts to 3.5 N.m (35 lb in).

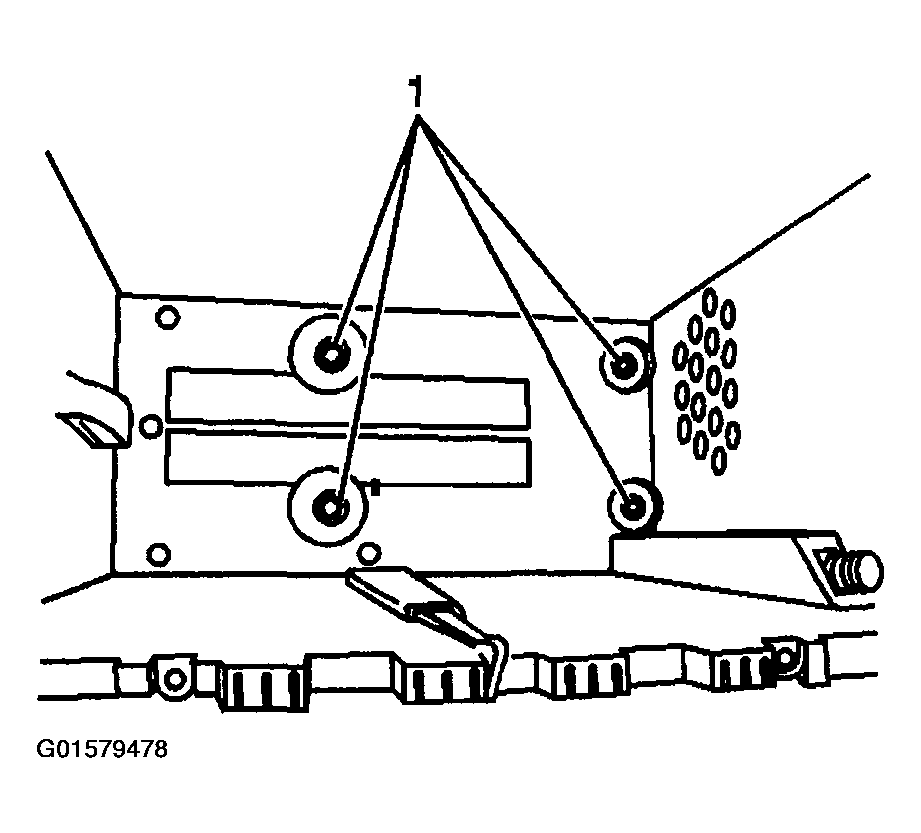

    Fig 1: Installing Console Bin Retaining Bolts
    G01579478Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the longer screws is installed in the front of the console bin.
  4. Install the 6 retaining screws (1).

    Tighten

    Tighten the 6 screws to 1.6 N.m (14 lb in)

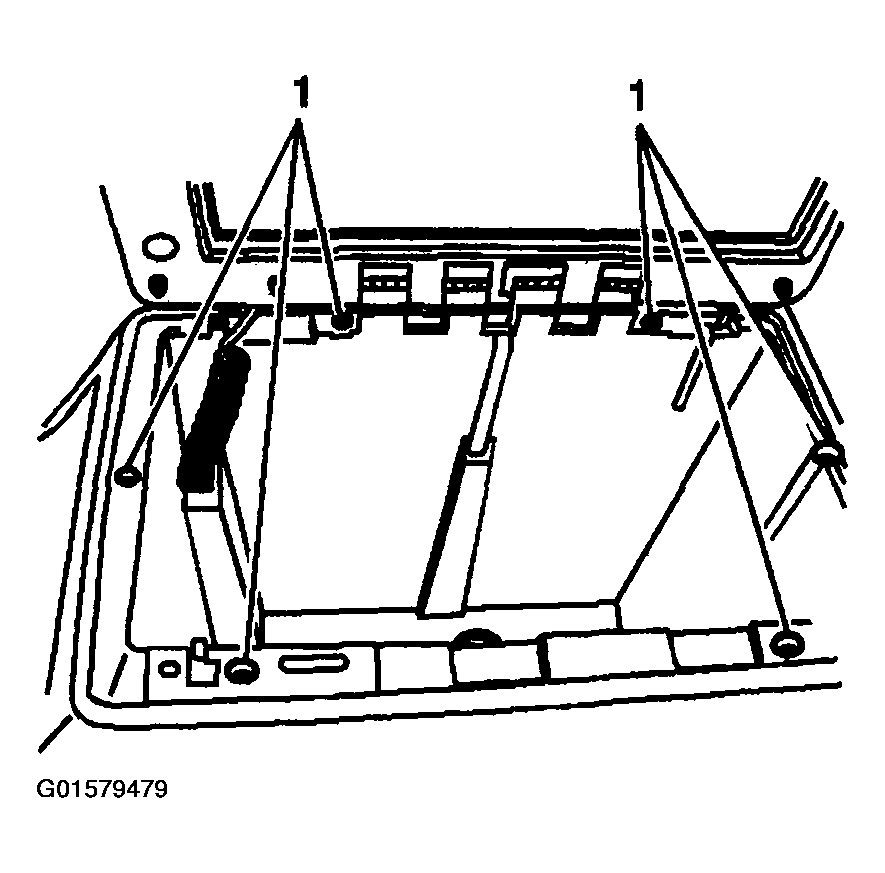

    Fig 2: Installing Retaining Screws
    G01579479Courtesy of GENERAL MOTORS CORP.
