Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console compartment door. Refer to Door Replacement - Console Compartment   .
  2. Remove the bin retaining screws.
  3. Remove the 4 lower bolts.
  4. Remove the storage bin from the console.

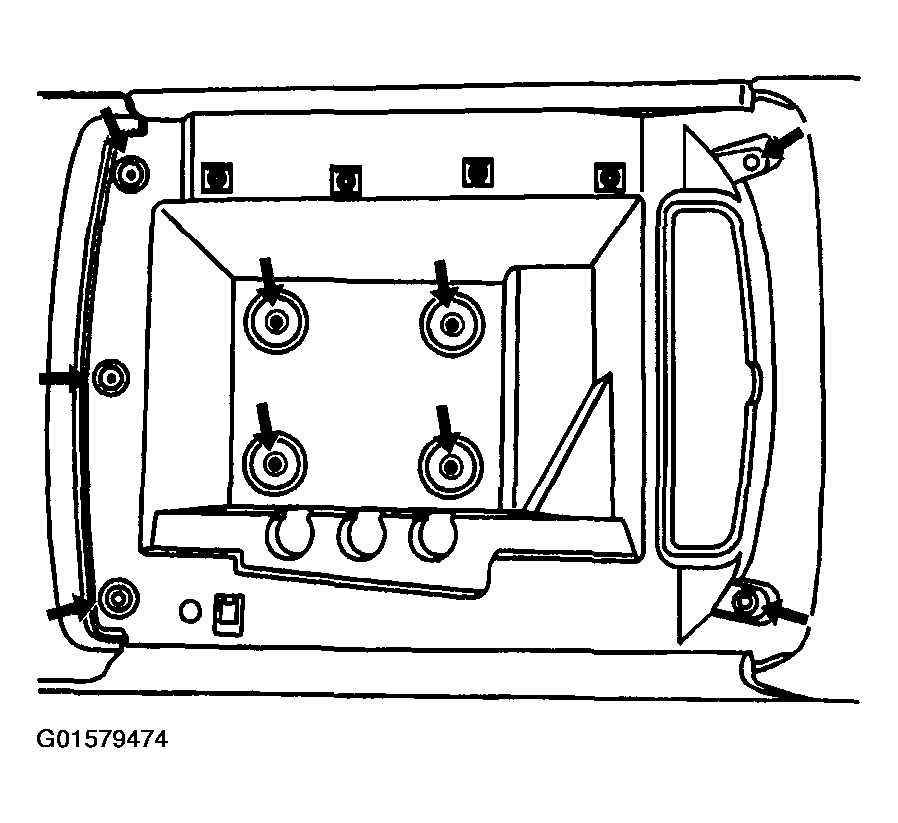

    Fig 1: Console Storage Bin (Except Pro)
    G01579474Courtesy of GENERAL MOTORS CORP.
