Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the storage bin in the console.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bin retaining screws.

    Tighten

    Tighten the retaining screws to 1.6 N.m (14 lb in).

  3. Install the 4 lower bolts

    Tighten

    Tighten the 4 bolts to 3.5 N.m (31 lb in).

  4. Install the console compartment door. Refer to Door Replacement - Console Compartment   .

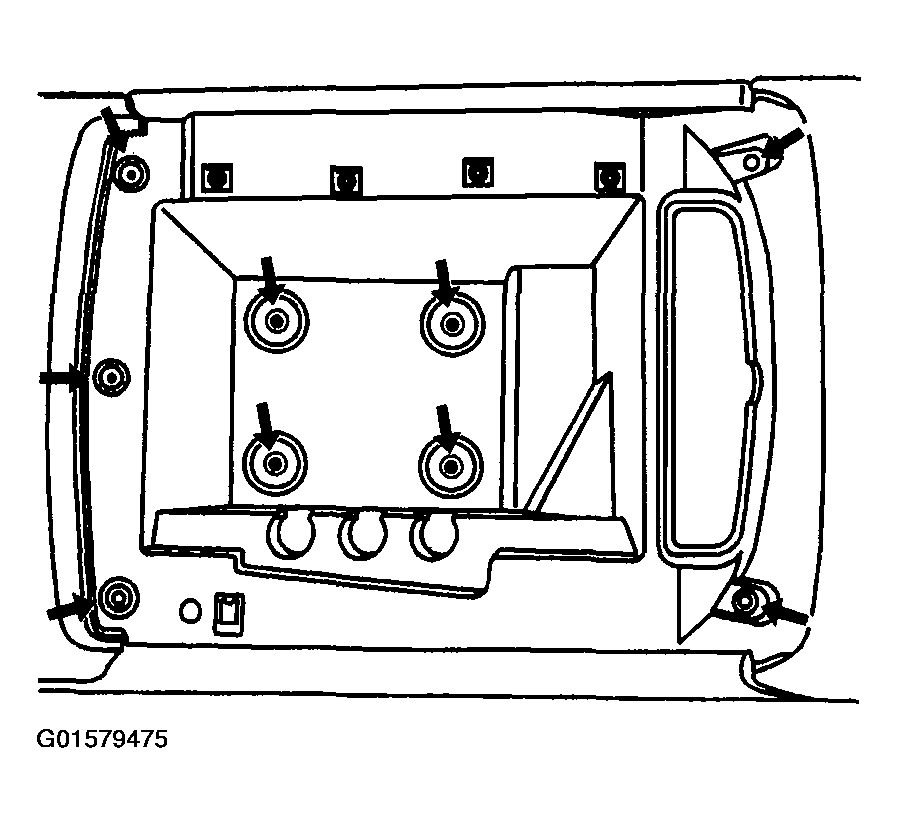

    Fig 1: Console Storage Bin (Except Pro)
    G01579475Courtesy of GENERAL MOTORS CORP.
