Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove both front seats. Refer to SEAT REPLACEMENT-FRONT BUCKET .
  2. Remove the upper console bezel. Refer to Bezel Replacement - Floor Console (Non-Luxury Upper)   or Bezel Replacement - Floor Console (Luxury Upper)   or Bezel Replacement - Floor Console (Non-Lux Lower)   .
  3. Remove the cupholder. Refer to Cupholder Replacement (Luxury)   or Cupholder Replacement (Non-Luxury)   or Cupholder Replacement (Rear)   or Cupholder Replacement (PRO)   .
  4. Remove the screws (1) retaining the console to the I/P.
  5. Move the console assembly rearwards in order to disconnect the wire connectors.
  6. Remove the console assembly from the vehicle.
  7. Remove the rear seat audio control from the console, if equipped. Refer to AUDIO CONTROL REPLACEMENT-REAR SEAT .

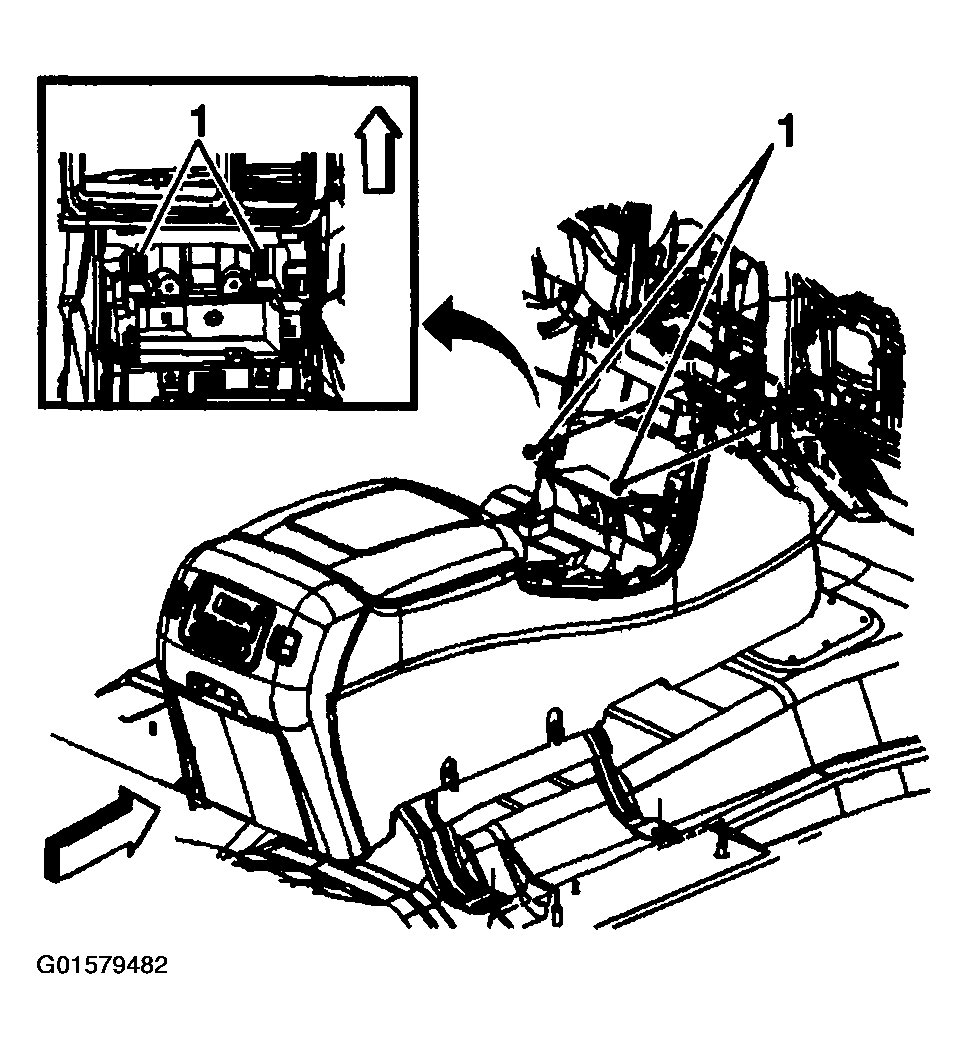

    8. Fig 1: Console (Except Pro)
    G01579482Courtesy of GENERAL MOTORS CORP.
