Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat audio control to the console, if equipped. Refer to AUDIO CONTROL REPLACEMENT-REAR SEAT .
  2. Install the console in the vehicle.
  3. Connect the wire connectors.
  4. Move the console forward in order to install the retaining screws.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the 2 screws (1).

    Tighten

    Tighten the screws to 4 N.m (35 lb in).

  6. Install the cupholder to the console. Refer to Cupholder Replacement (Luxury)   or Cupholder Replacement (Non-Luxury)   or Cupholder Replacement (Rear)   or Cupholder Replacement (Pro)   .
  7. Install the upper console bezel. Refer to Bezel Replacement - Floor Console (Non-Luxury Upper)   or Bezel Replacement - Floor Console (Luxury Upper)   or Bezel Replacement - Floor Console (Non-Lux Lower)   .
  8. Install both front seats. Refer to SEAT REPLACEMENT-FRONT BUCKET .

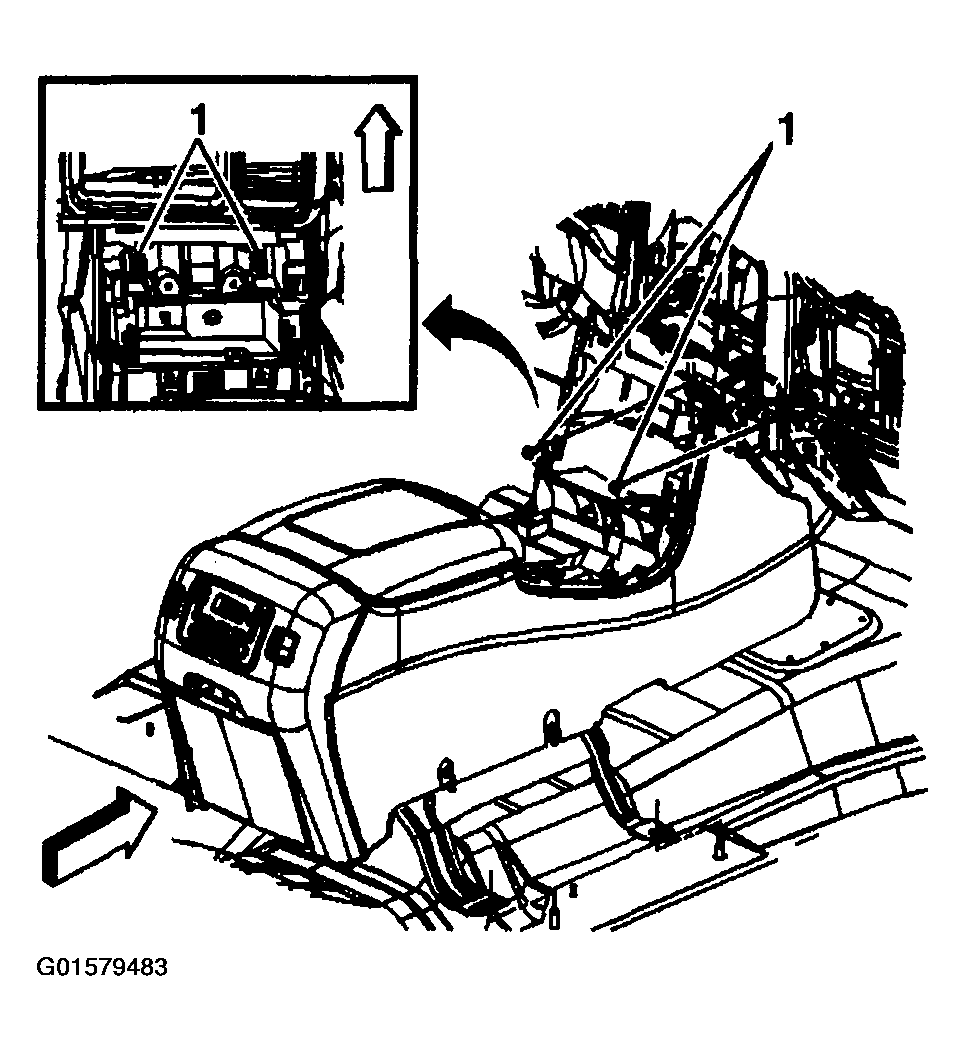

    9. Fig 1: Console (Except Pro)
    G01579483Courtesy of GENERAL MOTORS CORP.
