Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the IP compartment door.
  2. Drill out the 2 rivets (2).
  3. Remove IP storage compartment door retaining screws (1) from the instrument panel.
  4. Remove the IP compartment door.

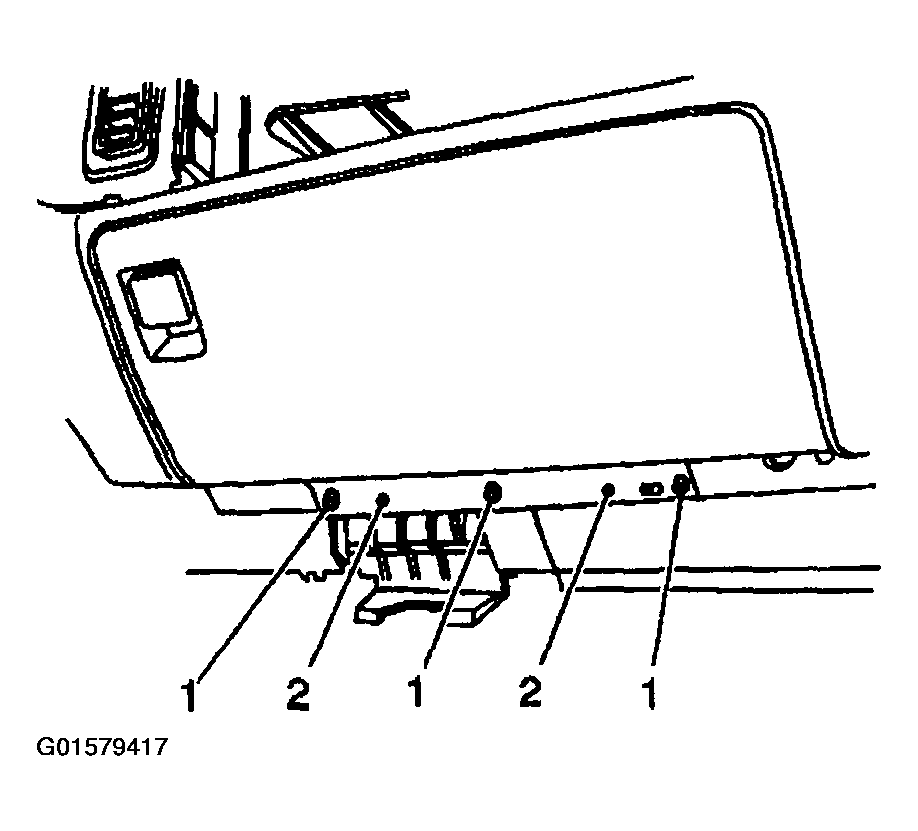

    Fig 1: Instrument Panel (I/P) Compartment
    G01579417Courtesy of GENERAL MOTORS CORP.
