Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the IP compartment door.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the IP compartment retaining screws (1) to the instrument panel.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

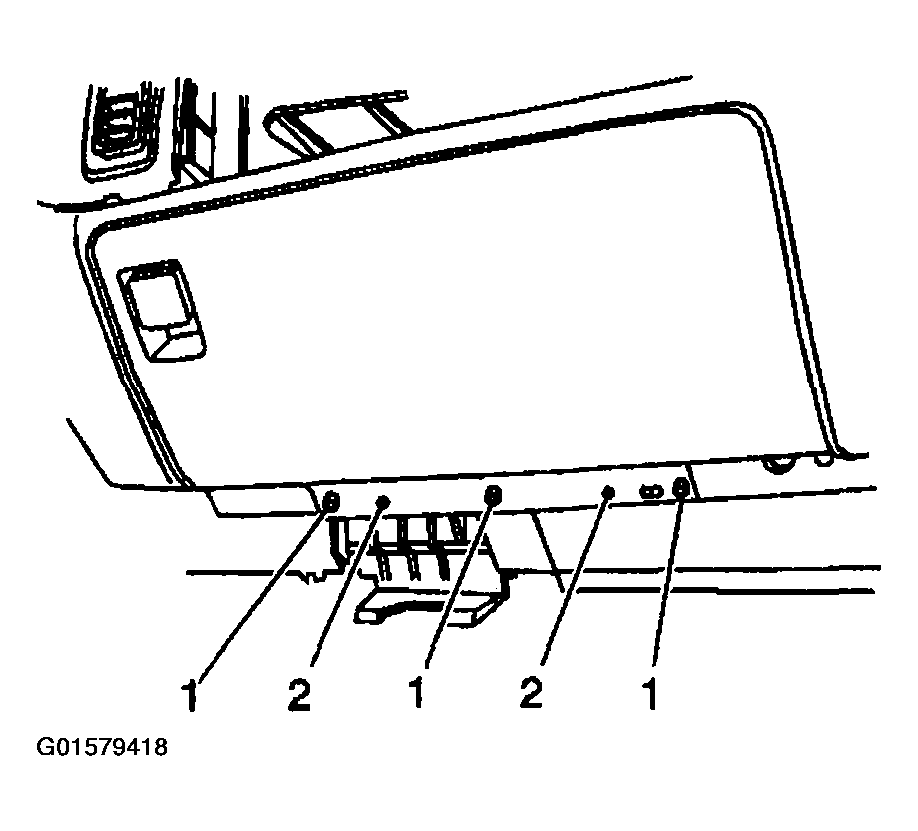

    Fig 1: Instrument Panel (I/P) Compartment
    G01579418Courtesy of GENERAL MOTORS CORP.
