Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the storage bin. Refer to Console Storage Bin Replacement (Expect Pro)   or Console Storage Bin Replacement (Pro)   .
  2. Remove the rear cupholder from the end panel. Refer to Cupholder Replacement (Luxury)   or Cupholder Replacement (Non-Luxury)   or Cupholder Replacement (Rear)   or Cupholder Replacement (Pro)   .
  3. Remove the 2 retaining screws.

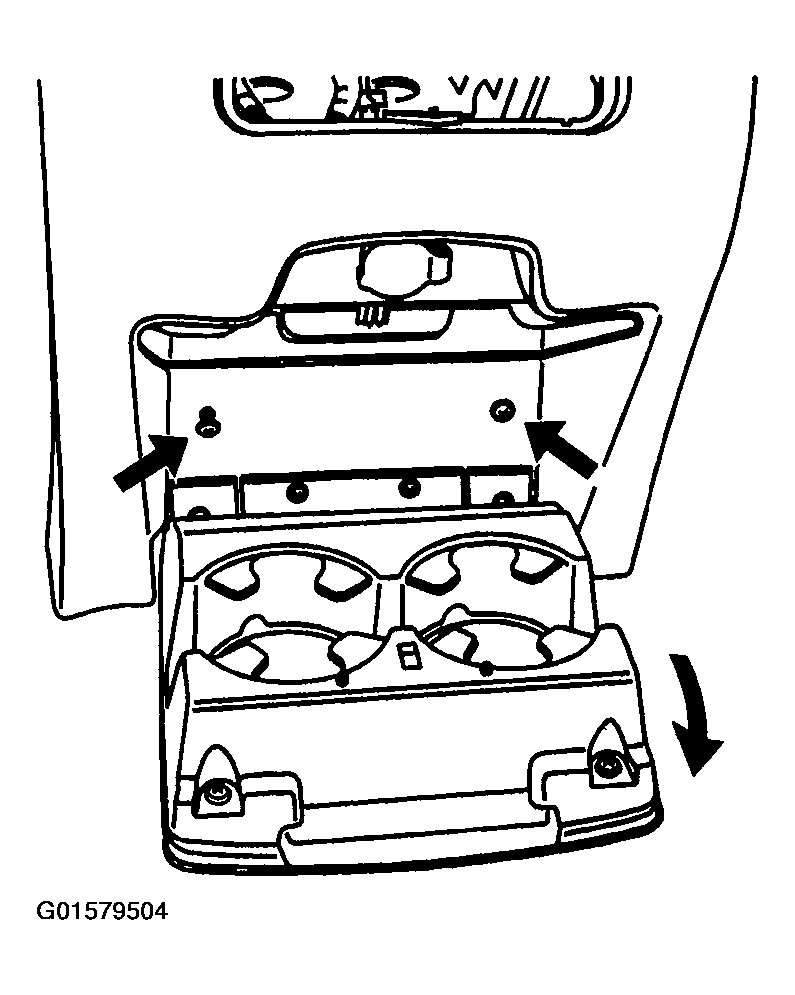

    Fig 1: Removing Retaining Screws
    G01579504Courtesy of GENERAL MOTORS CORP.
  4. Remove the top 2 retaining screws.
  5. Move the end panel rearwards to gain access to the electrical connectors.
  6. Remove the end panel from the console.
  7. Remove the rear seat heater switch, if equipped. Refer to HEATED SEAT SWITCH REPLACEMENT-REAR .
  8. Remove the rear seat audio controls, if equipped. Refer to AUDIO CONTROL REPLACEMENT-REAR SEAT .
  9. Remove the power outlets from the end panel, if equipped. Refer to 12-Volt Power Supply Replacement   .

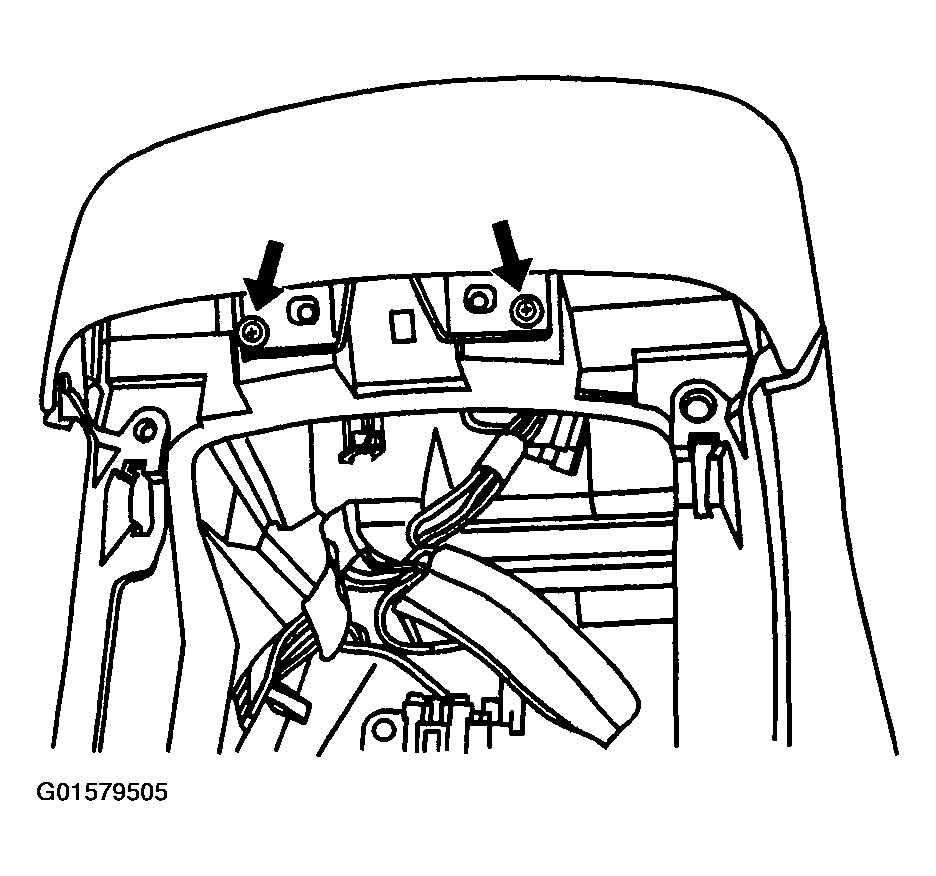

    Fig 2: Removing Top Retaining Screws
    G01579505Courtesy of GENERAL MOTORS CORP.
