Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P cluster bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster   .
  2. Insert a flat bladed tool between the Bezel assembly and the console.
  3. Pry the bezel from the console outwards partially in order to gain access to the connectors.

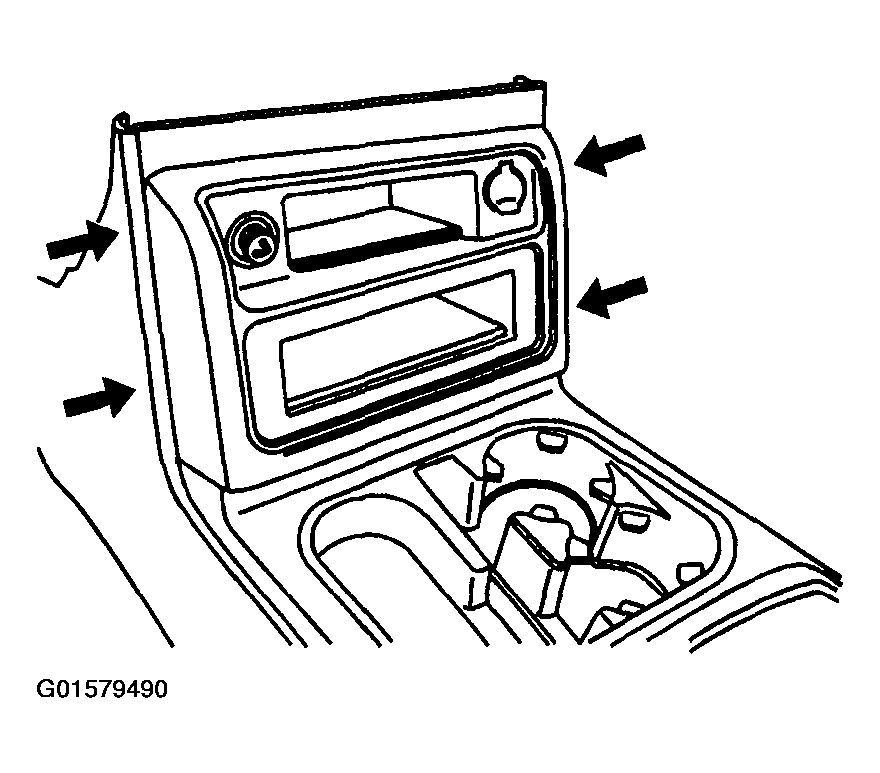

    Fig 1: Prying Bezel From Console
    G01579490Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors (1) and (2).
  5. Remove the bezel from the console.

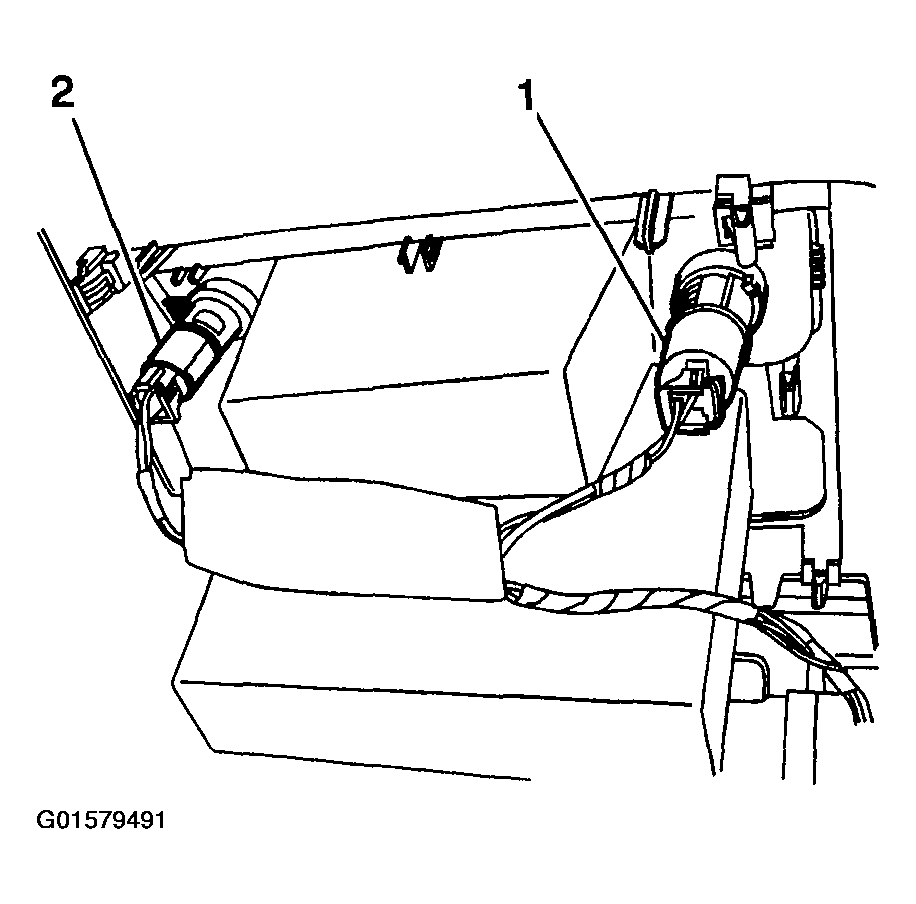

    Fig 2: Disconnecting Electrical Connectors
    G01579491Courtesy of GENERAL MOTORS CORP.
