Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bezel to the IP assembly.
  2. Attach the bezel to the IP assembly by pushing gently on the bezel till it is in place.
  3. Ensure all clips are in place.
  4. Tilt the steering wheel to the normal drive position.
  5. If equipped with an automatic transmission, move the shift lever to the park position.
  6. Disengage the parking brake.

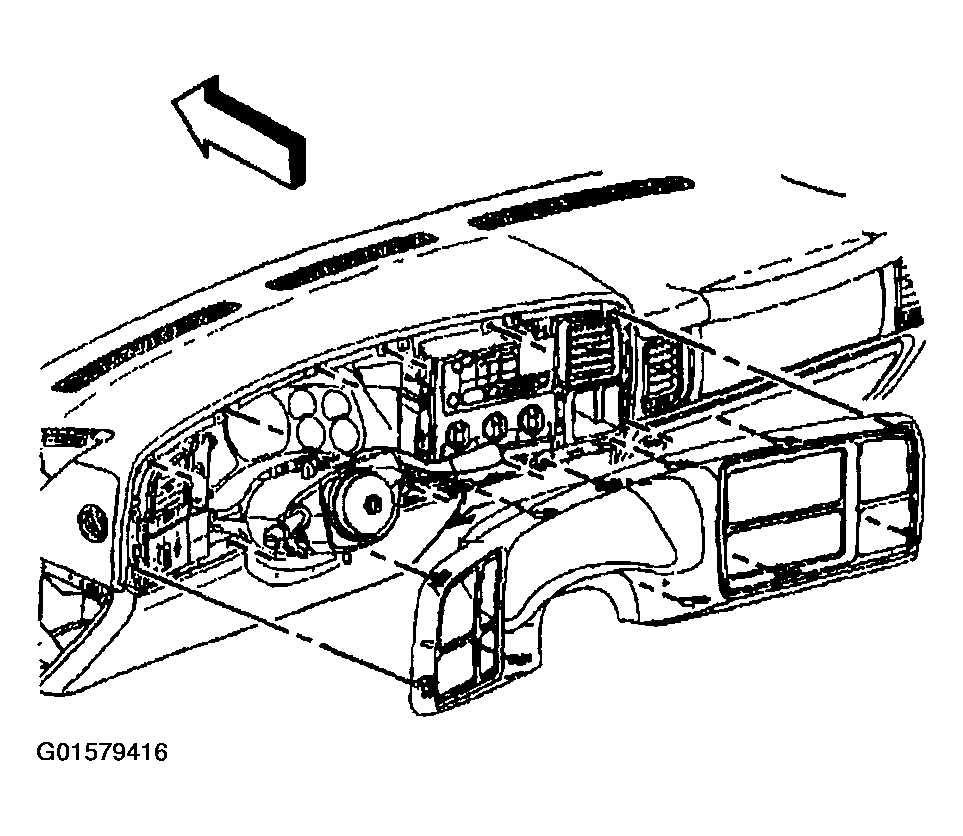

    Fig 1: Instrument Panel (I/P) Cluster Bezel
    G01579416Courtesy of GENERAL MOTORS CORP.
