Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ashtray assembly to the trim panel.
  2. Install new rivets (1) to attach the ashtray to the trim panel.

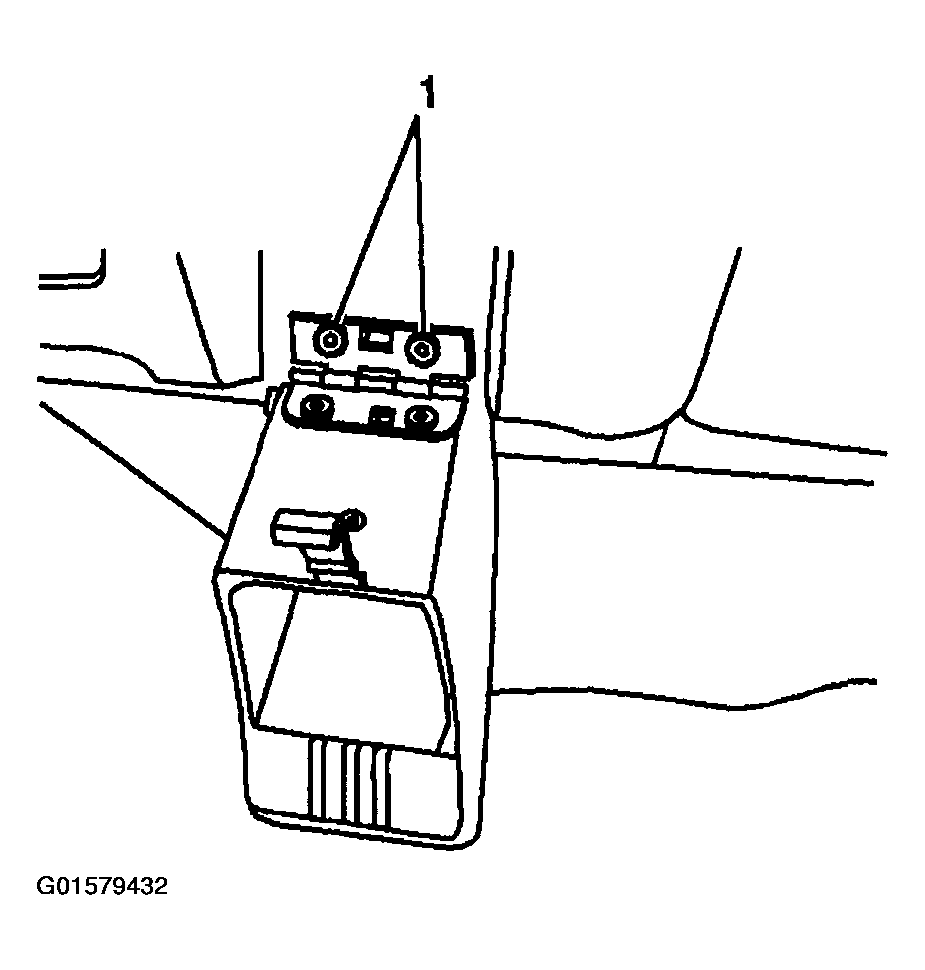

    Fig 1: Installing New Rivets
    G01579432Courtesy of GENERAL MOTORS CORP.
  3. Close the ashtray so that the tab (1) goes through the opening.
    Fig 2: Closing Ashtray
    G01579433Courtesy of GENERAL MOTORS CORP.
