Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP trim bezel. Refer to Bezel Replacement-Instrument Panel (I/P) Cluster
  2. Grasp the accessory switch assembly and pull outwards to remove the button assembly.
  3. Disconnect the electrical connectors for the switches in the assembly.
  4. Remove the switches and the button assembly.

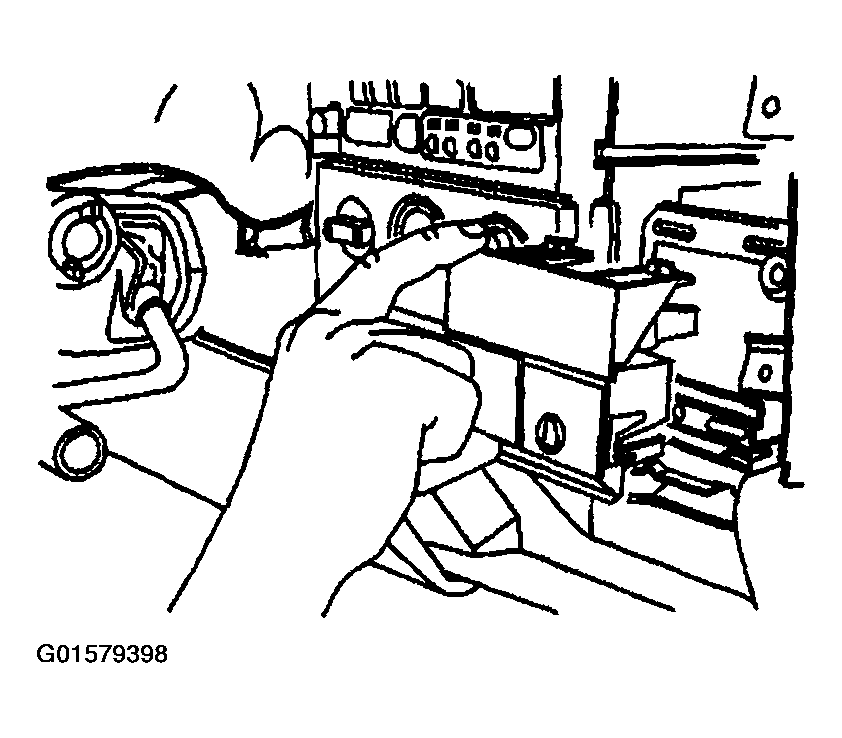

    Fig 1: Accessory Switch
    G01579398Courtesy of GENERAL MOTORS CORP.
