Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power supply fuse.
  2. Lift up the front cover of the socket.
  3. Insert the J 42059  into the socket sleeve. Tilt the tool so that the tool fits into the slots on the sides of the socket sleeve.

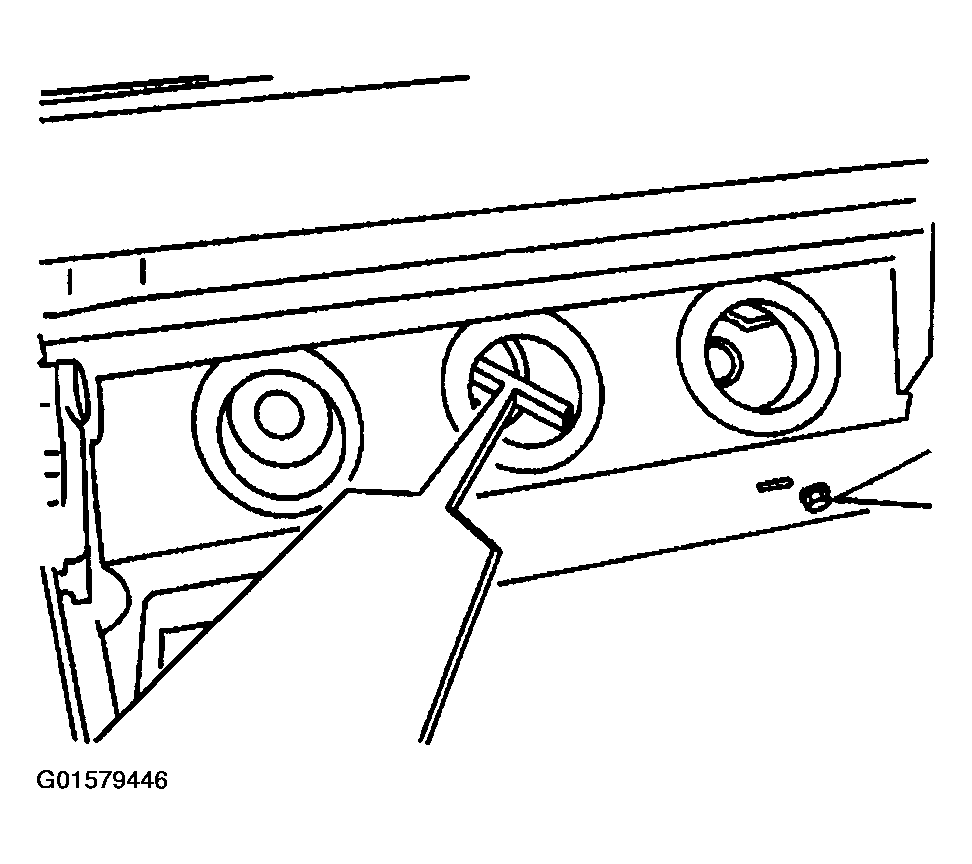

    Fig 1: Inserting J 42059 Into Socket Sleeve
    G01579446Courtesy of GENERAL MOTORS CORP.
  4. Hold the plastic ring in place. Pull the socket gently out of the assembly in order to remove the outlet.

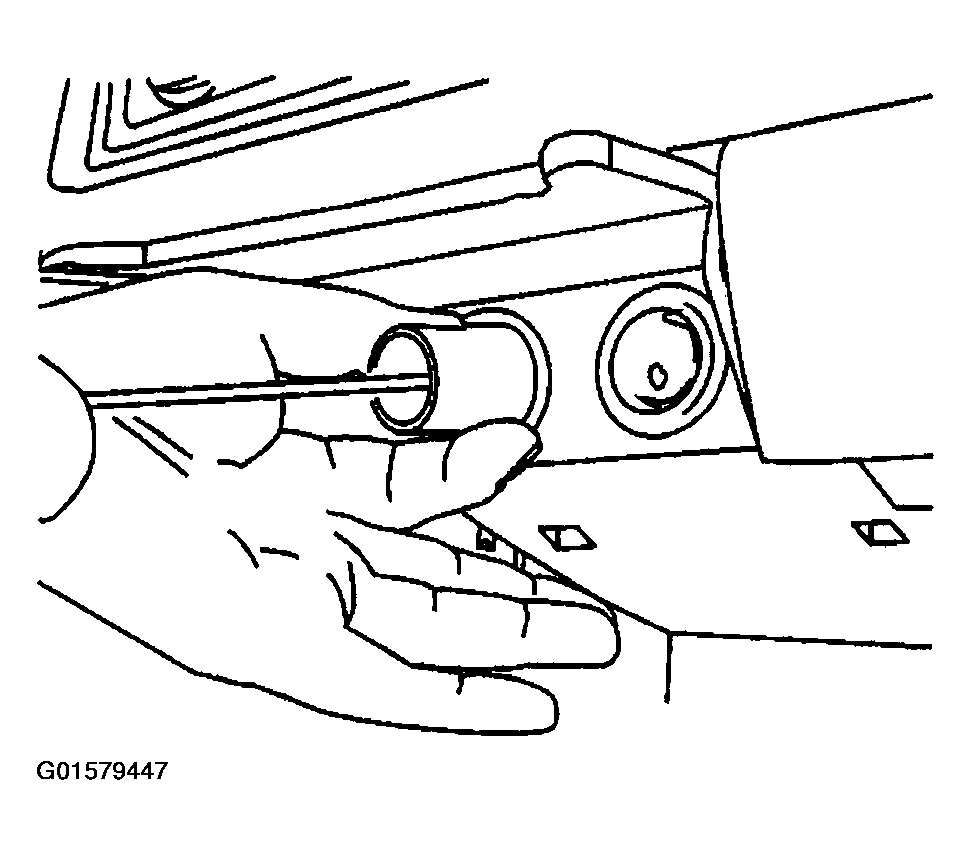

    Fig 2: Pulling Socket Out Of Assembly
    G01579447Courtesy of GENERAL MOTORS CORP.
  5. Remove the electrical connector from the socket.

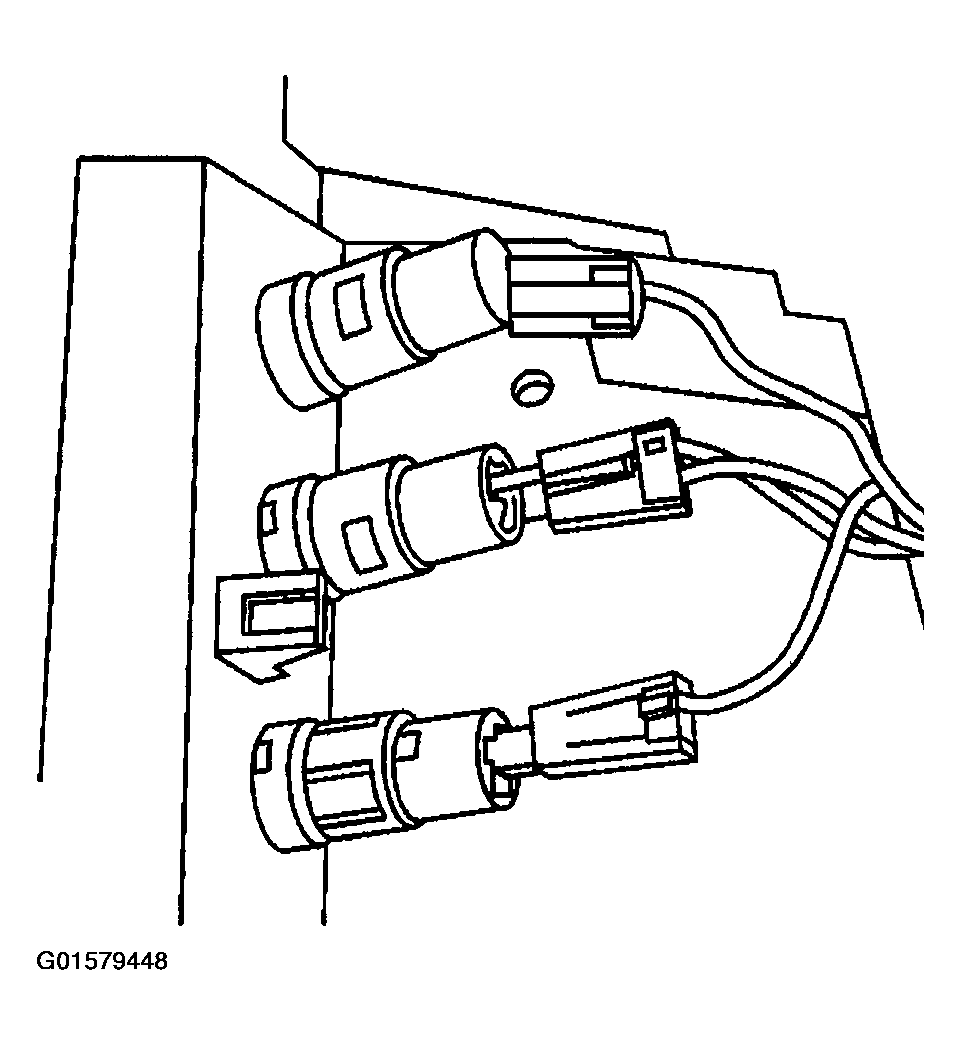

    Fig 3: Removing Electrical Connector From Socket
    G01579448Courtesy of GENERAL MOTORS CORP.
