Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the socket.
  2. Insert the plastic ring into the opening and snap the plastic ring into place.
  3. Insert the socket through the plastic ring gently by hand until the socket ring is sealed.
  4. Install the power supply fuse.

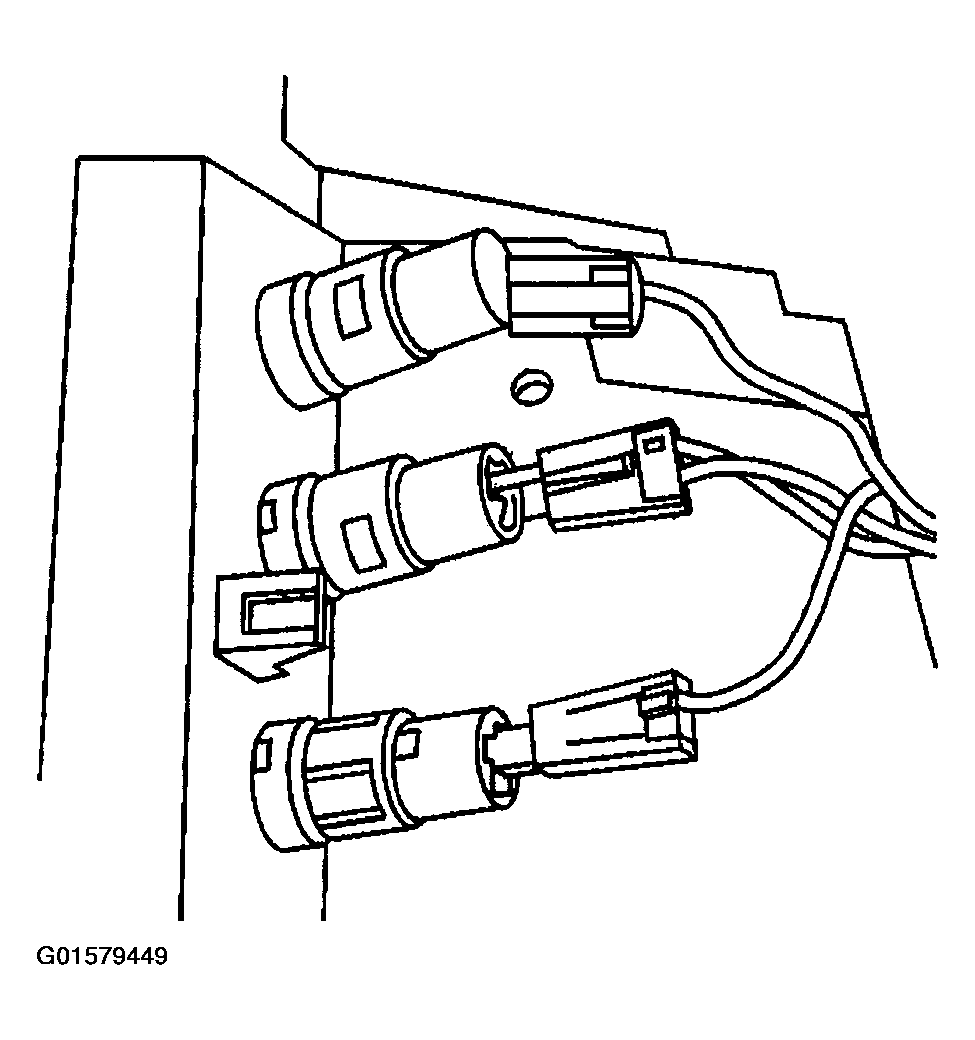

    Fig 1: Connecting Electrical Connector To Socket
    G01579449Courtesy of GENERAL MOTORS CORP.
