Fuel Gage Inaccurate Or Inoperative

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

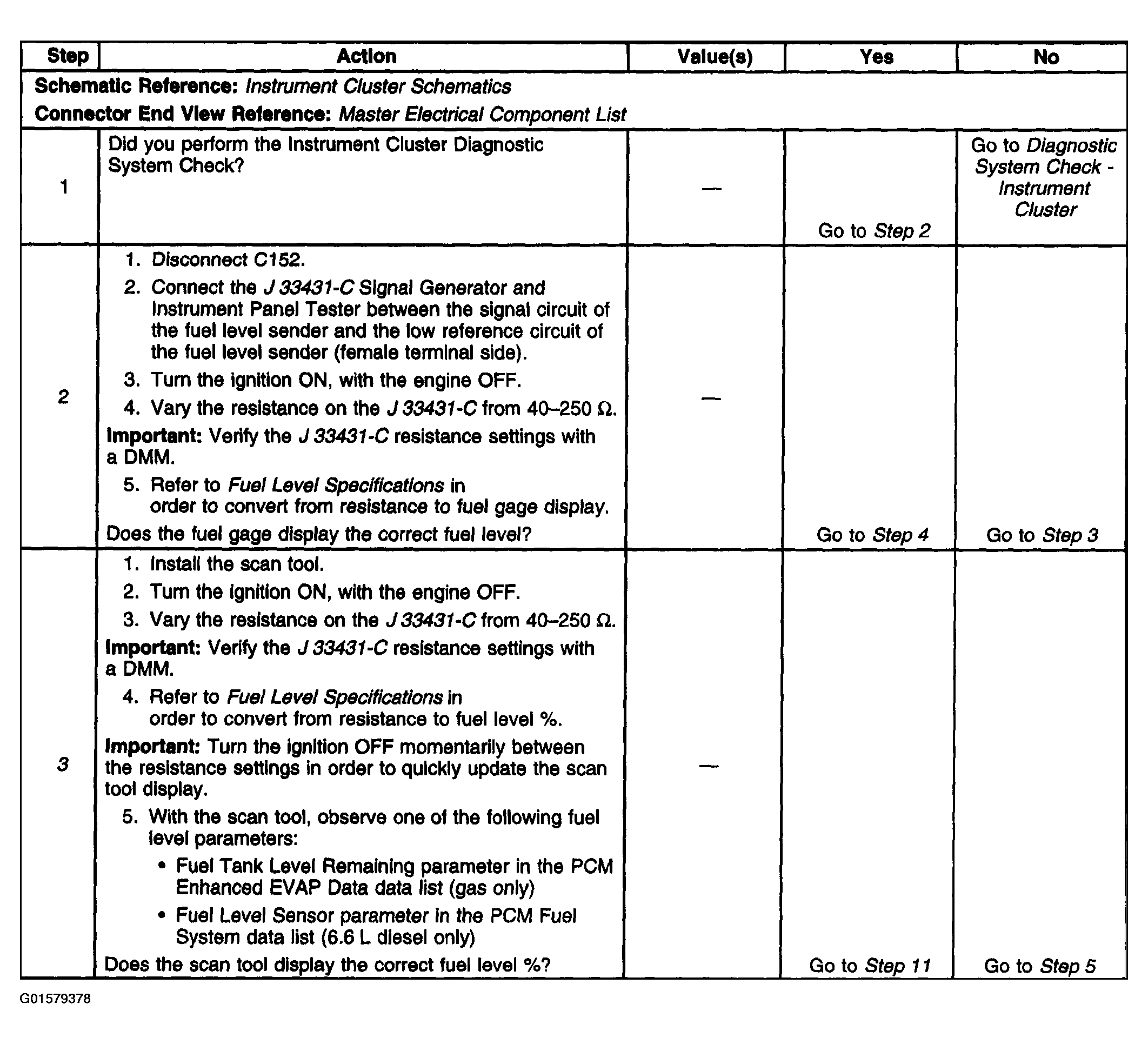

Fig 1: Fuel Gage Inaccurate Or Inoperative (Single Tank) (Steps 1-3)

Courtesy of GENERAL MOTORS CORP.

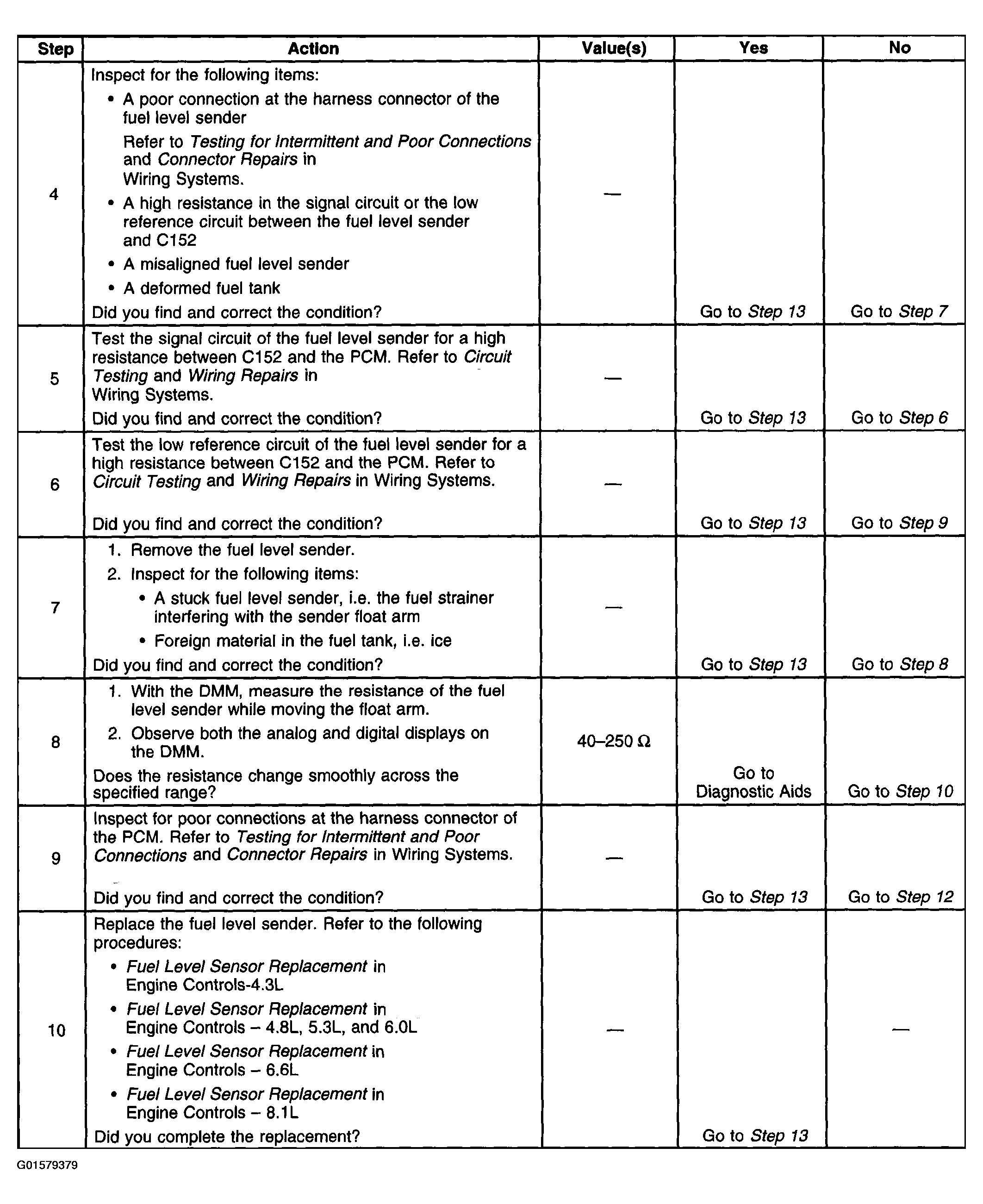

Fig 2: Fuel Gage Inaccurate Or Inoperative (Single Tank) (Steps 4-10)

Courtesy of GENERAL MOTORS CORP.

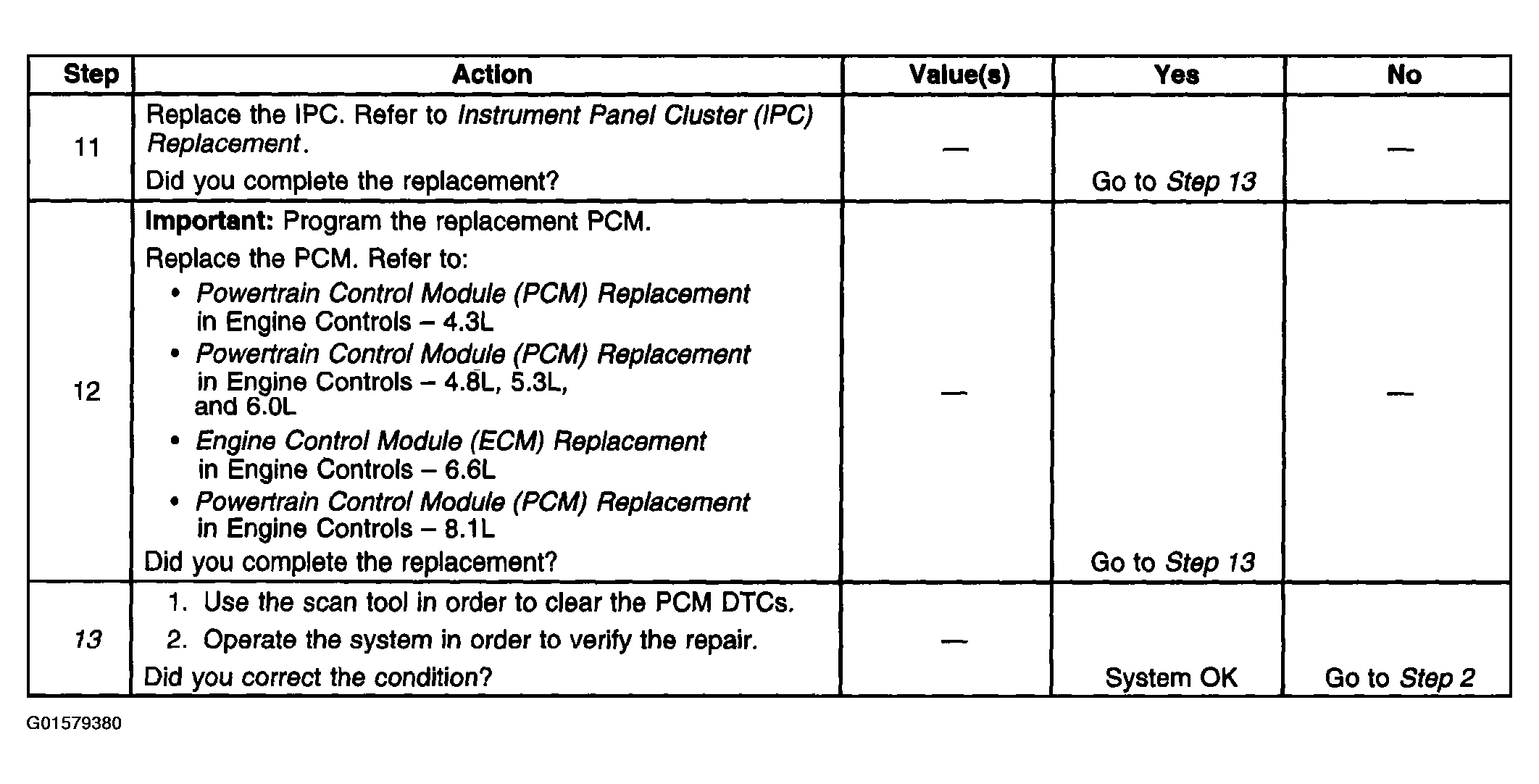

Fig 3: Fuel Gage Inaccurate Or Inoperative (Single Tank) (Steps 11-13)

Courtesy of GENERAL MOTORS CORP.
