Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

3. Tests for the proper operation of the circuit in the high voltage range.

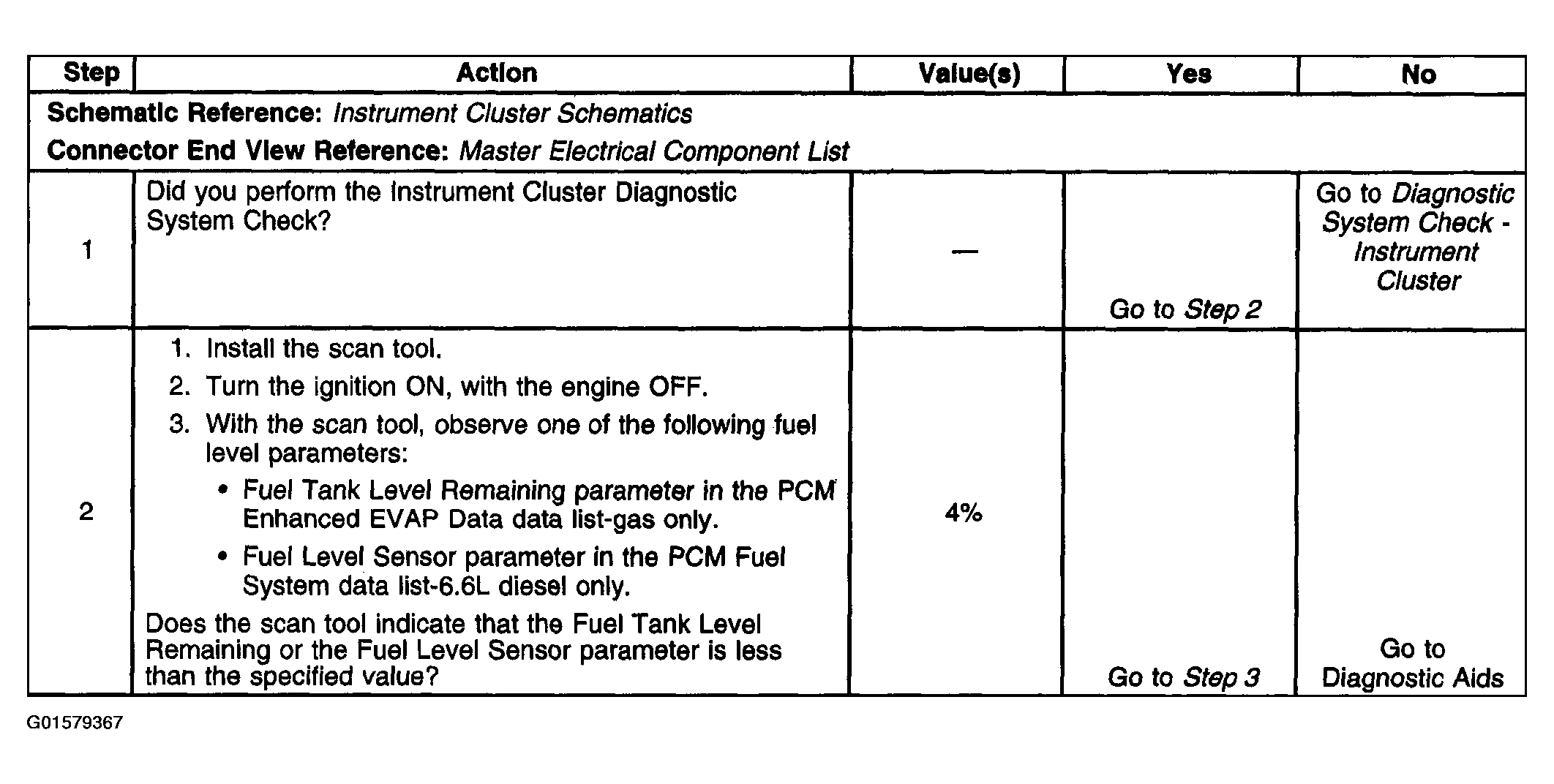

Fig 1: DTC P2067 (Steps 1-2)
G01579367Courtesy of GENERAL MOTORS CORP.

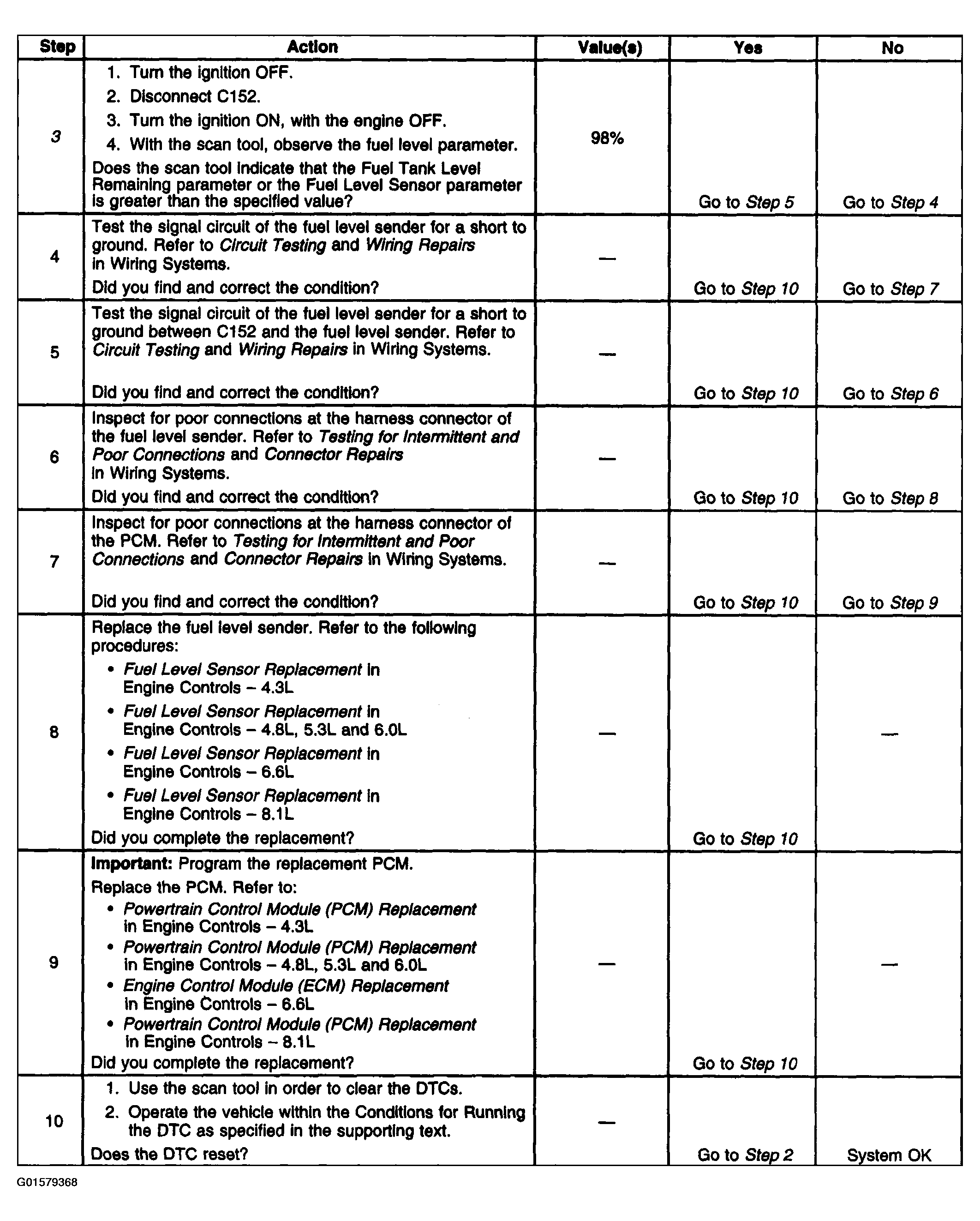

Fig 2: DTC P2067 (Steps 3-10)
G01579368Courtesy of GENERAL MOTORS CORP.
