DIC Warning Messages

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying DIC Warning (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

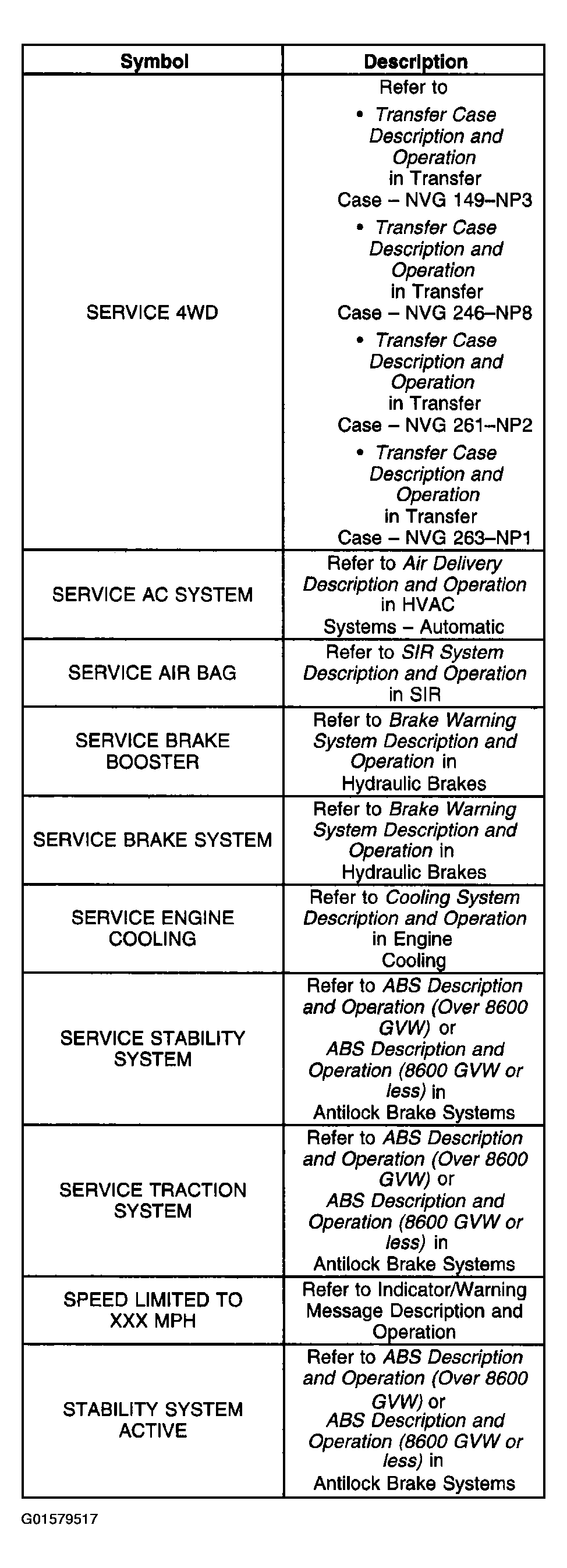

Fig 2: Identifying DIC Warning (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying DIC Warning (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

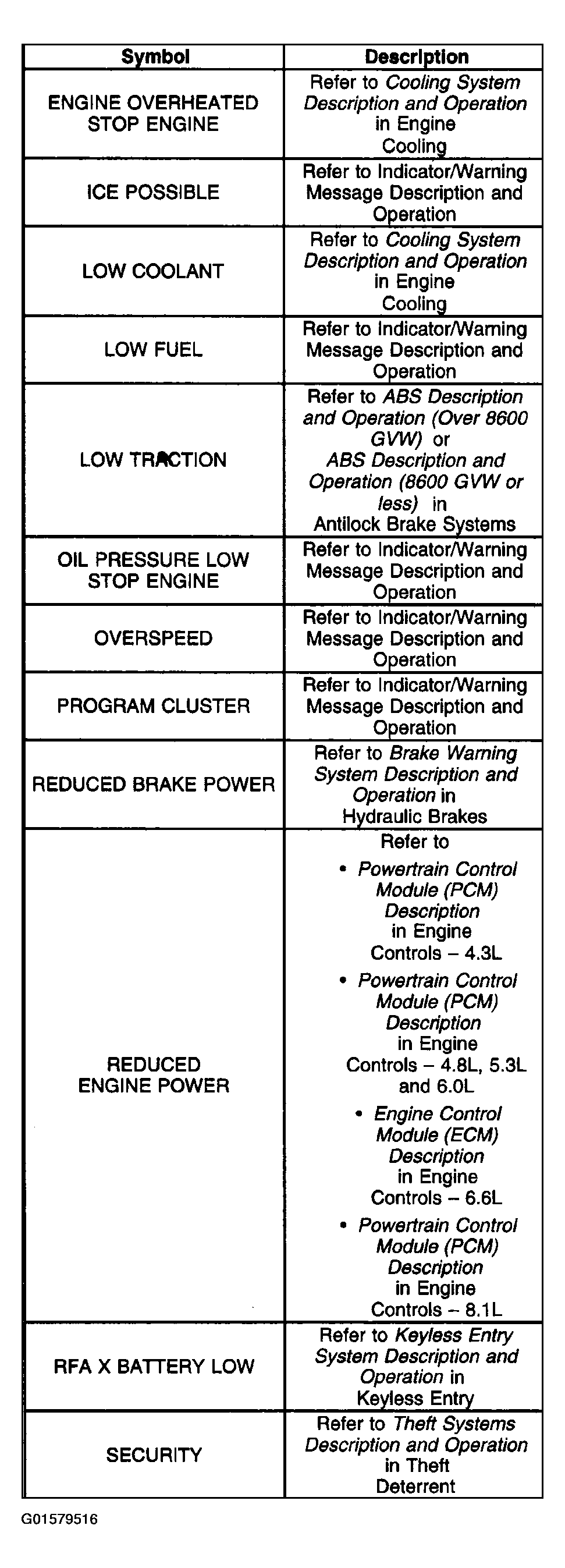

Fig 4: Identifying DIC Warning (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
