Instrument Panel, Gages & Console Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

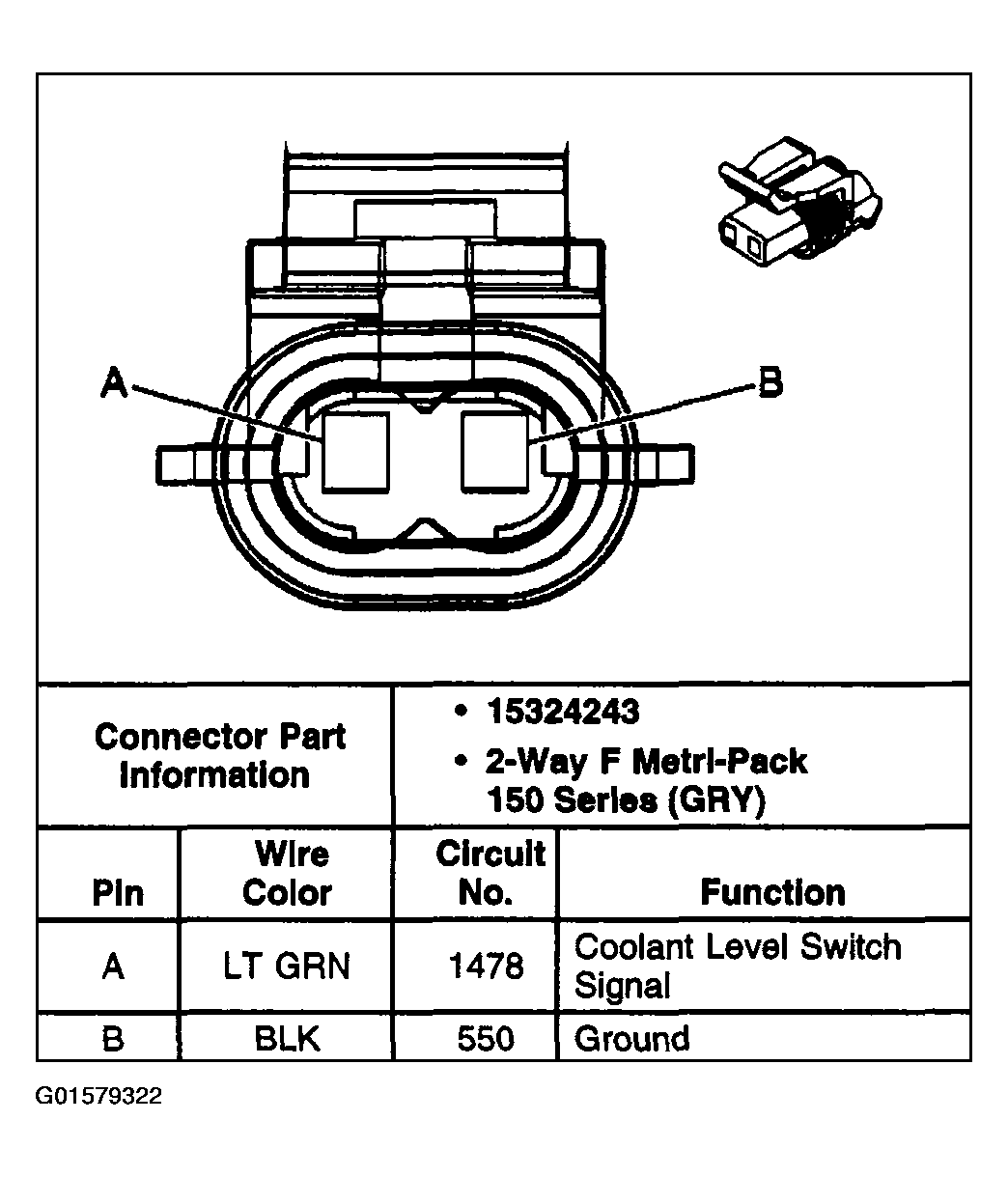

Fig 1: Coolant Level Switch (LB7/L18)

G01579322

Courtesy of GENERAL MOTORS CORP.

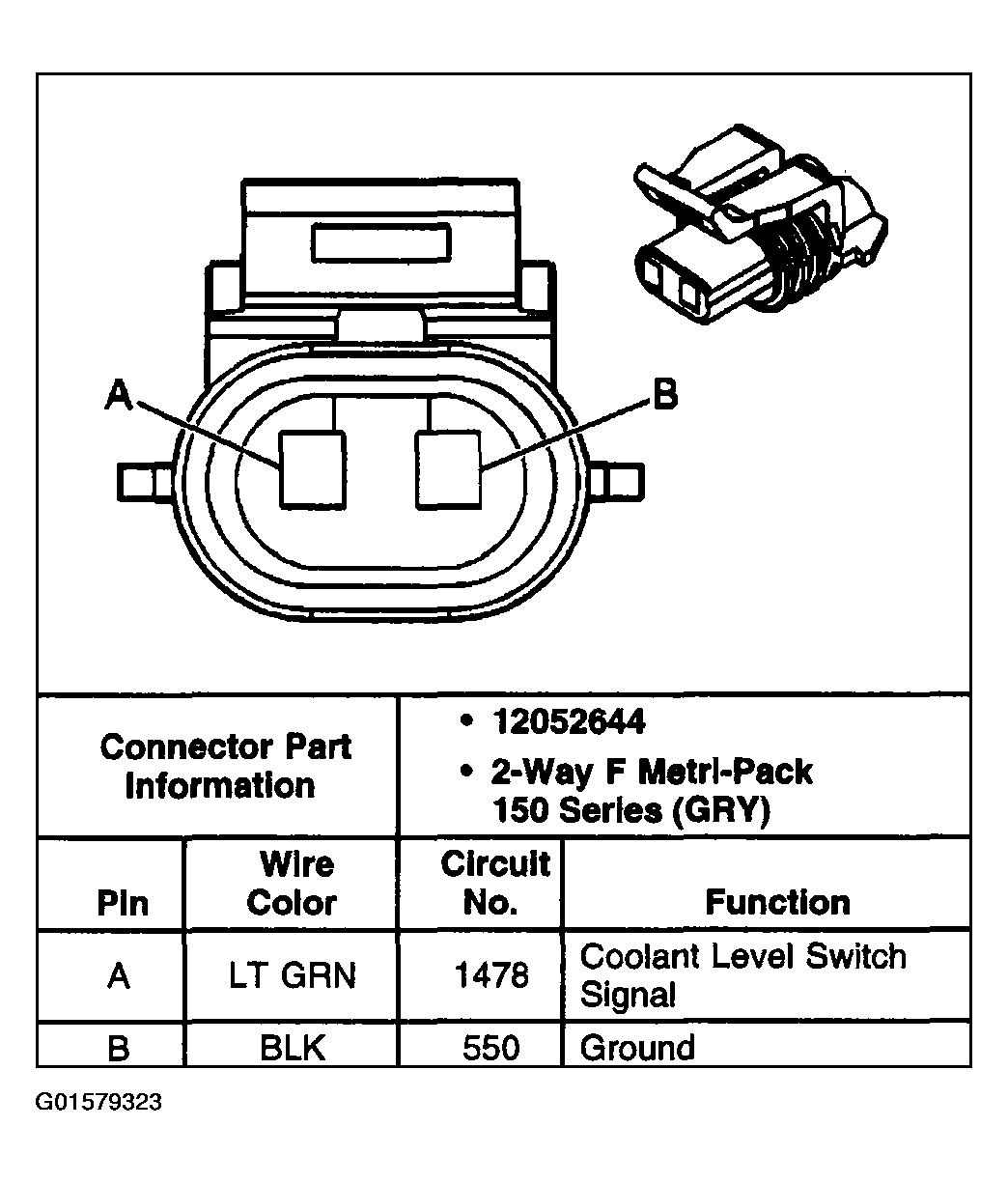

Fig 2: Coolant Level Switch Except (LB7/L18)

G01579323

Courtesy of GENERAL MOTORS CORP.

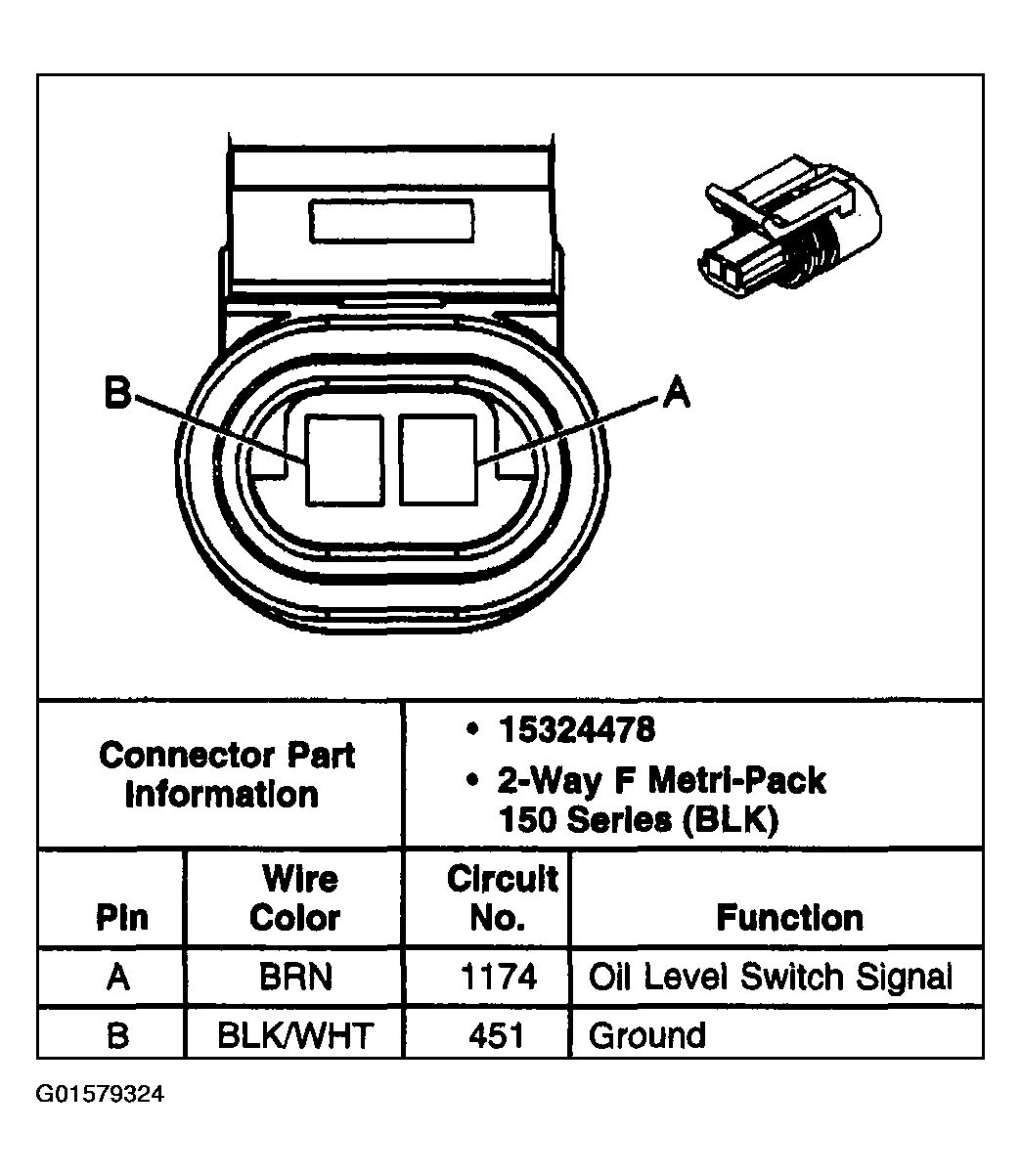

Fig 3: Engine Oil Level Switch (L18)

G01579324

Courtesy of GENERAL MOTORS CORP.

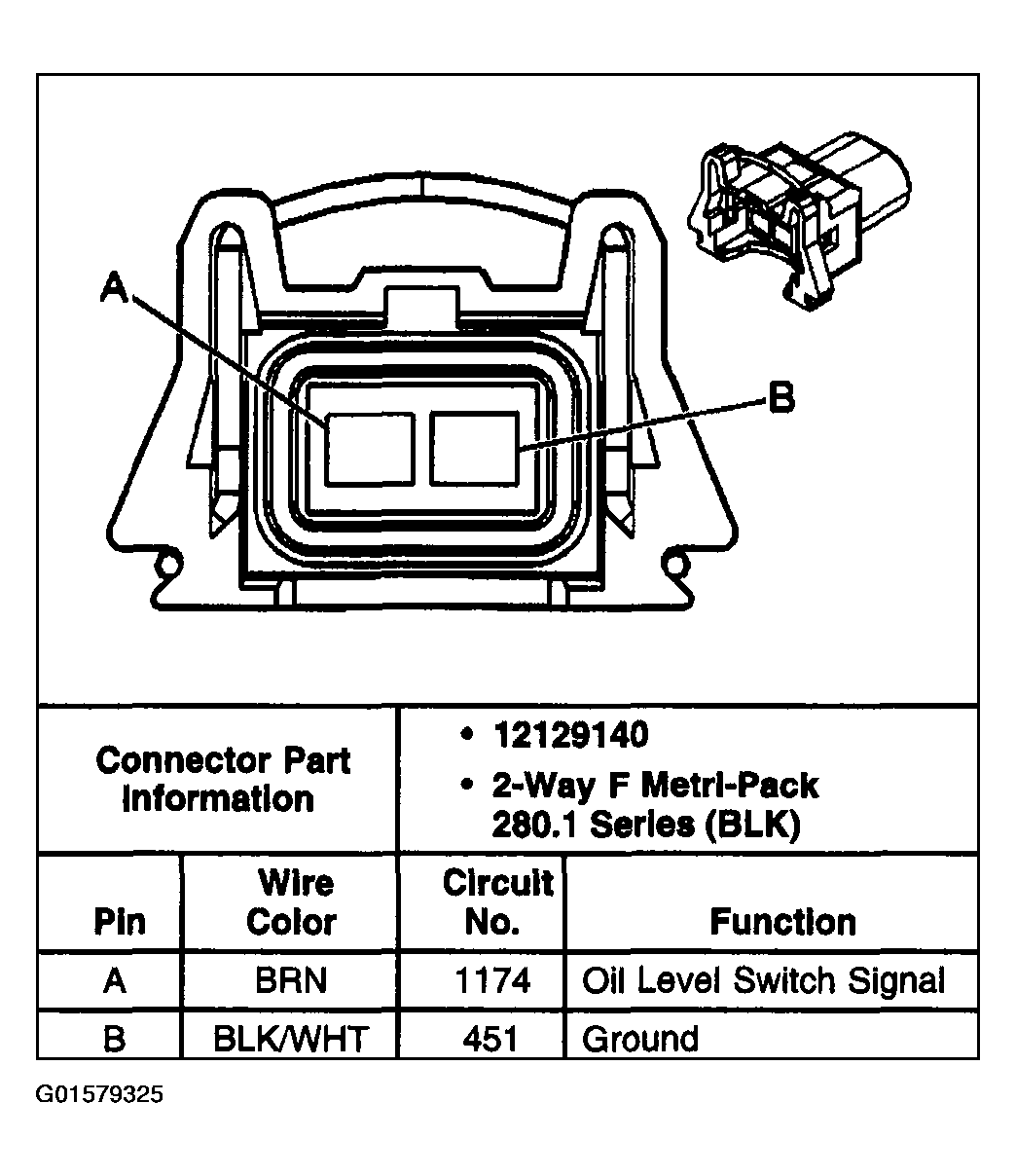

Fig 4: Engine Oil Level Switch (LB7)

G01579325

Courtesy of GENERAL MOTORS CORP.

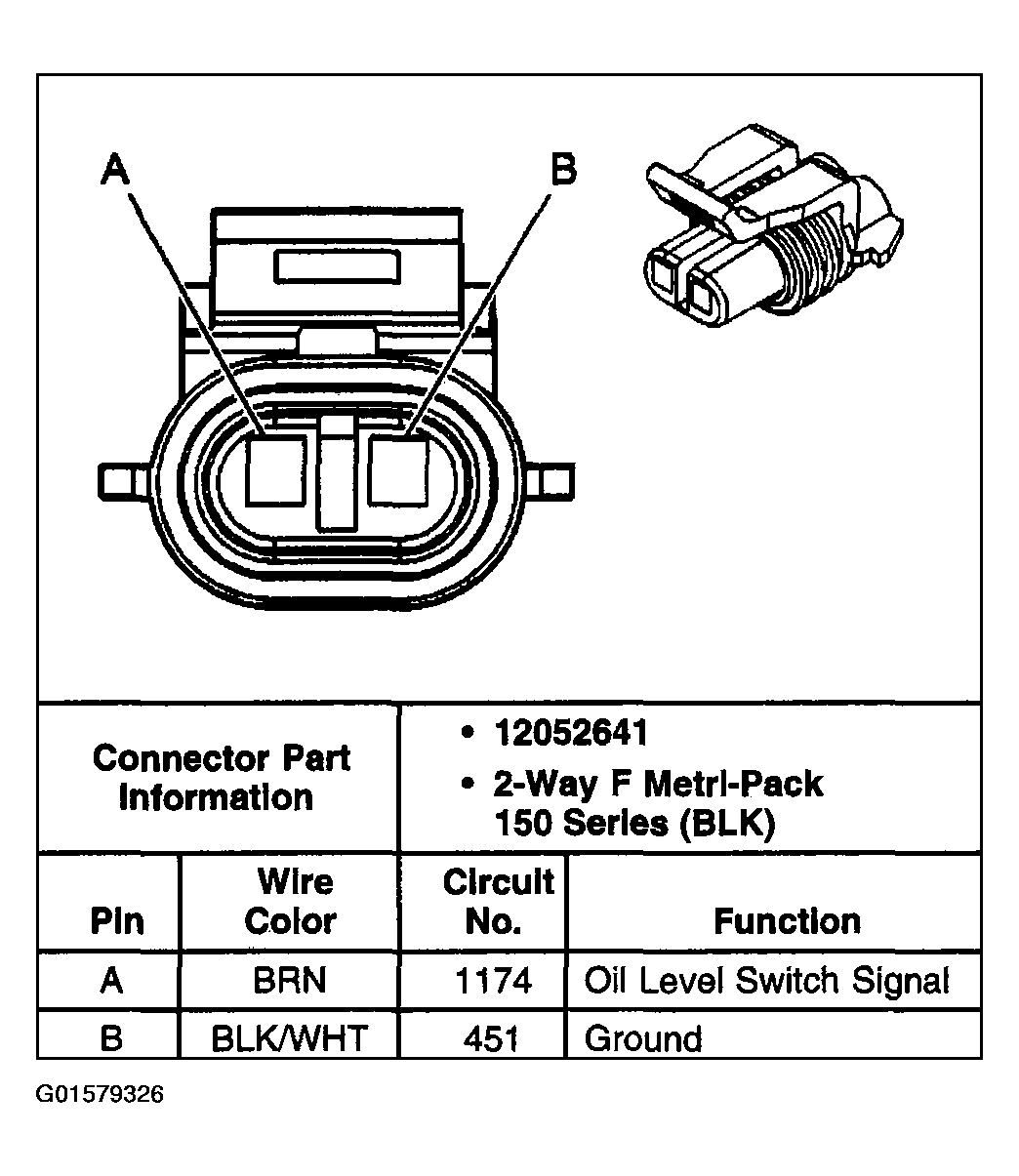

Fig 5: Engine Oil Level Switch (Except L18/LB7)

G01579326

Courtesy of GENERAL MOTORS CORP.

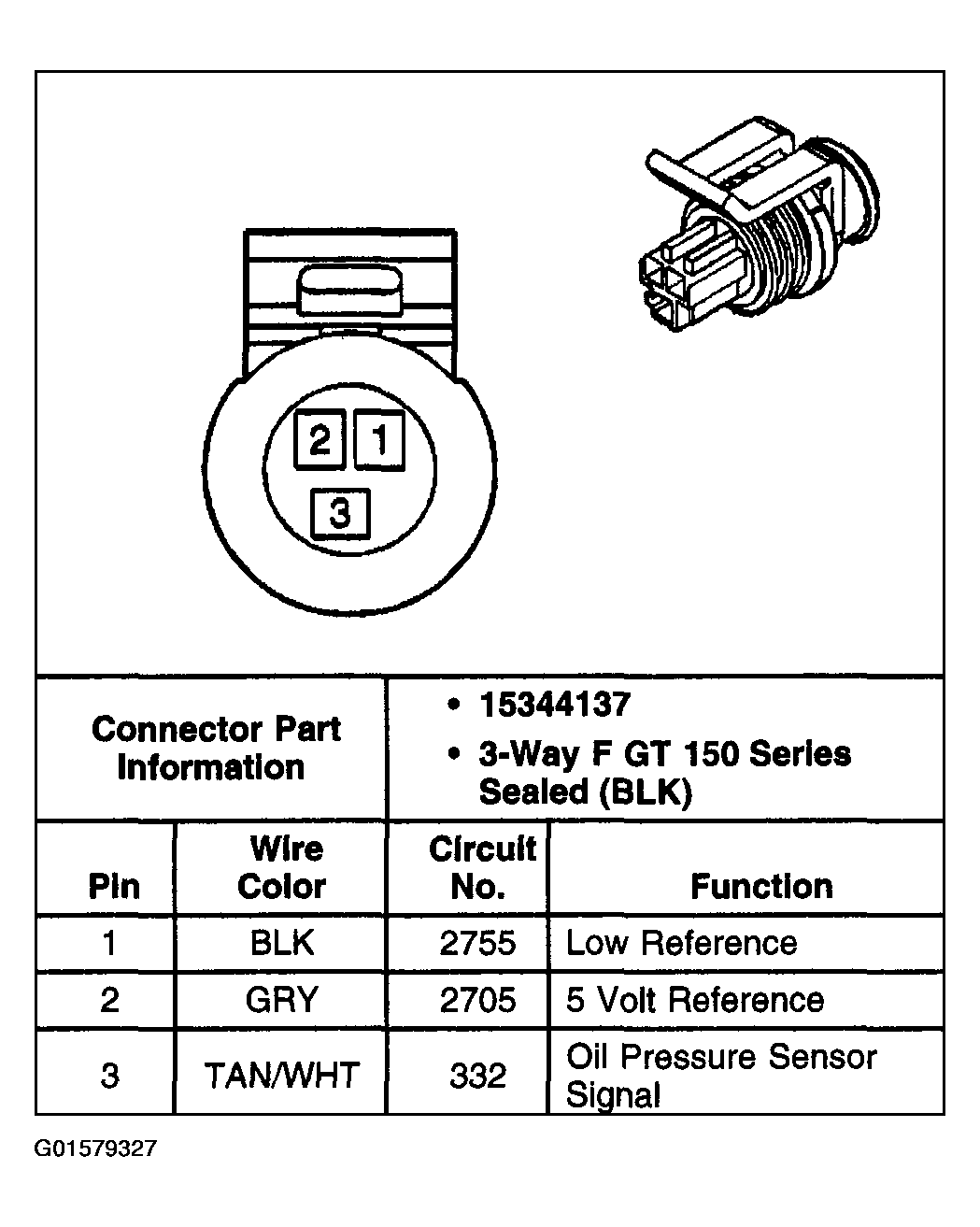

Fig 6: Engine Oil Pressure (EOP) Sensor - Gasoline

G01579327

Courtesy of GENERAL MOTORS CORP.

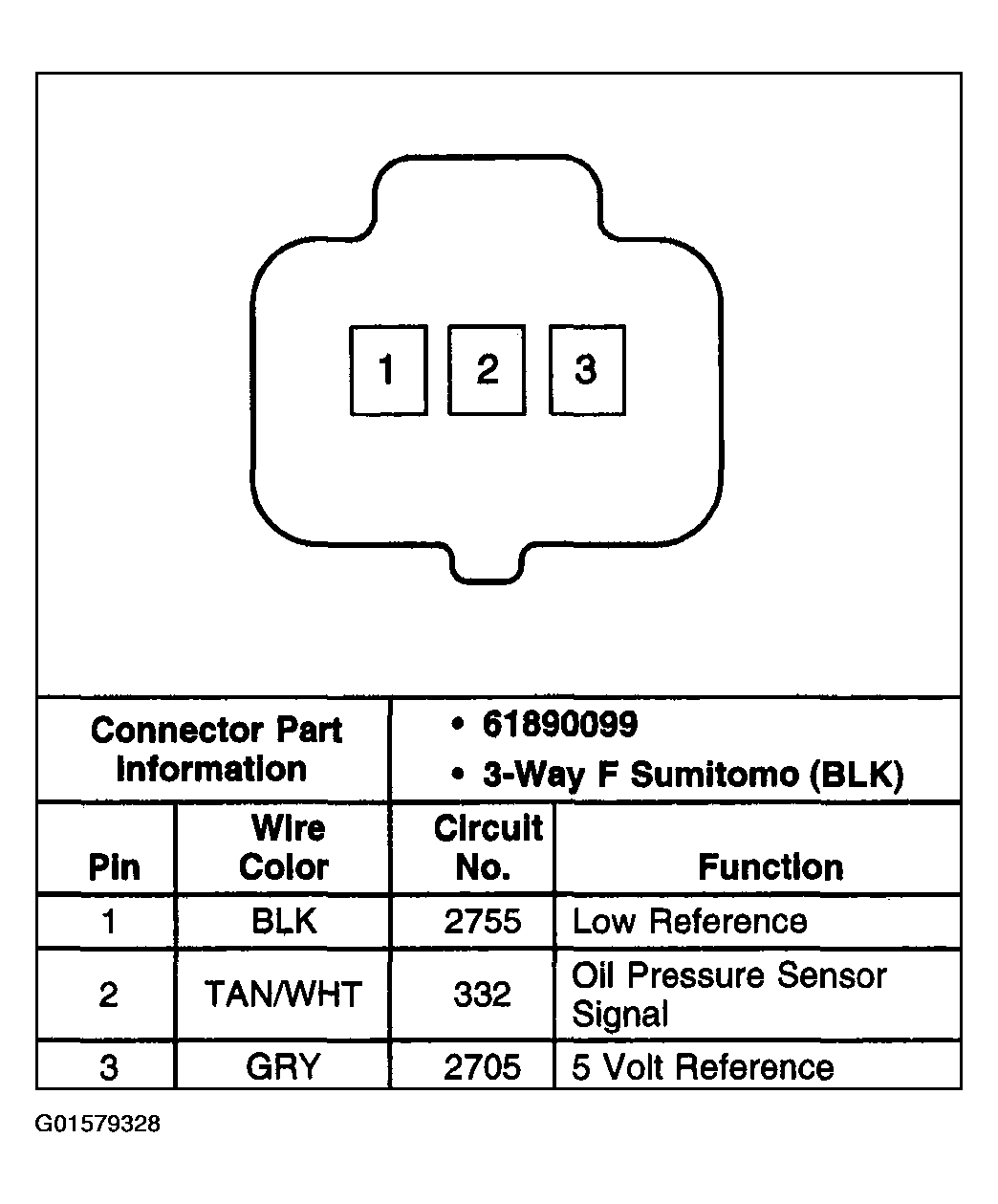

Fig 7: Engine Oil Pressure (EOP) Sensor - Diesel

G01579328

Courtesy of GENERAL MOTORS CORP.

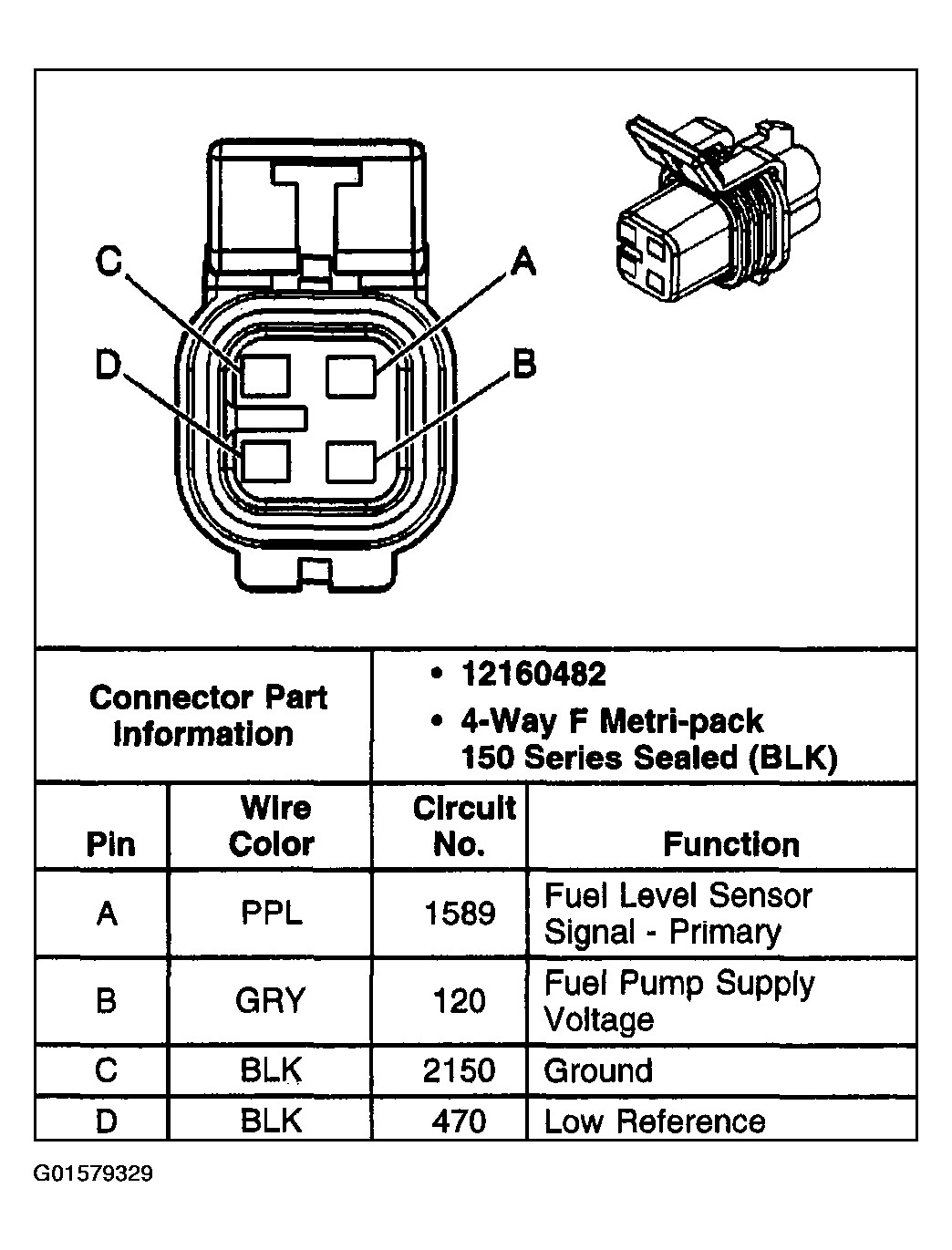

Fig 8: Fuel Pump/Sender Assembly - Primary (All Gasoline Except L59)

G01579329

Courtesy of GENERAL MOTORS CORP.

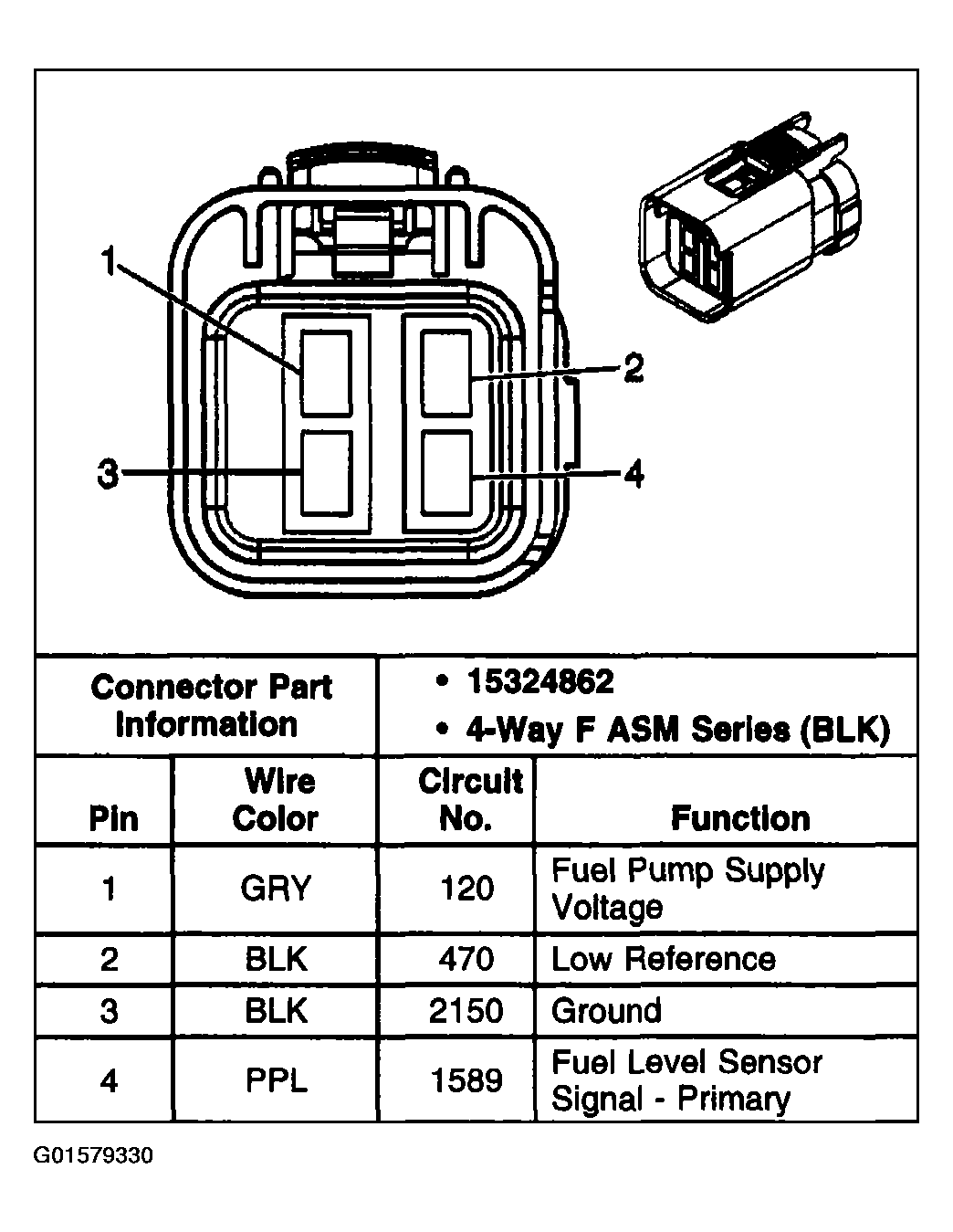

Fig 9: Fuel Pump/Sender Assembly - Primary (L59 Only)

G01579330

Courtesy of GENERAL MOTORS CORP.

Fig 10: Fuel Pump/Sender Assembly - Secondary - Gasoline

G01579331

Courtesy of GENERAL MOTORS CORP.

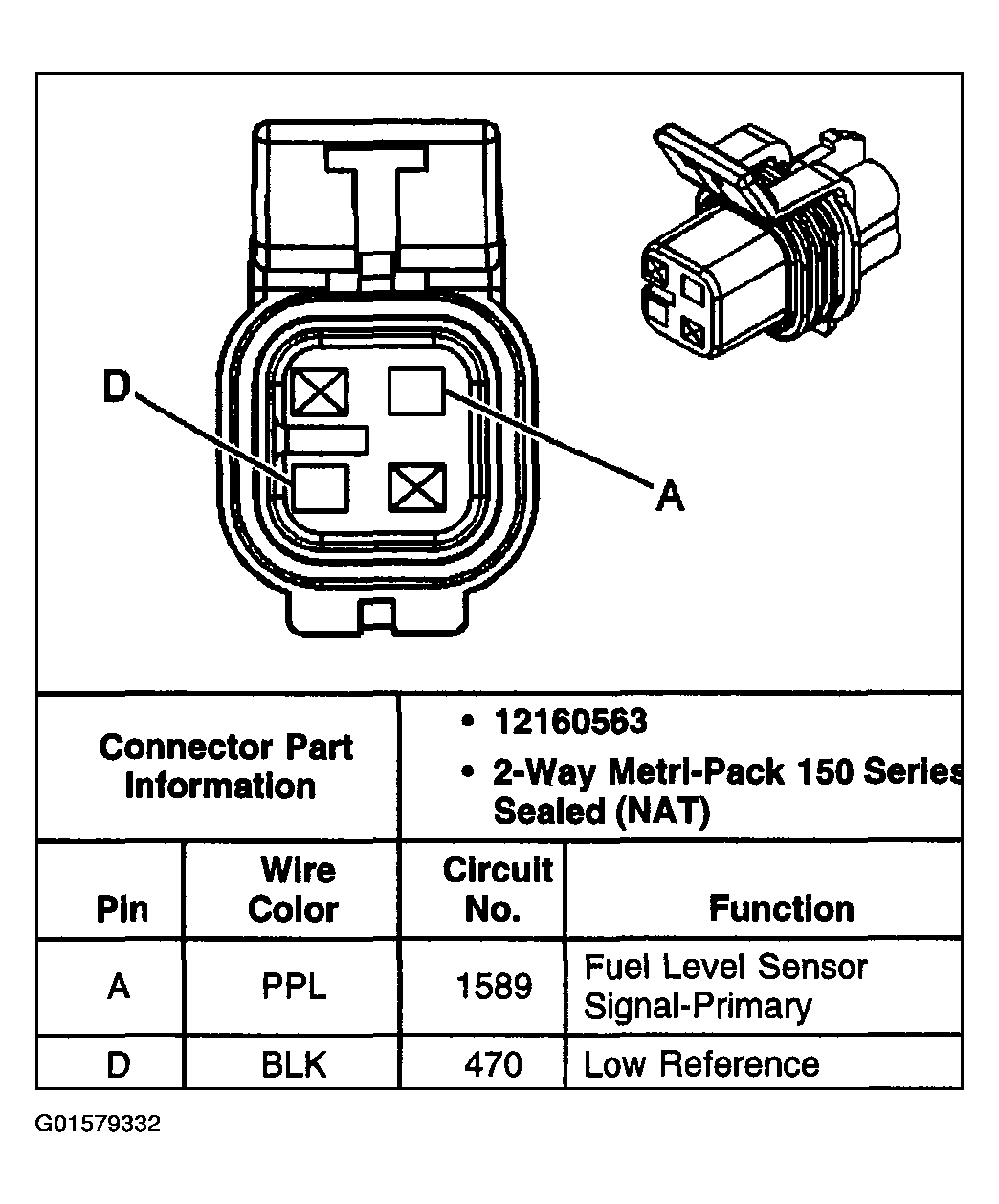

Fig 11: Fuel Level Sensor - Primary - Diesel

G01579332

Courtesy of GENERAL MOTORS CORP.

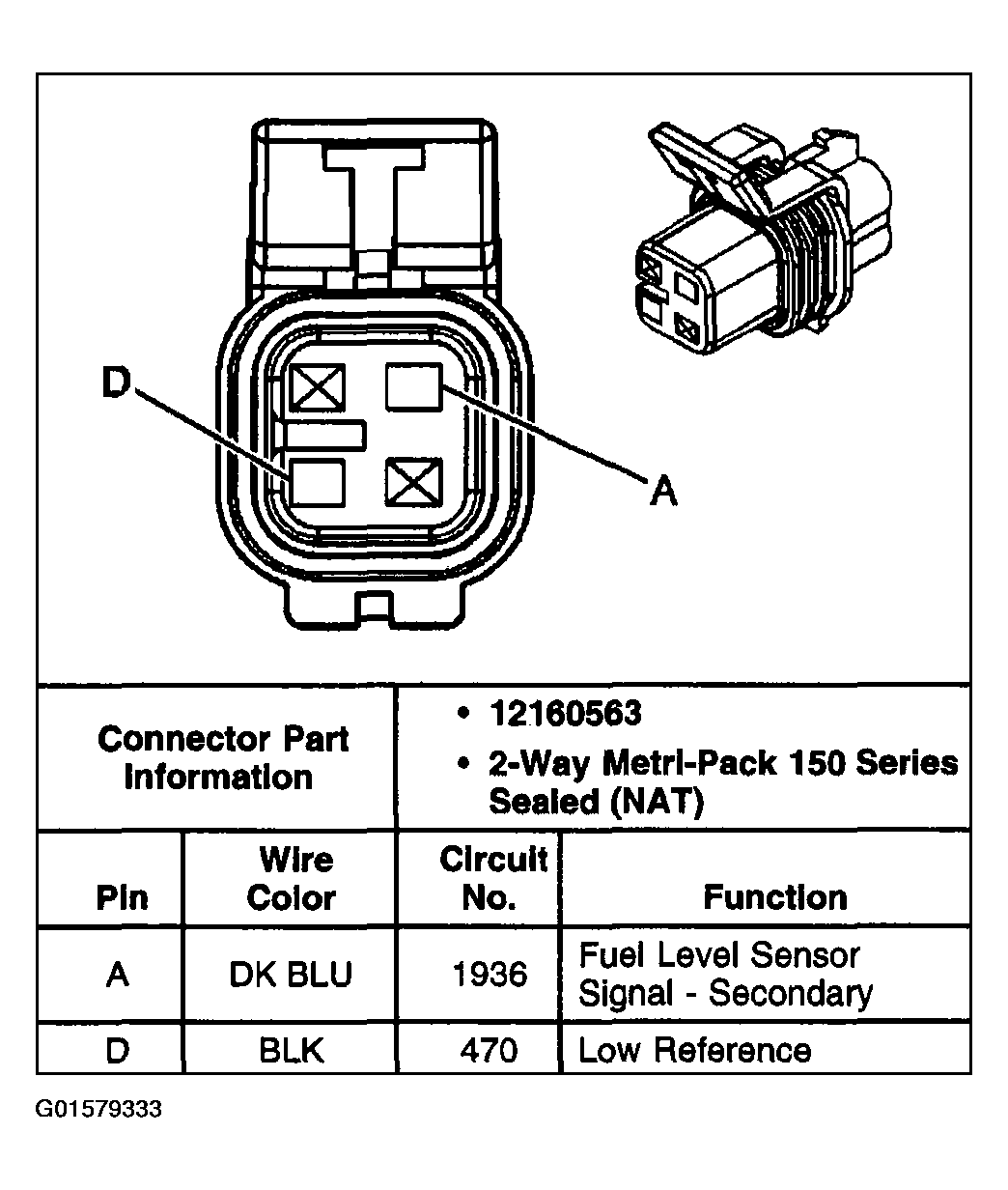

Fig 12: Fuel Level Sensor - Secondary - Diesel

G01579333

Courtesy of GENERAL MOTORS CORP.

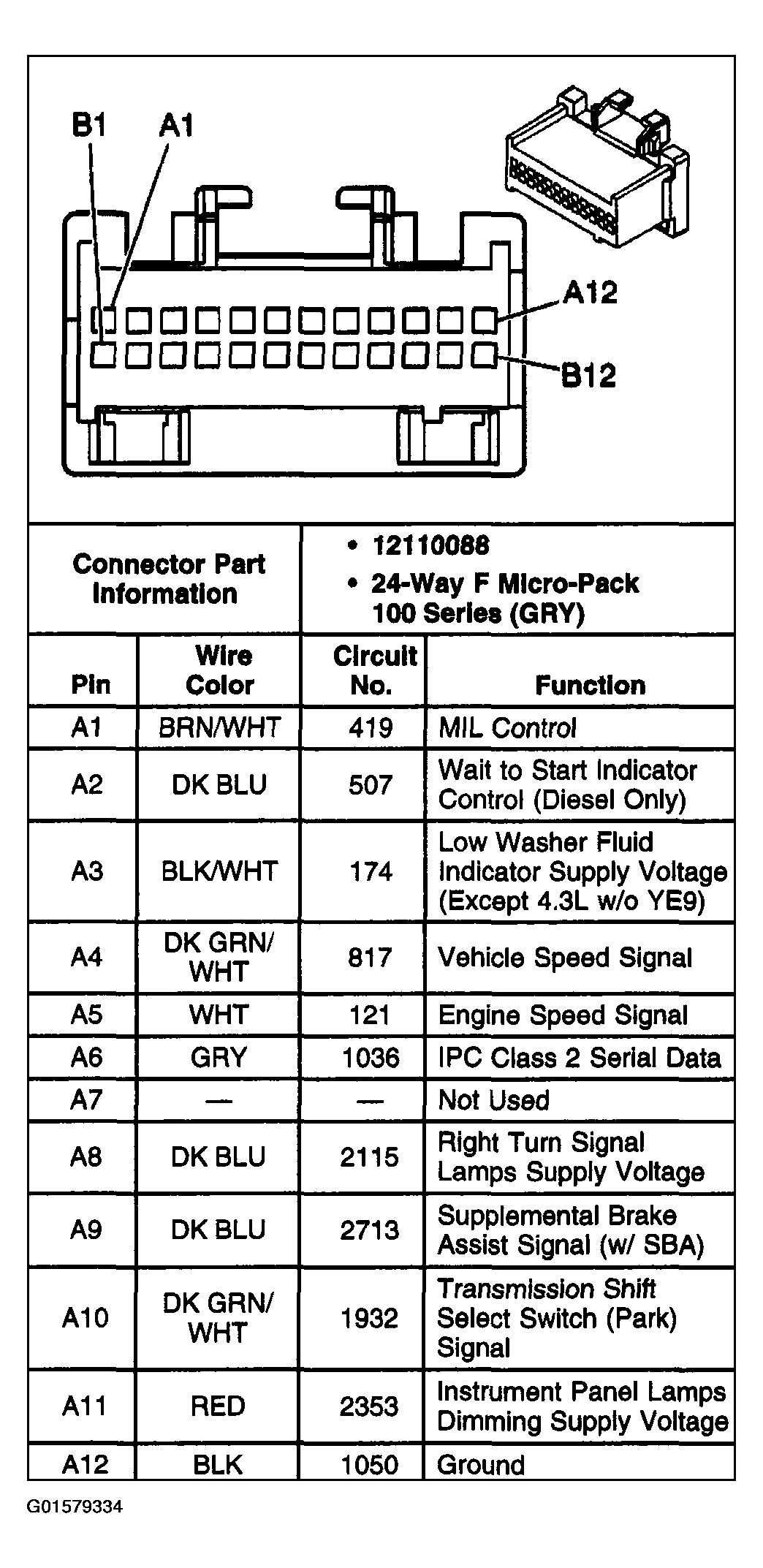

Fig 13: Instrument Panel Cluster (IPC) (1 Of 2)

G01579334

Courtesy of GENERAL MOTORS CORP.

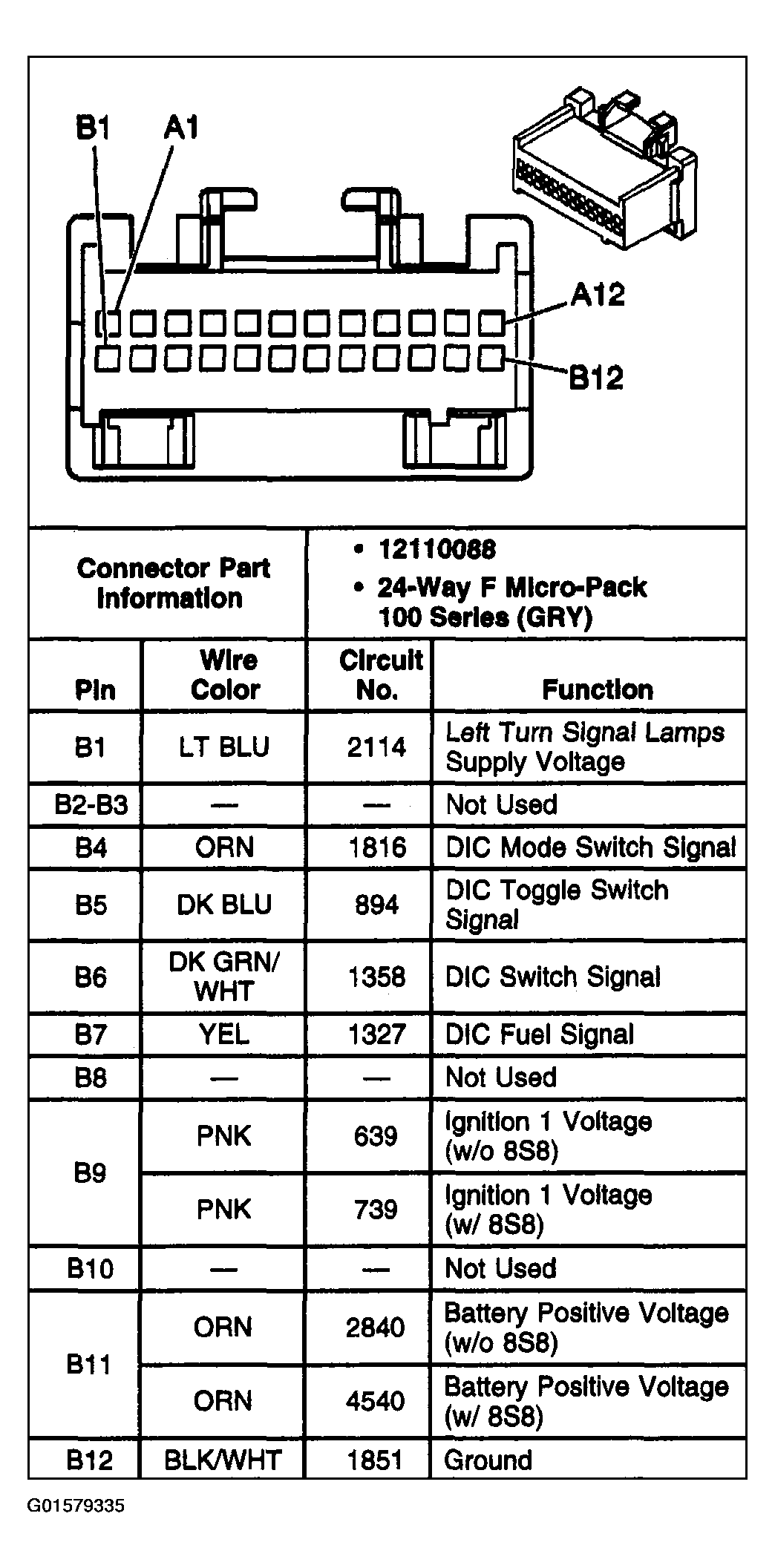

Fig 14: Instrument Panel Cluster (IPC) (2 Of 2)

G01579335

Courtesy of GENERAL MOTORS CORP.
