Instrument Panel, Gages & Console Component Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

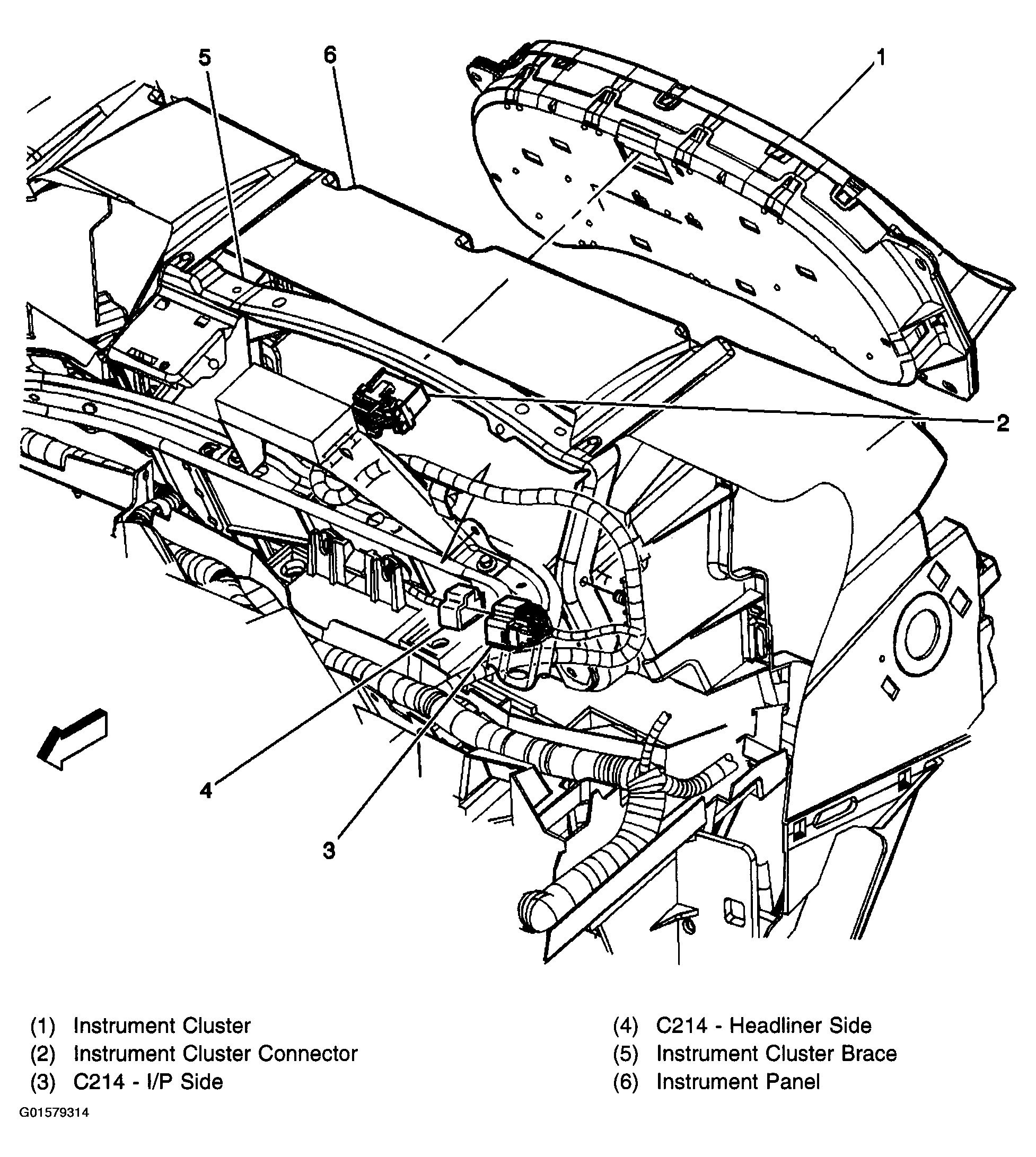

Fig 1: Instrument Panel (Left Rear Top)

G01579314

Courtesy of GENERAL MOTORS CORP.

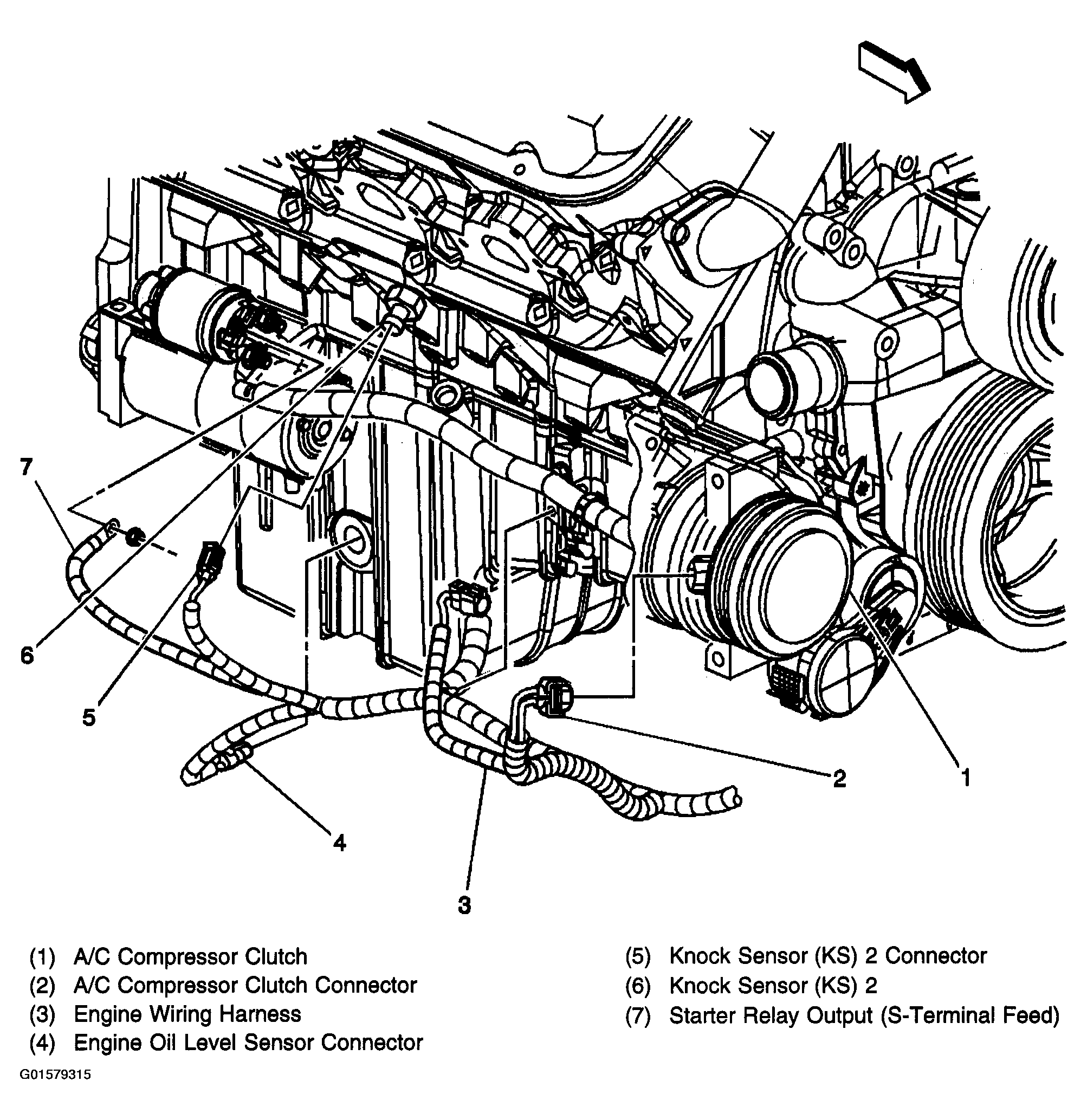

Fig 2: Engine Oil Level Switch

G01579315

Courtesy of GENERAL MOTORS CORP.

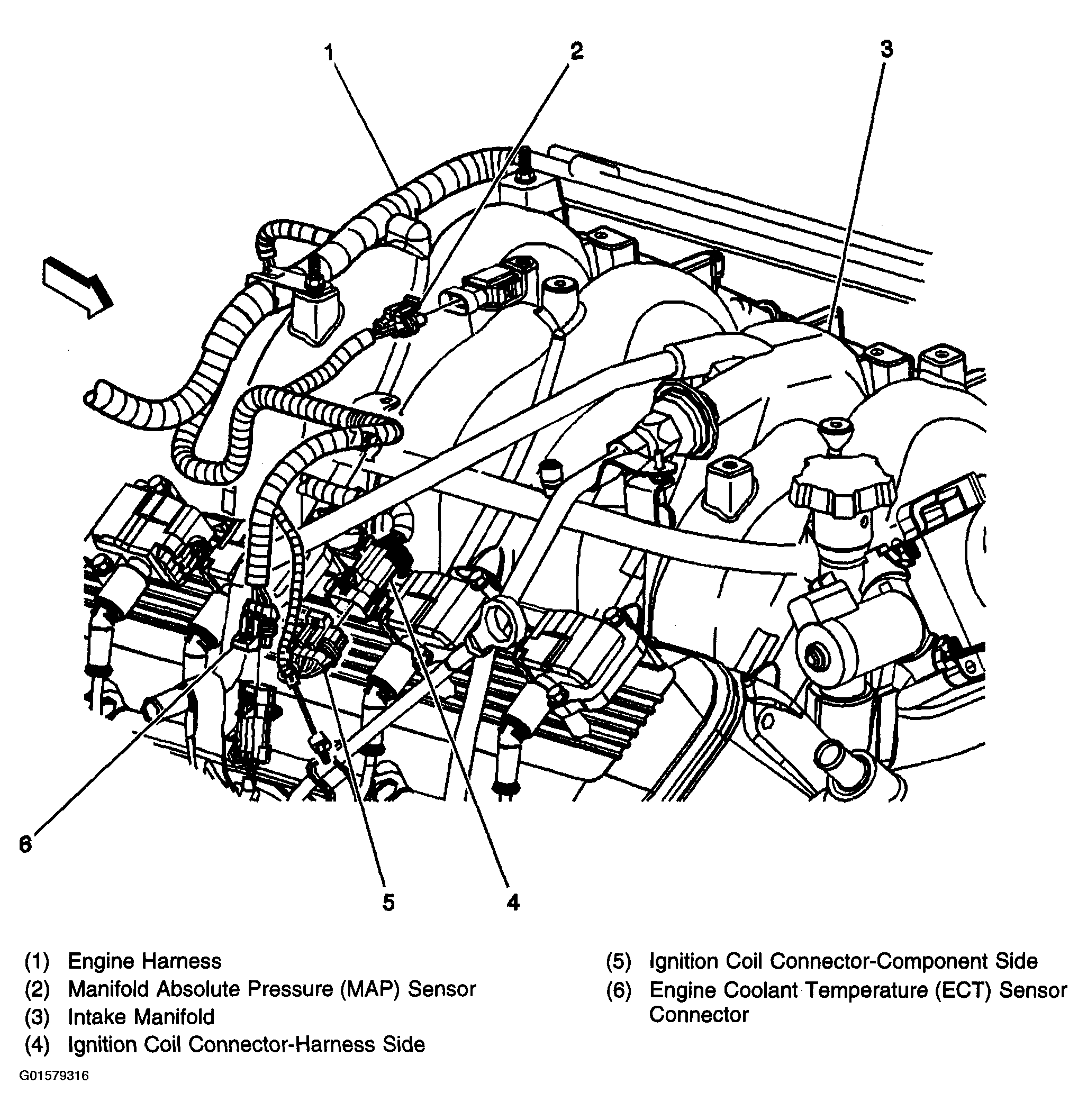

Fig 3: Engine View - Upper Right (8.1L)

G01579316

Courtesy of GENERAL MOTORS CORP.

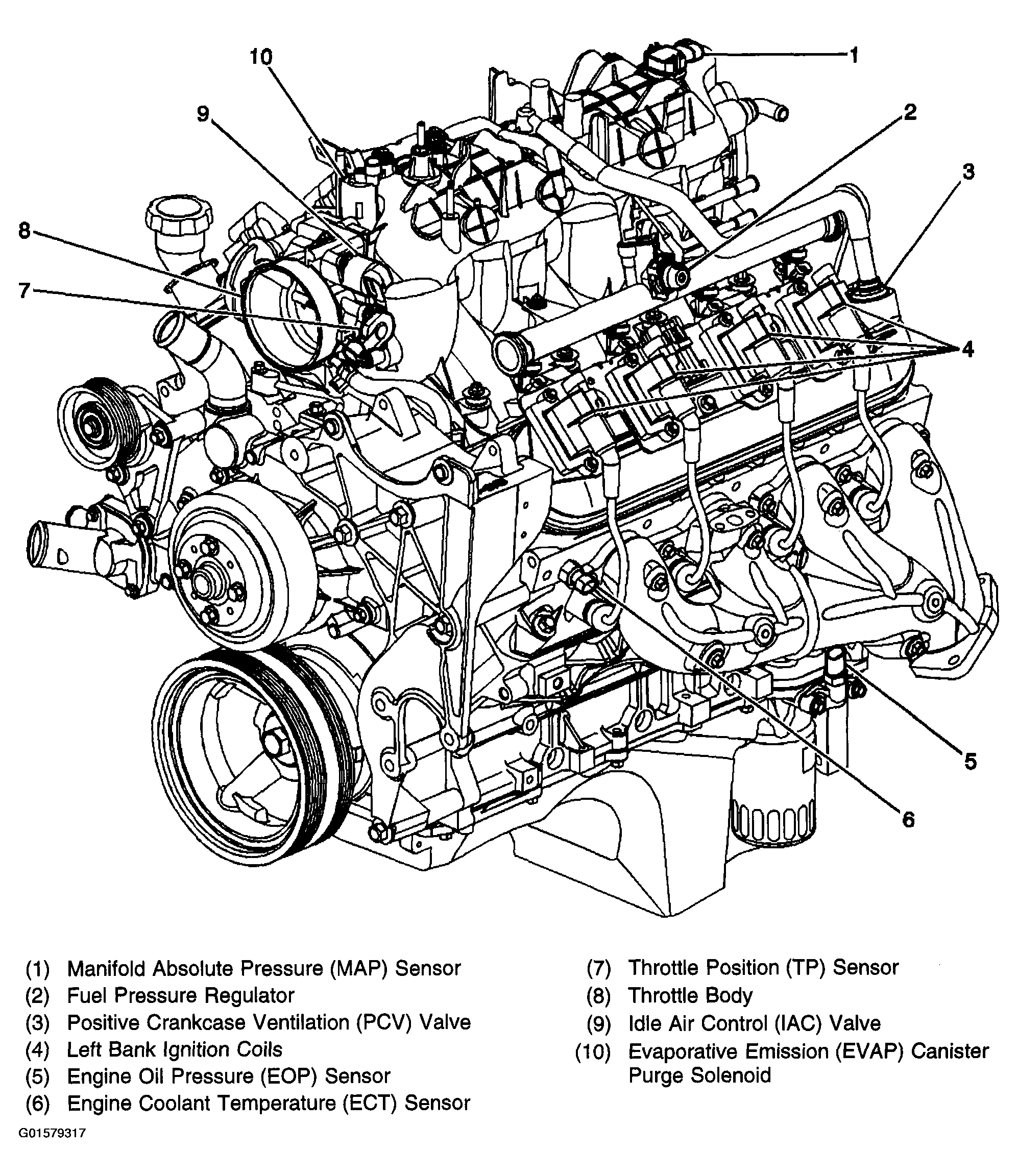

Fig 4: Full Engine View - Left Side (5.3L & 6.0L)

G01579317

Courtesy of GENERAL MOTORS CORP.

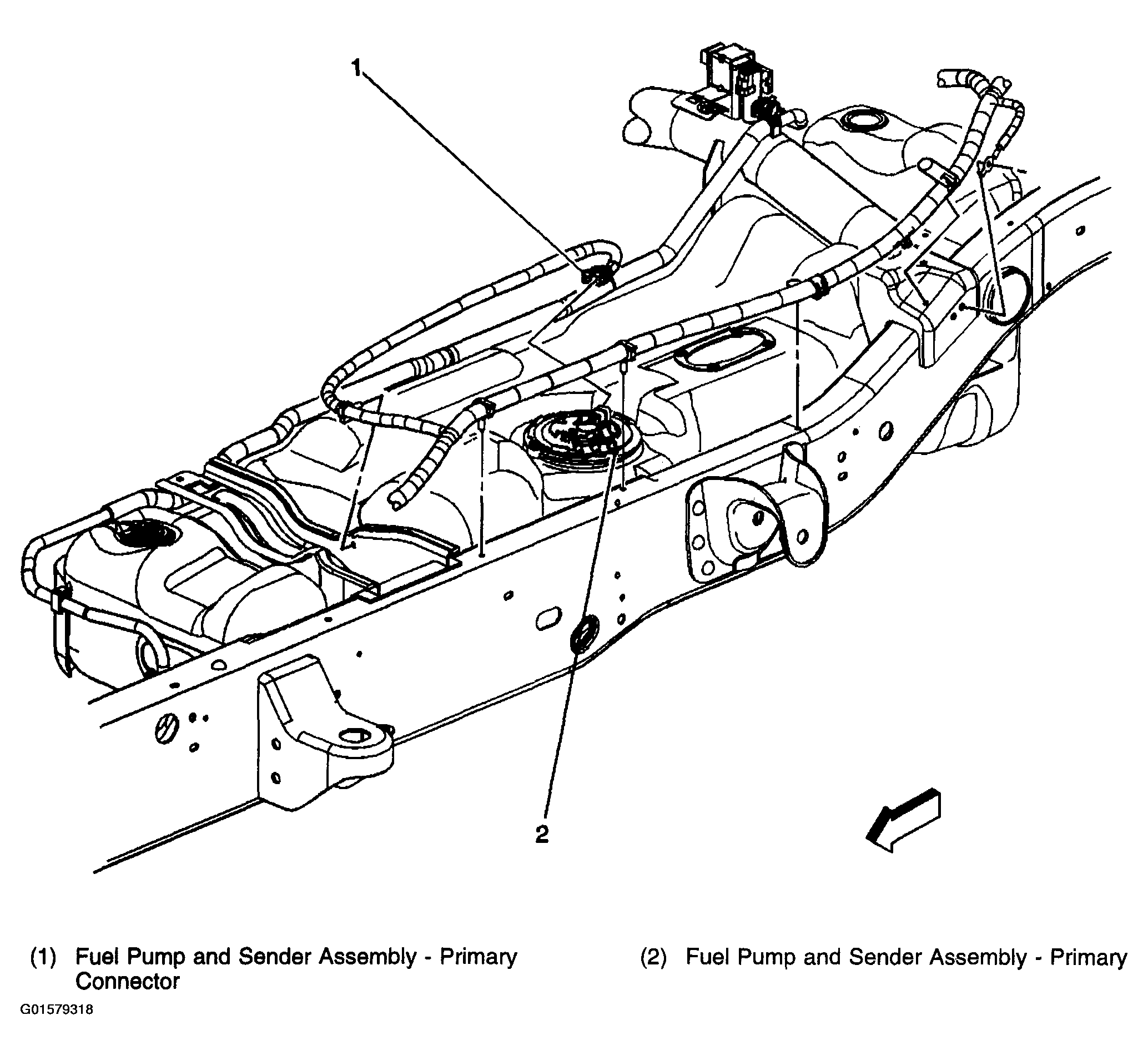

Fig 5: Fuel Pump & Sender Assembly (Primary)

G01579318

Courtesy of GENERAL MOTORS CORP.

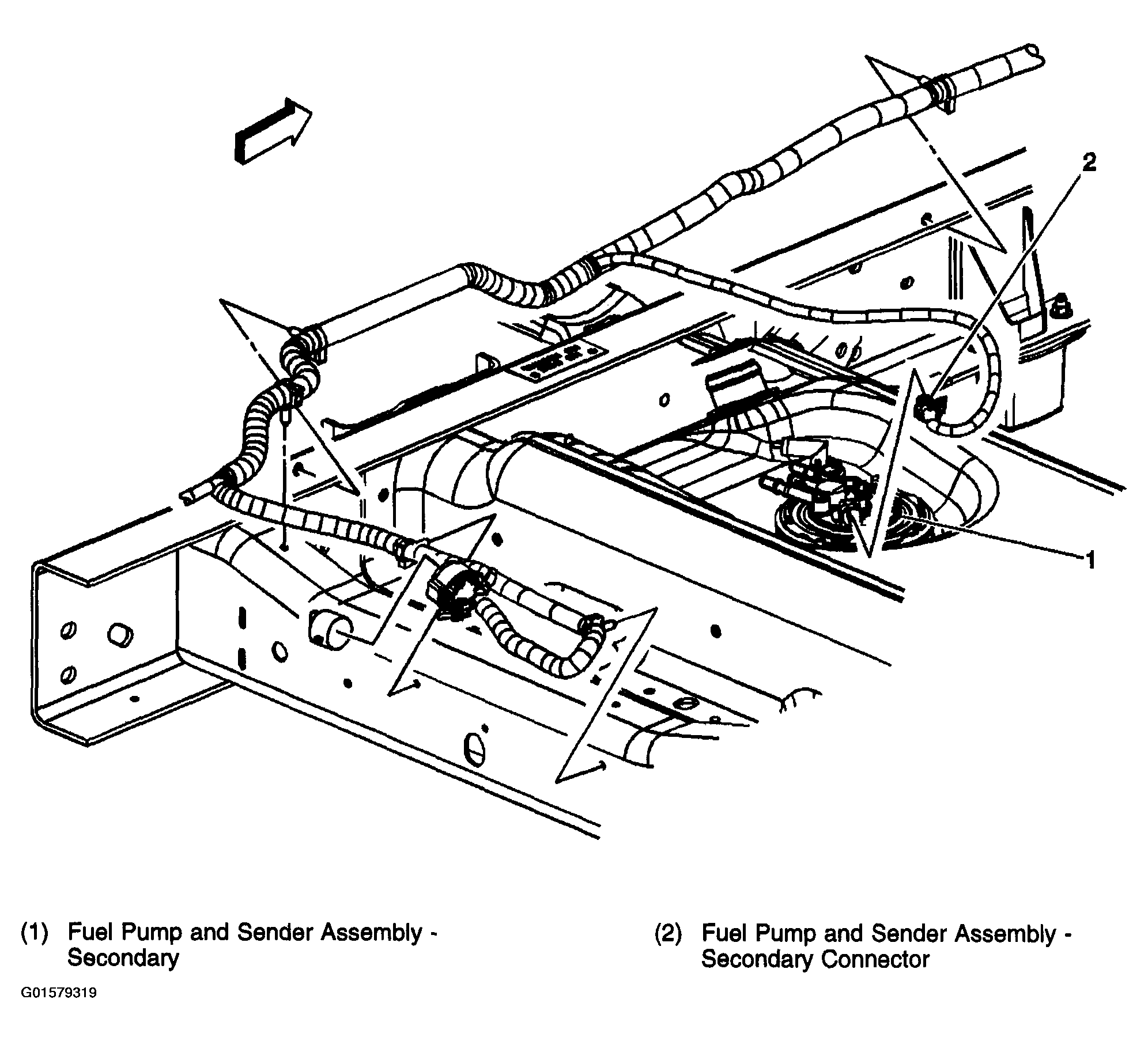

Fig 6: Fuel Pump & Sender Assembly (Secondary)

G01579319

Courtesy of GENERAL MOTORS CORP.

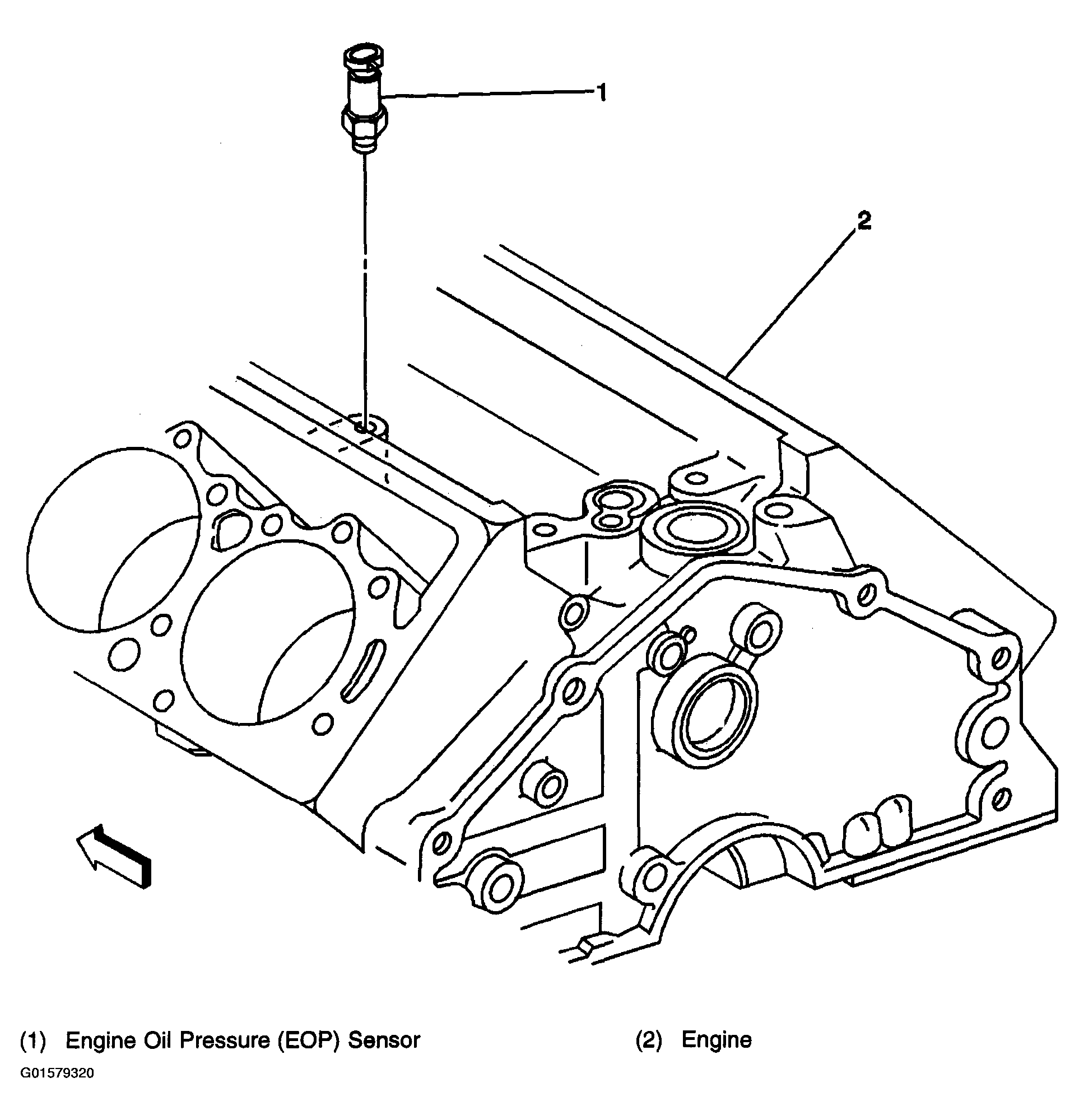

Fig 7: Engine Oil Pressure (EOP) Sensor

G01579320

Courtesy of GENERAL MOTORS CORP.

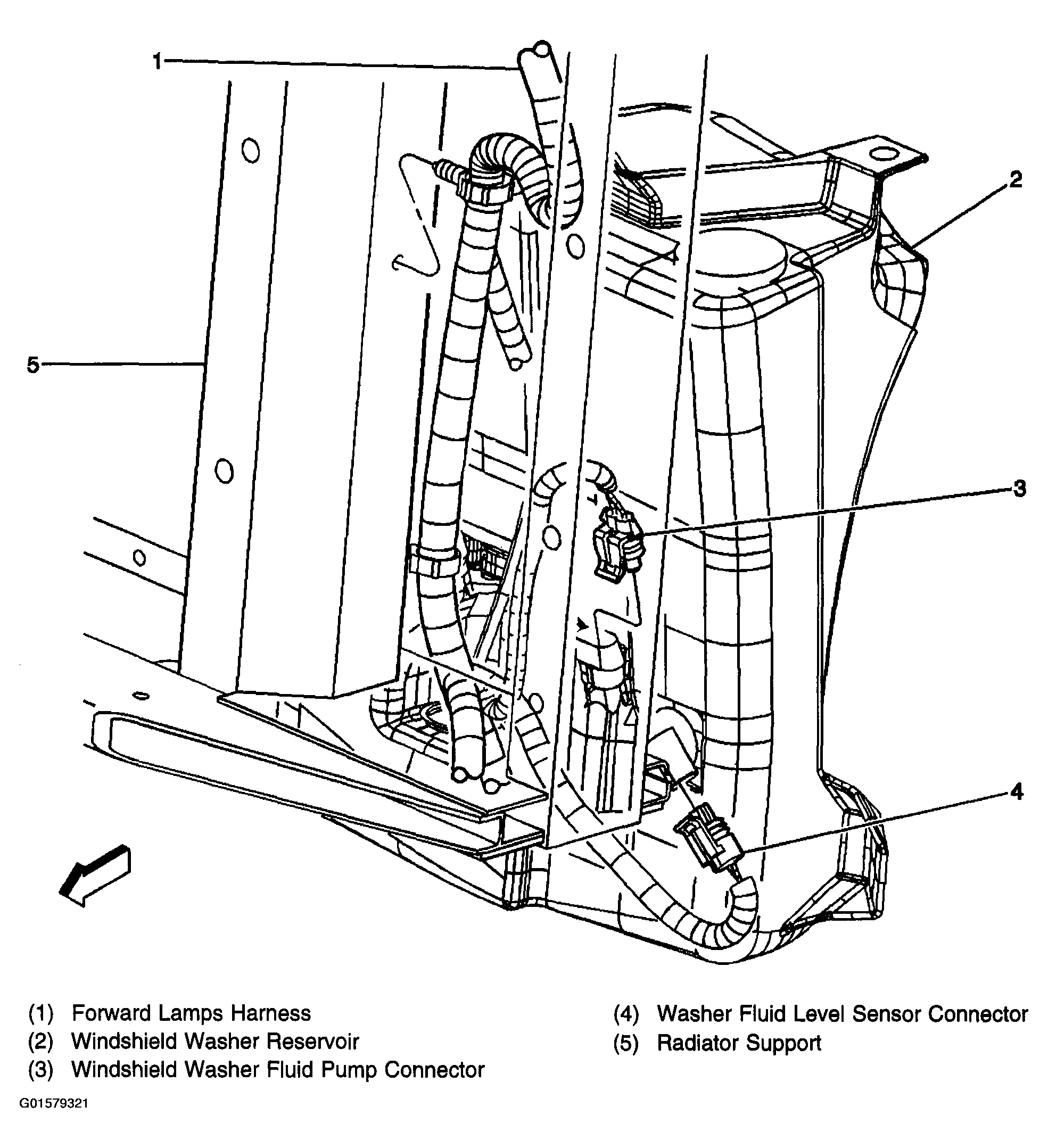

Fig 8: Windshield Washer Reservoir

G01579321

Courtesy of GENERAL MOTORS CORP.
