Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim panel. Refer to TRIM PANEL REPLACEMENT-INSTRUMENT PANEL (I/P) UPPER .
  2. Lower the headliner. Refer to HEADLINER REPLACEMENT .
  3. Disconnect the cables from the antenna base.
    IMPORTANT: Observe the routing of the cables.
  4. Remove the cable retainers from the roof and pillar.

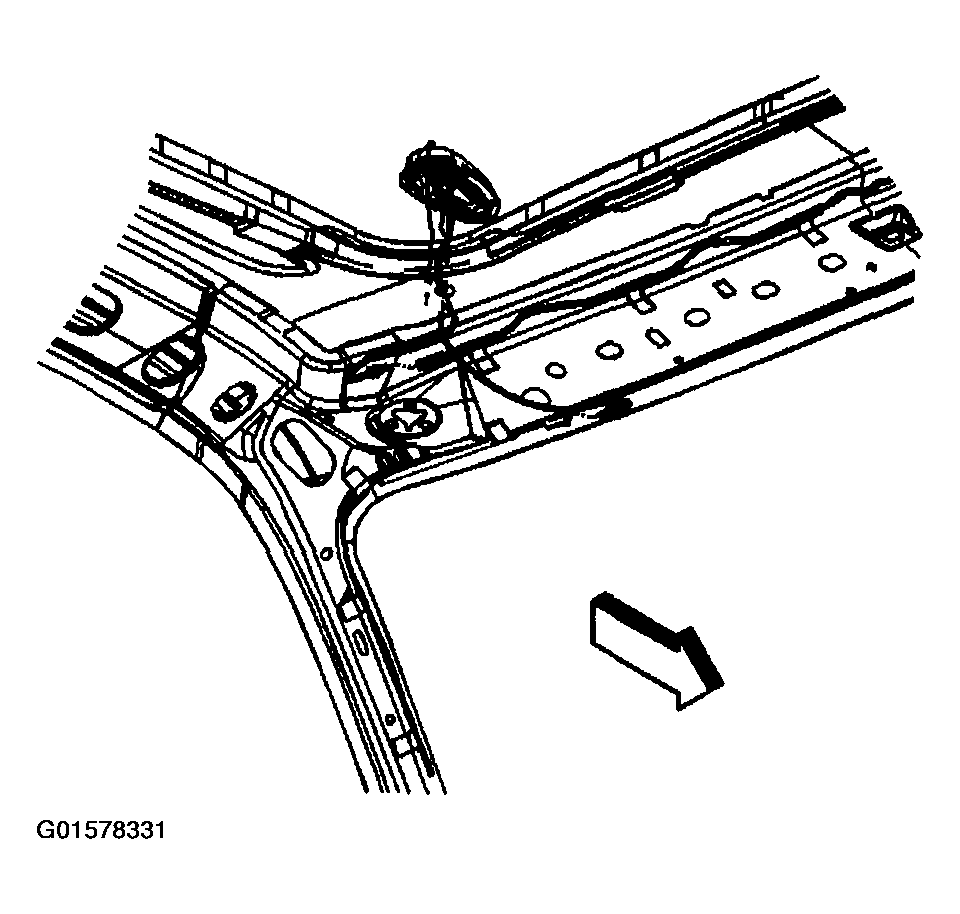

    Fig 1: Removing Cable Retainers
    G01578331Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the cable (3) from the module.

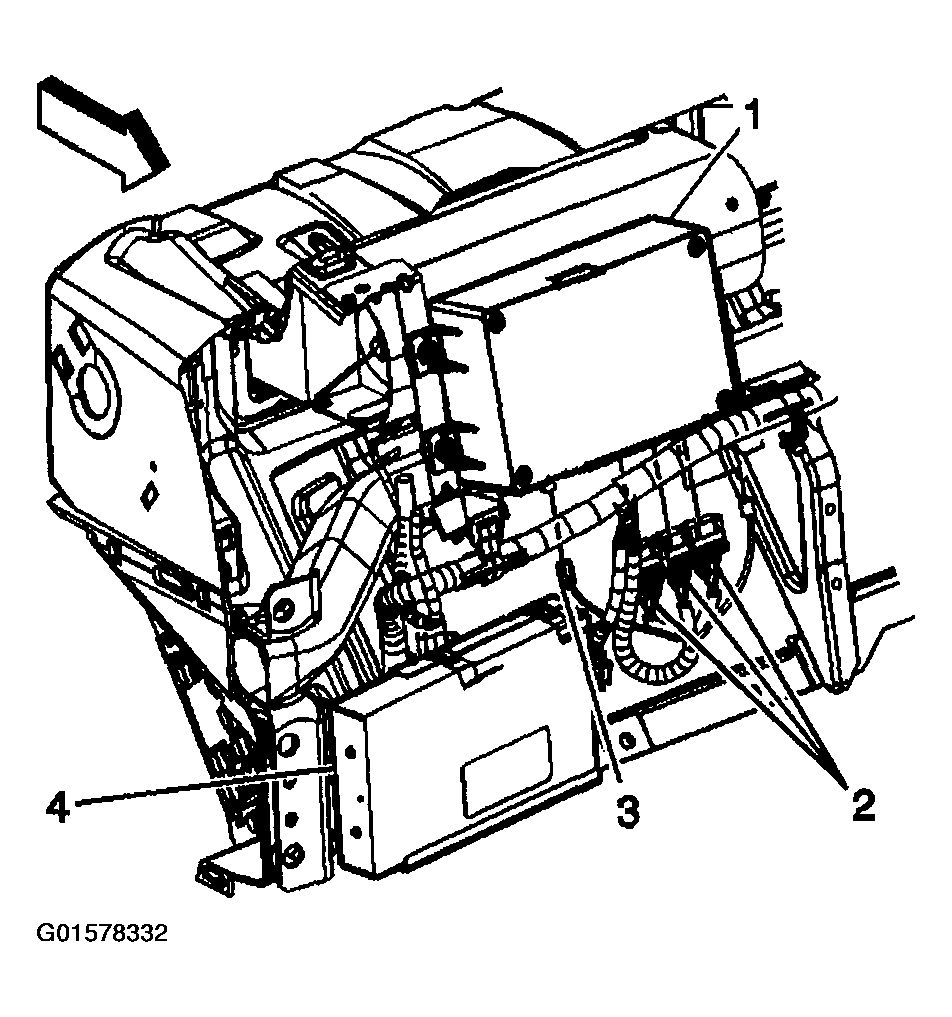

    Fig 2: Disconnecting Cable From Module
    G01578332Courtesy of GENERAL MOTORS CORP.
