Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cable retainers to the roof and pillar.
  2. Connect the cables (3) to the module.

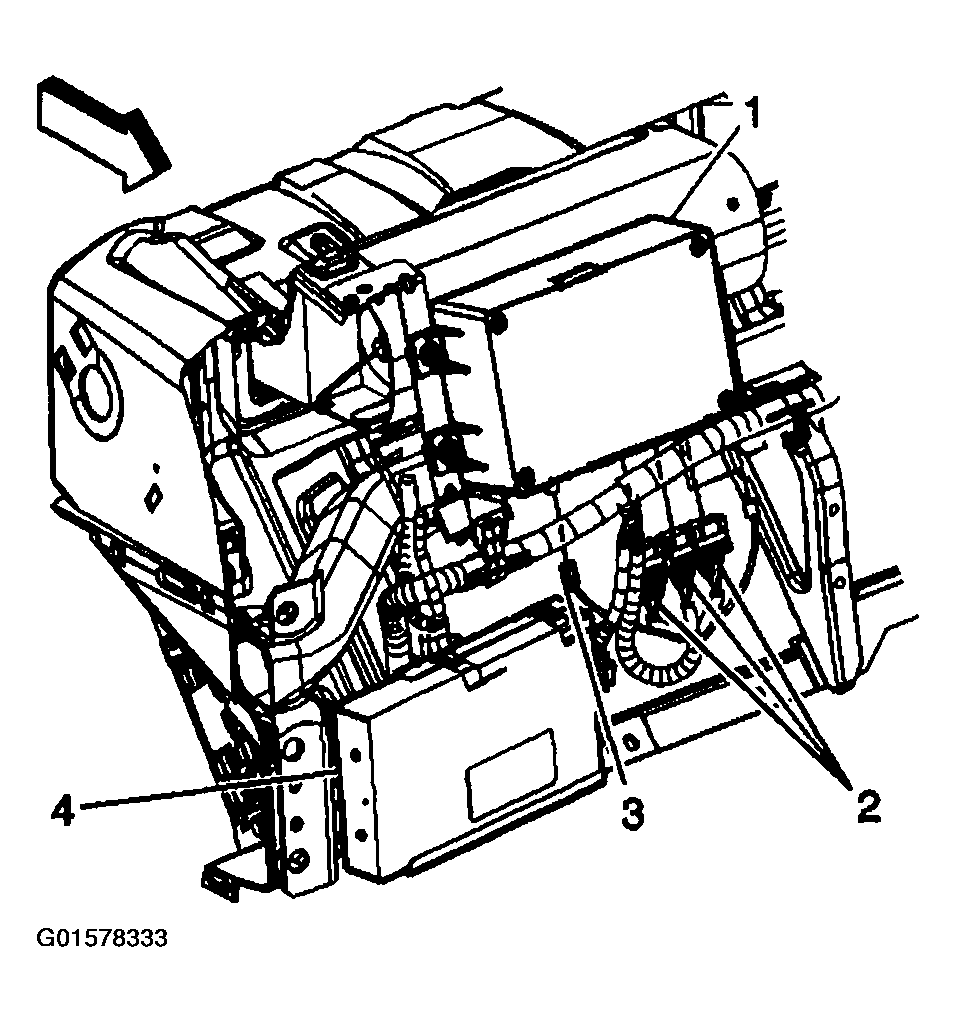

    Fig 1: Connecting Cables To Module
    G01578333Courtesy of GENERAL MOTORS CORP.
  3. Connect the cables to the antenna base.
    IMPORTANT: Ensure the cables are routed properly and there is no sharp bends in the cables.
  4. Install the headliner. Refer to HEADLINER REPLACEMENT .
  5. Install the I/P trim panel. Refer to TRIM PANEL REPLACEMENT-INSTRUMENT PANEL (I/P) UPPER .

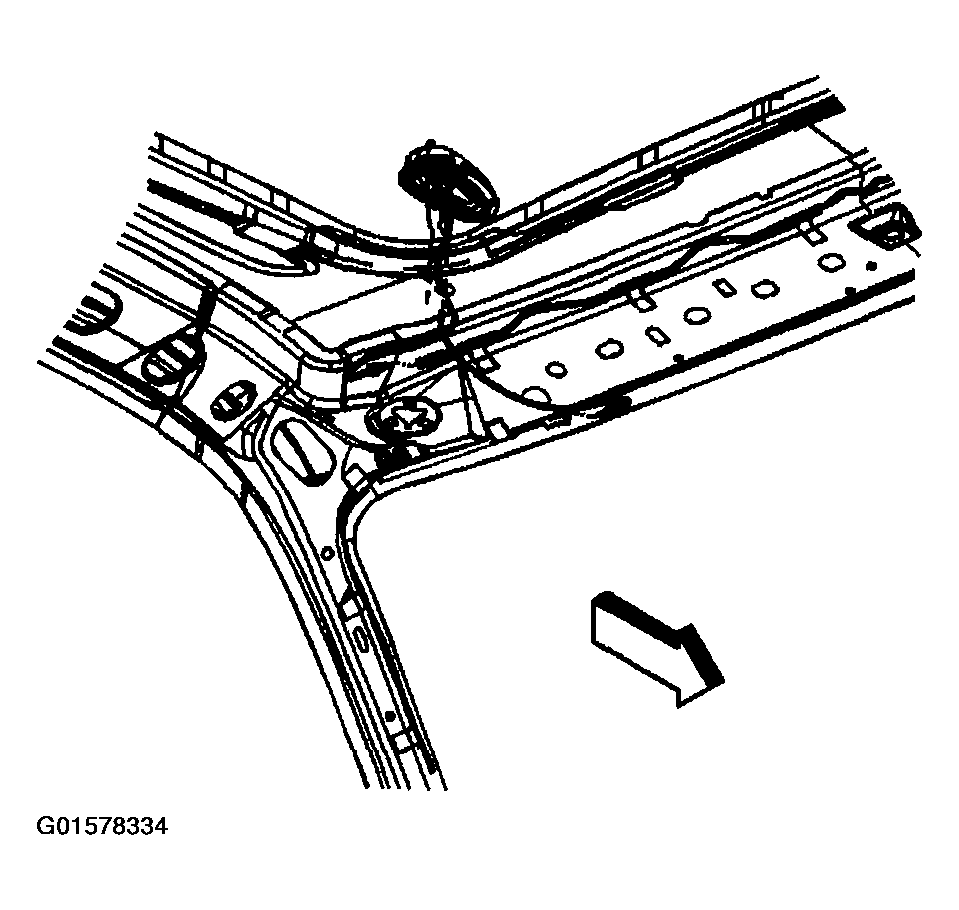

    Fig 2: Connecting Cables To Antenna Base
    G01578334Courtesy of GENERAL MOTORS CORP.
